Rotational printing of all types of cylindrical products.

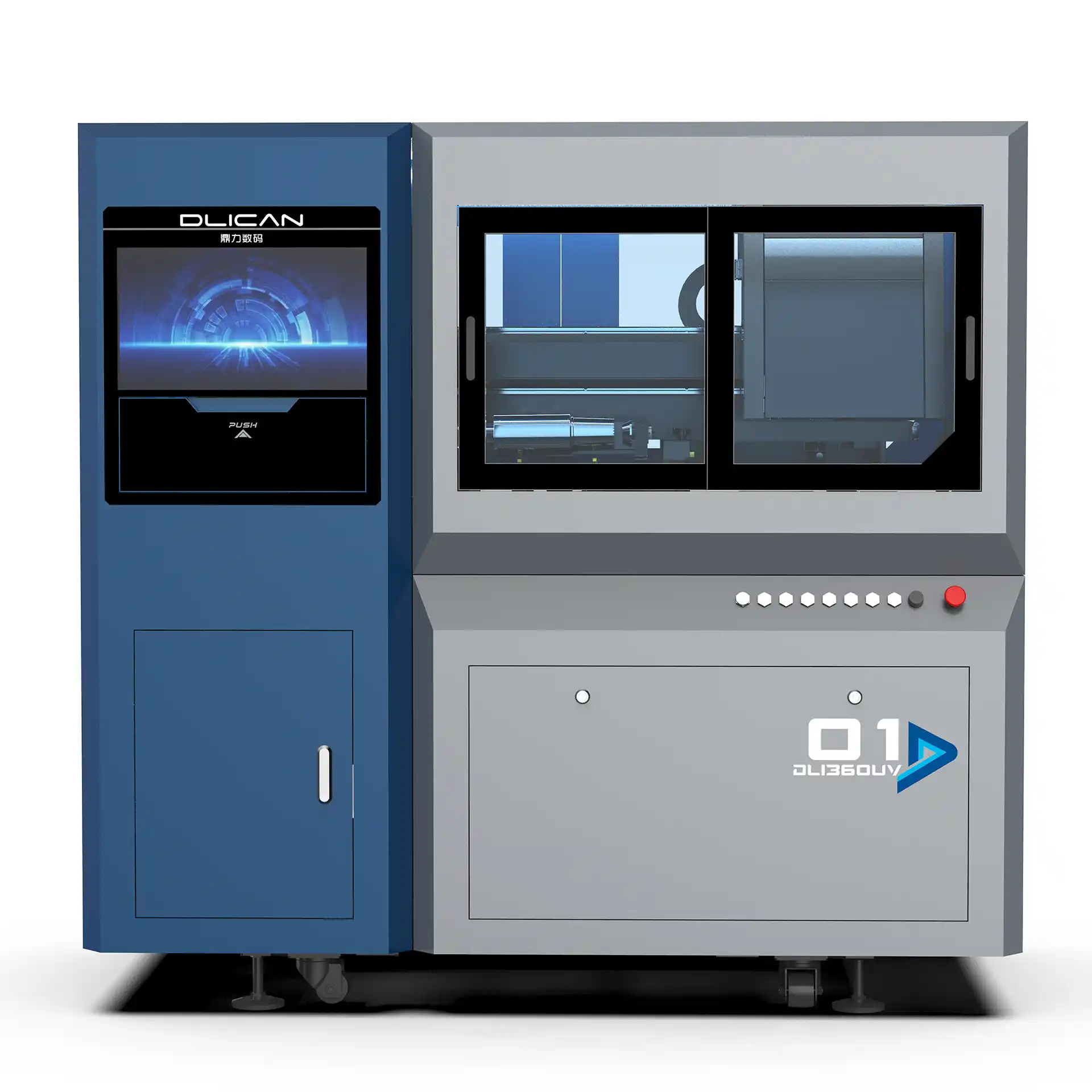

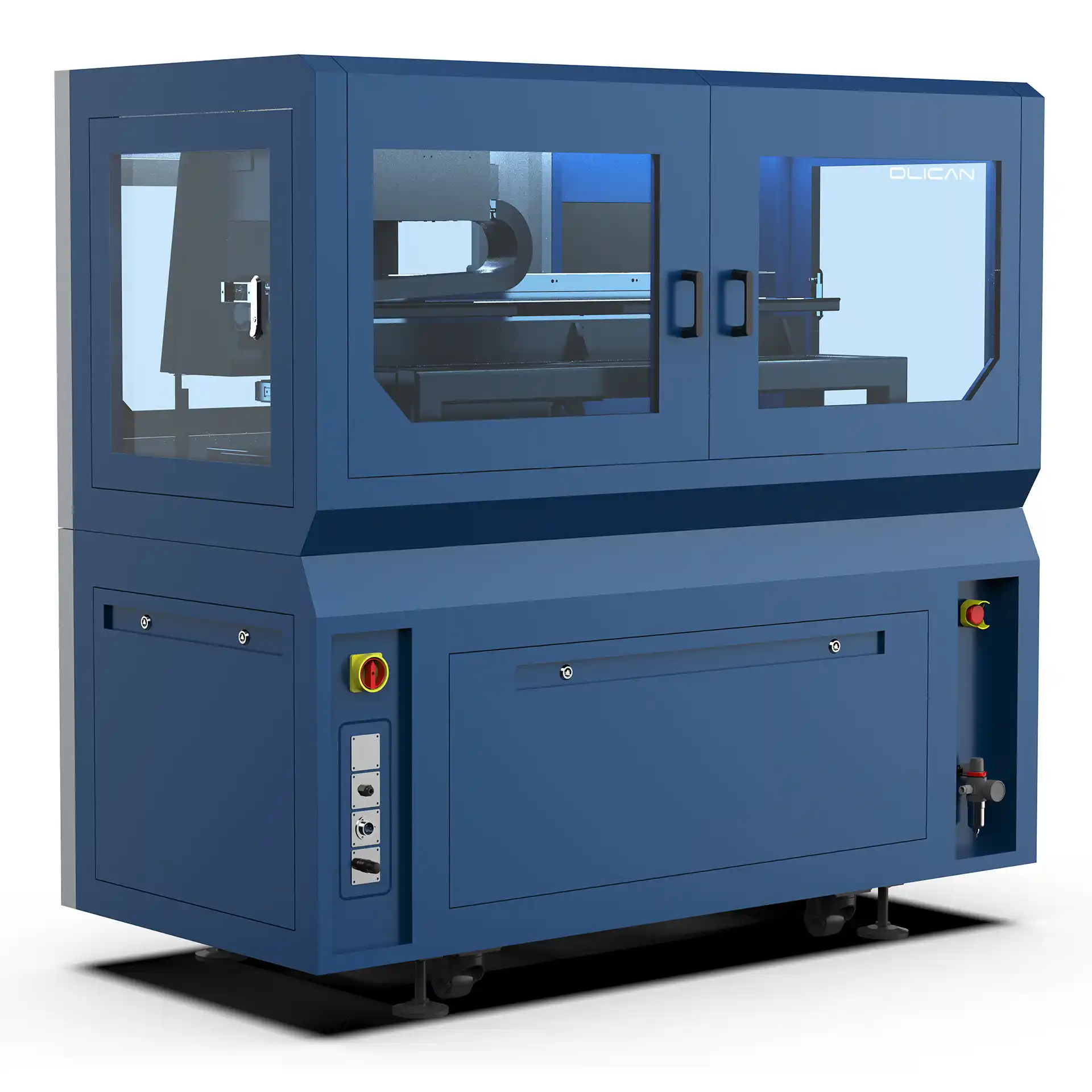

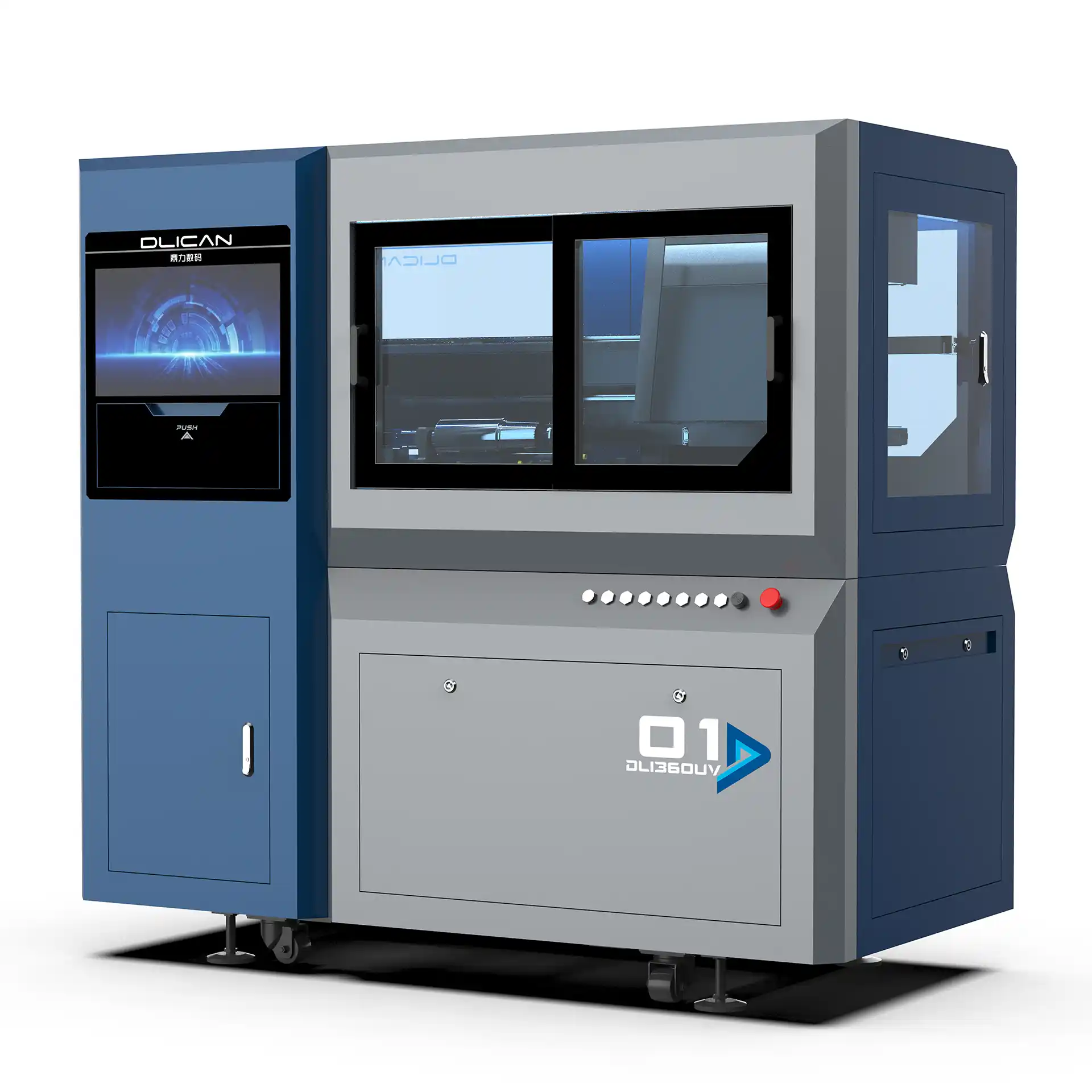

DL360 UV01
DL360 UV01

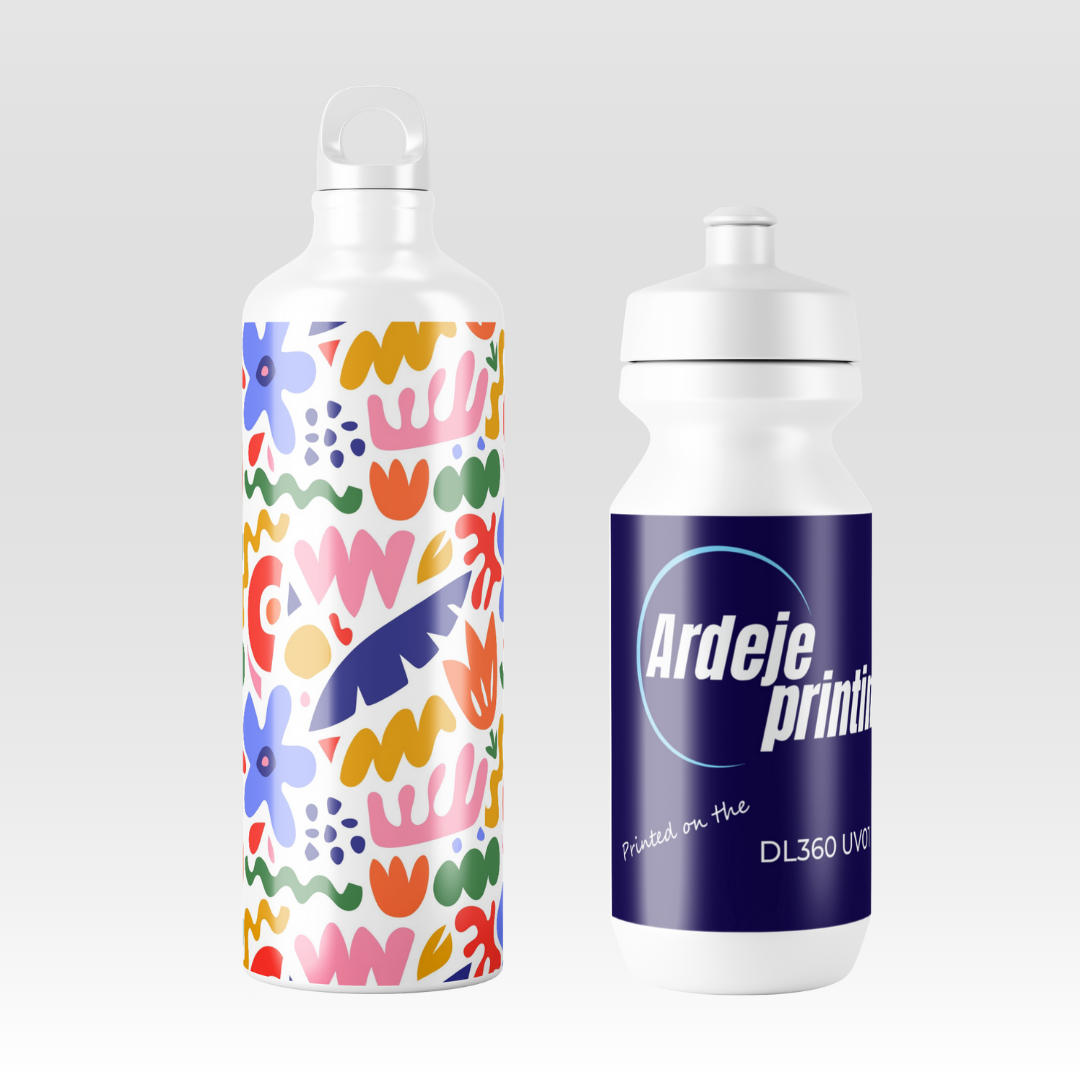

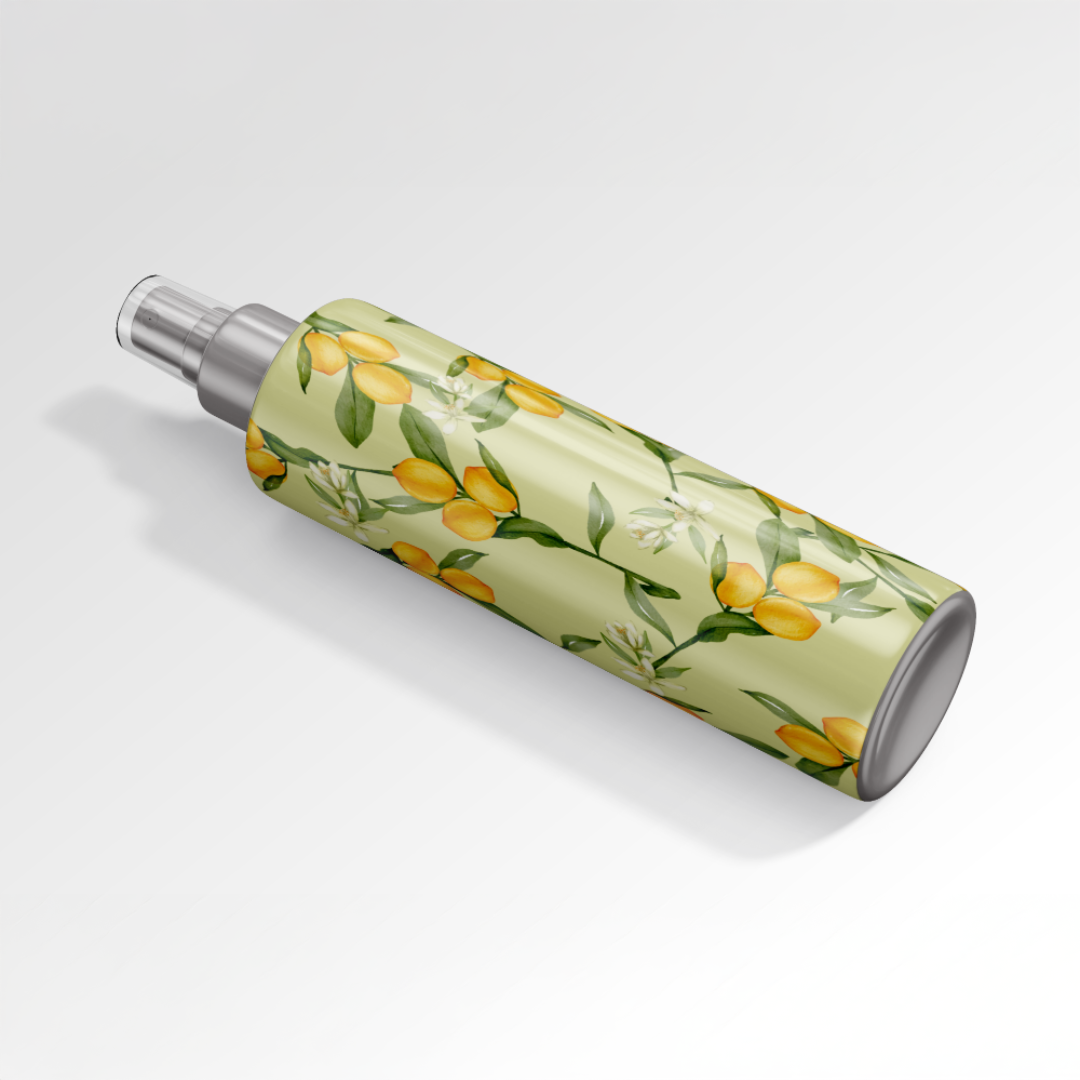

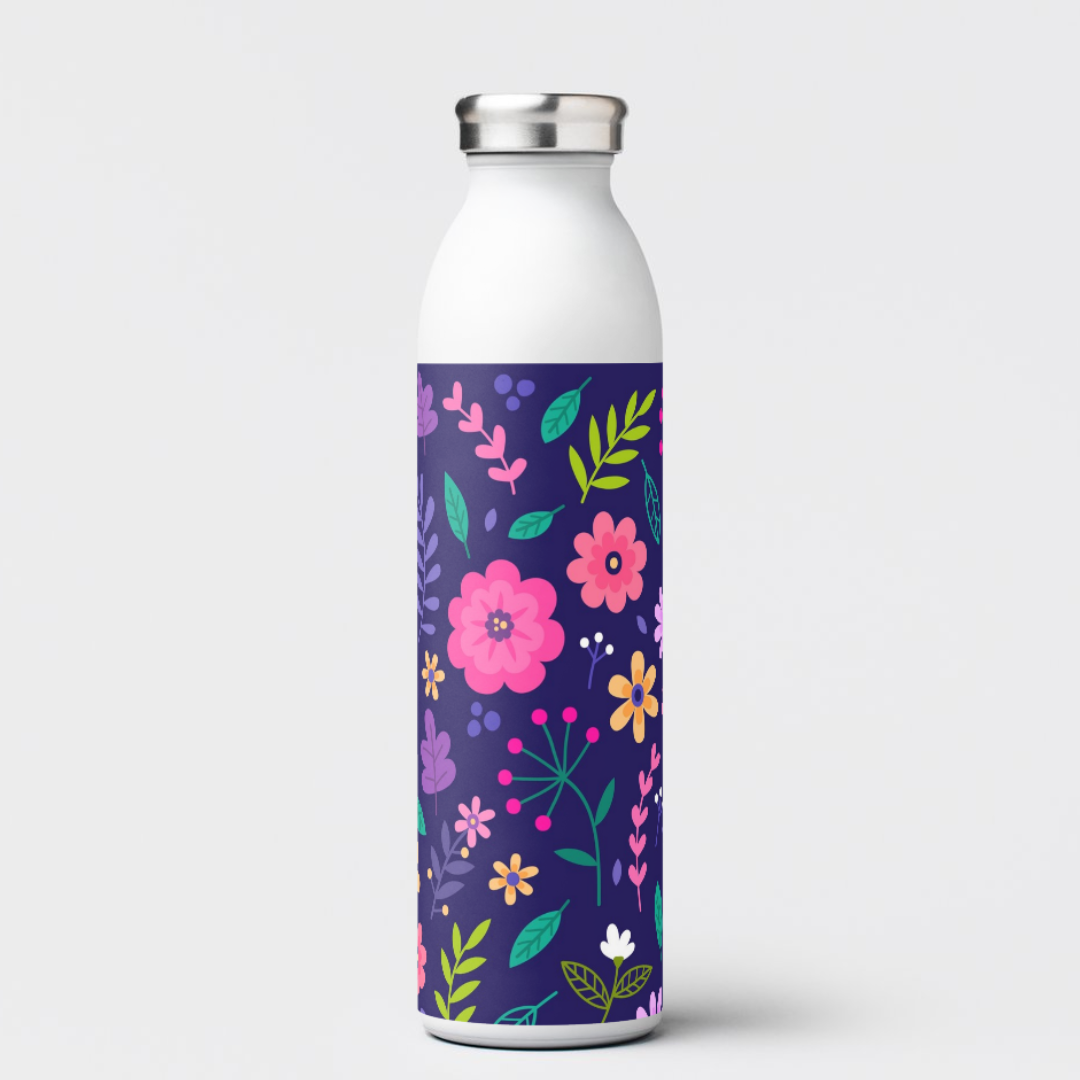

This rotary digital printer is designed to personalise a wide range of cylindrical products such as bottles, flasks, tubes and vials.
Compatible with a range of materials including metal, glass, PP and PC, it uses UV-based inks: CMYK, white and varnish to deliver accurate, long-lasting prints with a resolution of up to 3600 dpi.
A good compromise between quality and price for a first investment.
Technical specifications
| Min/max object length | From 50 to 120 mm |
| Min/max object diameter | From 10 to 270 mm |
| Object type | Cylindrical |
| Material type | All kinds of metals, glass, pp, pc, etc. |
| Type of ink | UV-based : White, CMYK, Varnish |
| Number of printheads | 1 to 4 Ricoh G5i printheads Can be customised |
| Resolution | Max. 3600 dpi / Standard mode: 600 x 1200 - 4 passes |
| Image format | PDF, TIFF, JPEG, Ai, EPS, BMP |
| Operating environment | Temperature: 18°C - 28°C / Humidity: 35 - 65 % |
| Energie | AC230V (+- 10%); 50 ≈ 60 Hz; P = 2 000 W |
| Dimensions | 1640 x 855 x 1 570 mm |
| Weight | 500 Kg |
