A UV rotary printer that will turn your head!

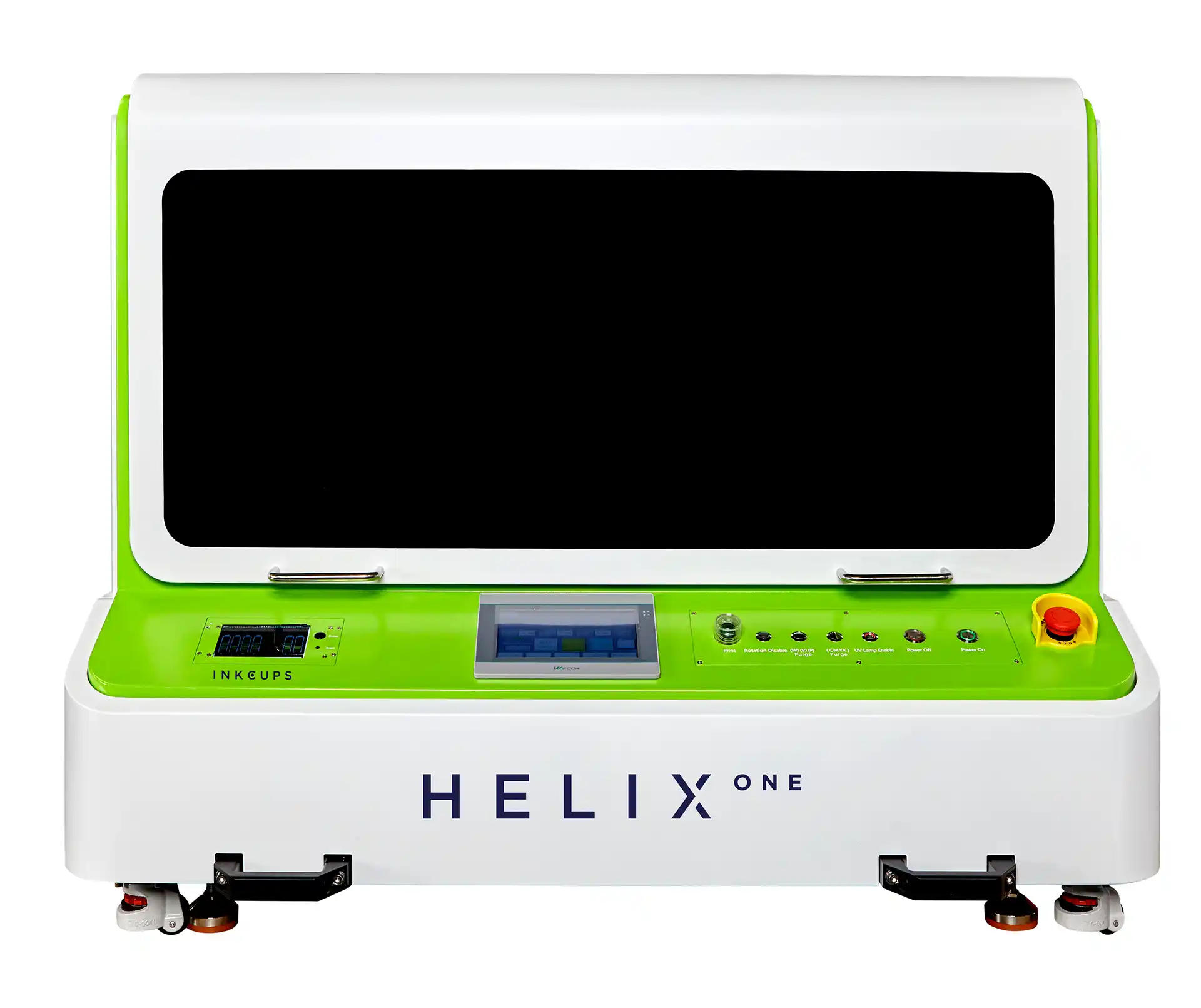

Helix One
Helix One is the only digital printer on the market that can decorate objects with complex geometries, such as conical cups, in high definition. An opportunity to diversify your offering and open up new markets.
Its software is easy to use, with an intuitive, ergonomic interface.
It also boasts advanced technologies:
- a fully automated maintenance station for easy servicing of your printer,
- a software-controlled UV curing unit.
With its automatic anamorphosis system, the Helix One automatically adjusts the image to the shape of the object to be decorated, delivering high-precision four-colour printing whether the object is cylindrical or conical.
| Min/max object length | from 51 to 305 mm |
| Min/max object diameter | from 45 to 120 mm |
| Object type | Conical, Cylindrical |
| Max. angle of inclination | 7° |
| Max image length | 220 mm |
| Material type | All kinds of metals, glass, pp, pc, ceramics, etc. |
| Type of ink | UV-based : White, CMYK, Varnish |
| Type of tank | Bottle |
| Number of printheads | 3 printheads |
| Resolution | 600 x 1200 dpi |
| Image format | Ai, EPS |
| Operating environment | Temperature: 10 - 30°C / Humidity: 50 - 70 % |
| Energie | 230 VAC |
| Dimensions | 1227 x 825 x 950 mm |
| Weight | 295 Kg |
| Options | Industrial storage cabinet, Fine droplet extraction system |
Options

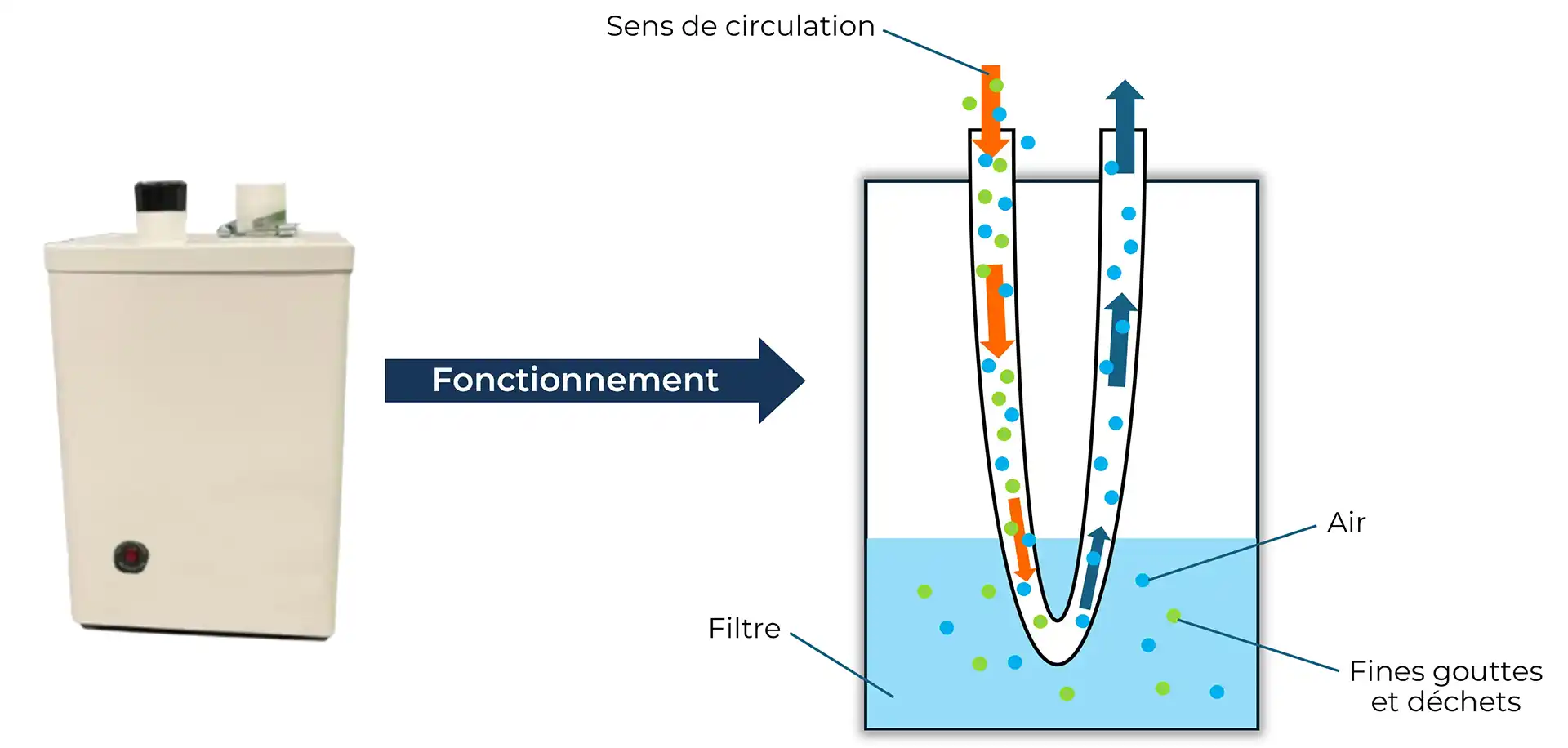

Fine droplet extraction system
| The fine droplet extraction system maintains a cleaner working environment by reducing the amount of airborne ink particles. |

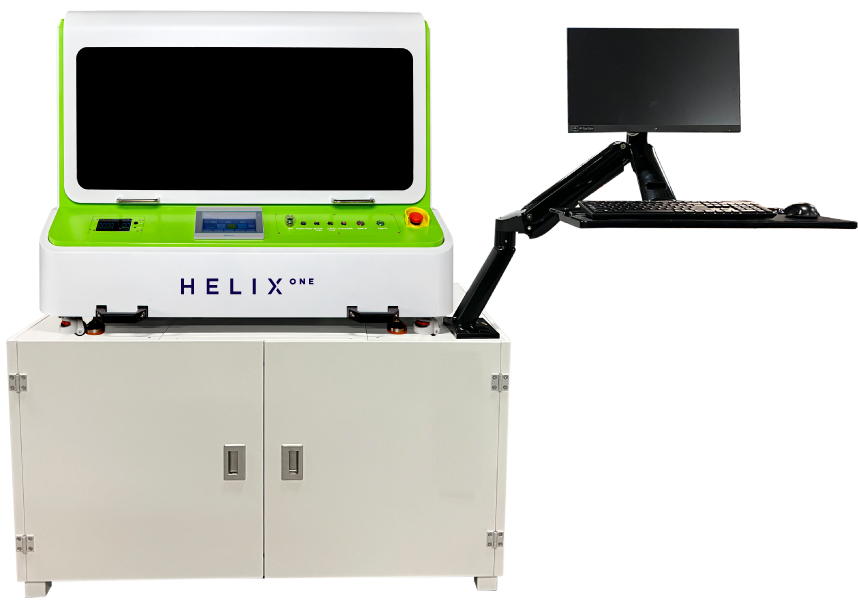

Industrial storage cabinet
| Combining robustness and mobility, this cabinet keeps your printer stable while making it easy to move. Its integrated storage space makes it easy to store ink and tools. |

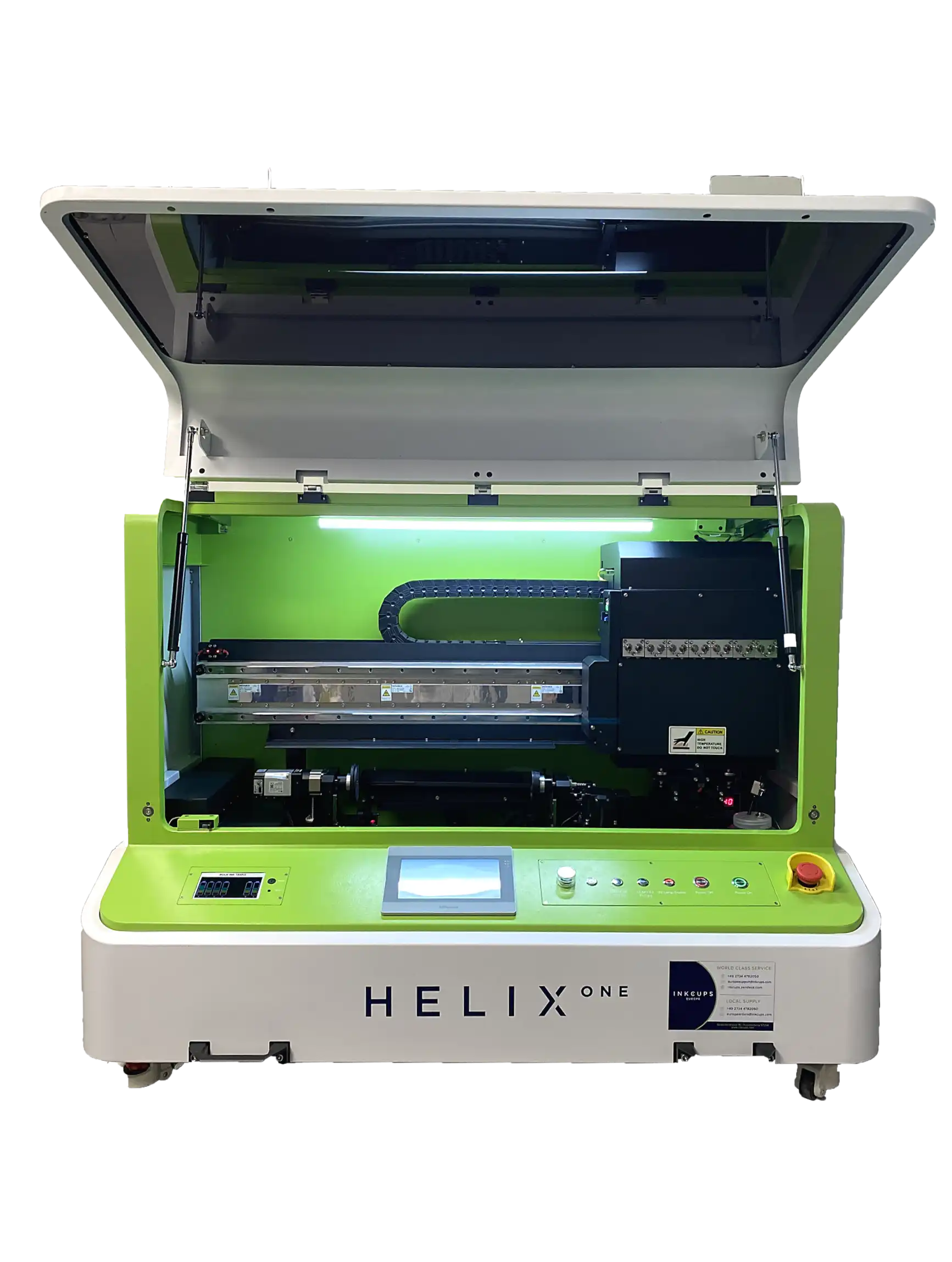

The Helix One is designed to accept all types of media. In fact, its axis of rotation incorporates a gripper enabling it to print:
→ Cylindrical and conical objects through 360°, up to 120 mm in diameter and 305 mm in length,

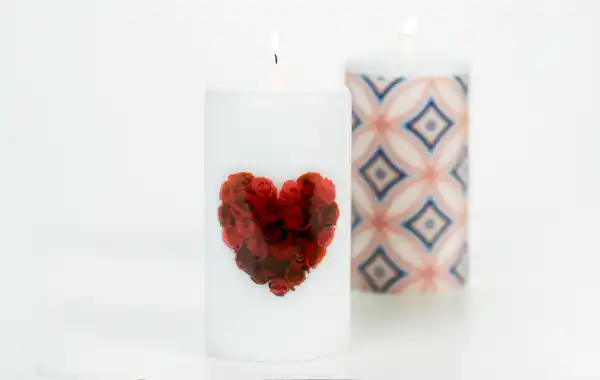

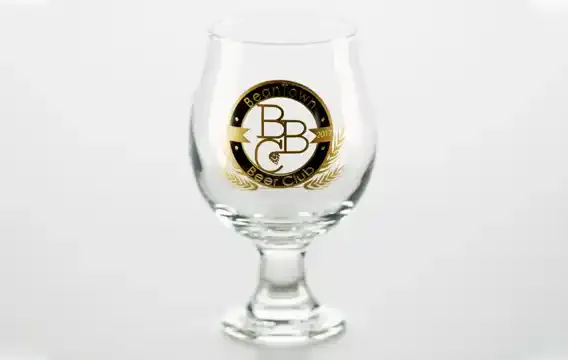

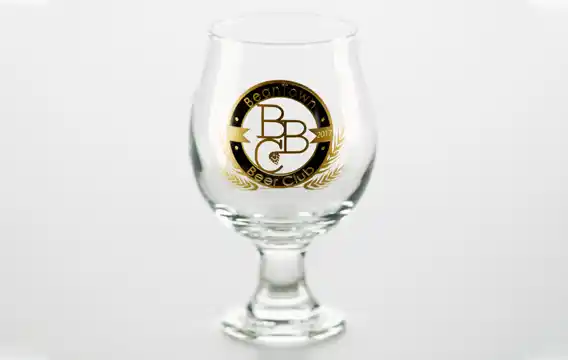

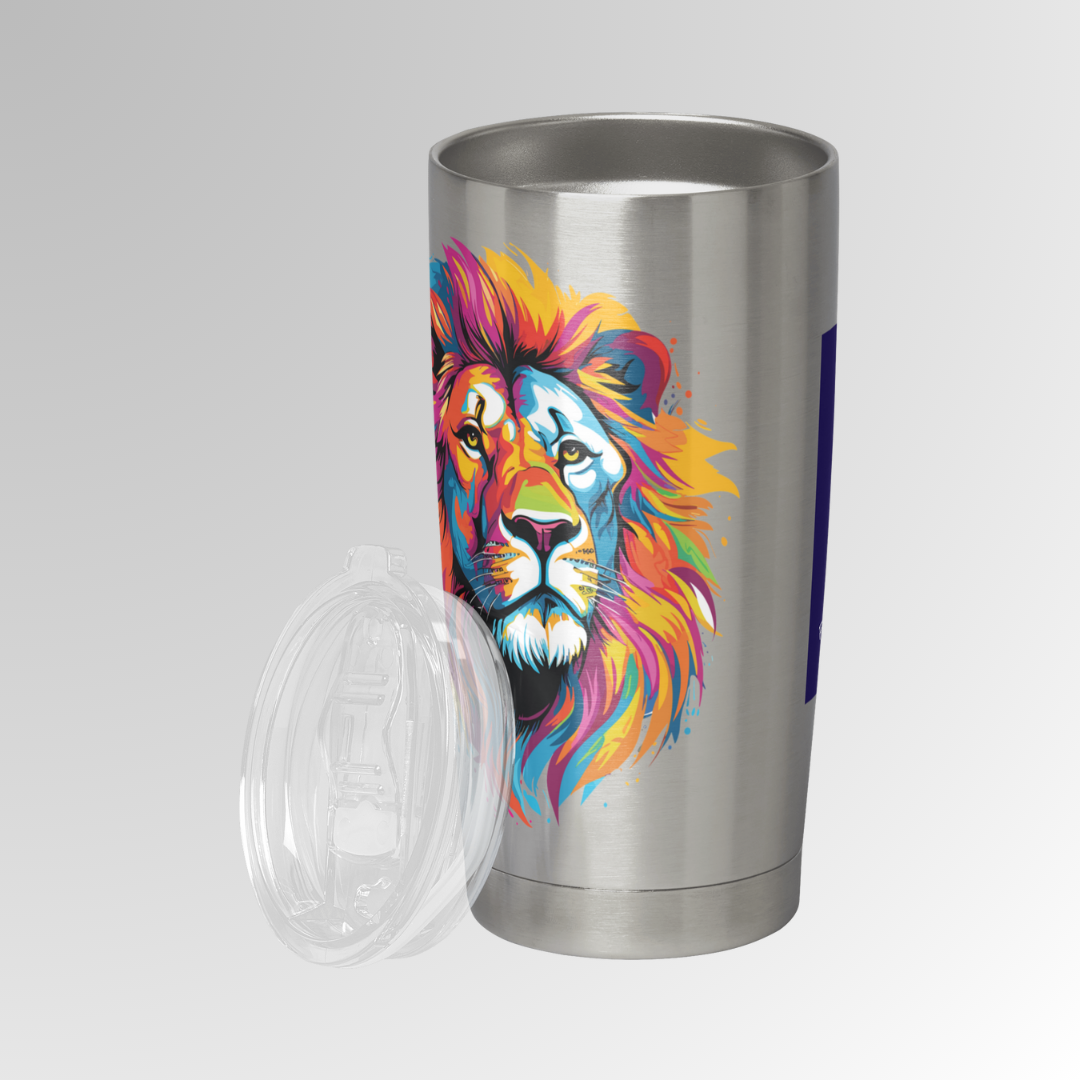

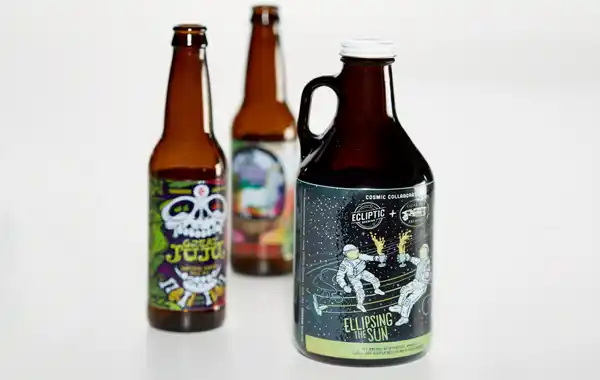

→ Heterogeneous materials such as glass, plastic, ceramic, stainless steel, metal, wood, etc.
