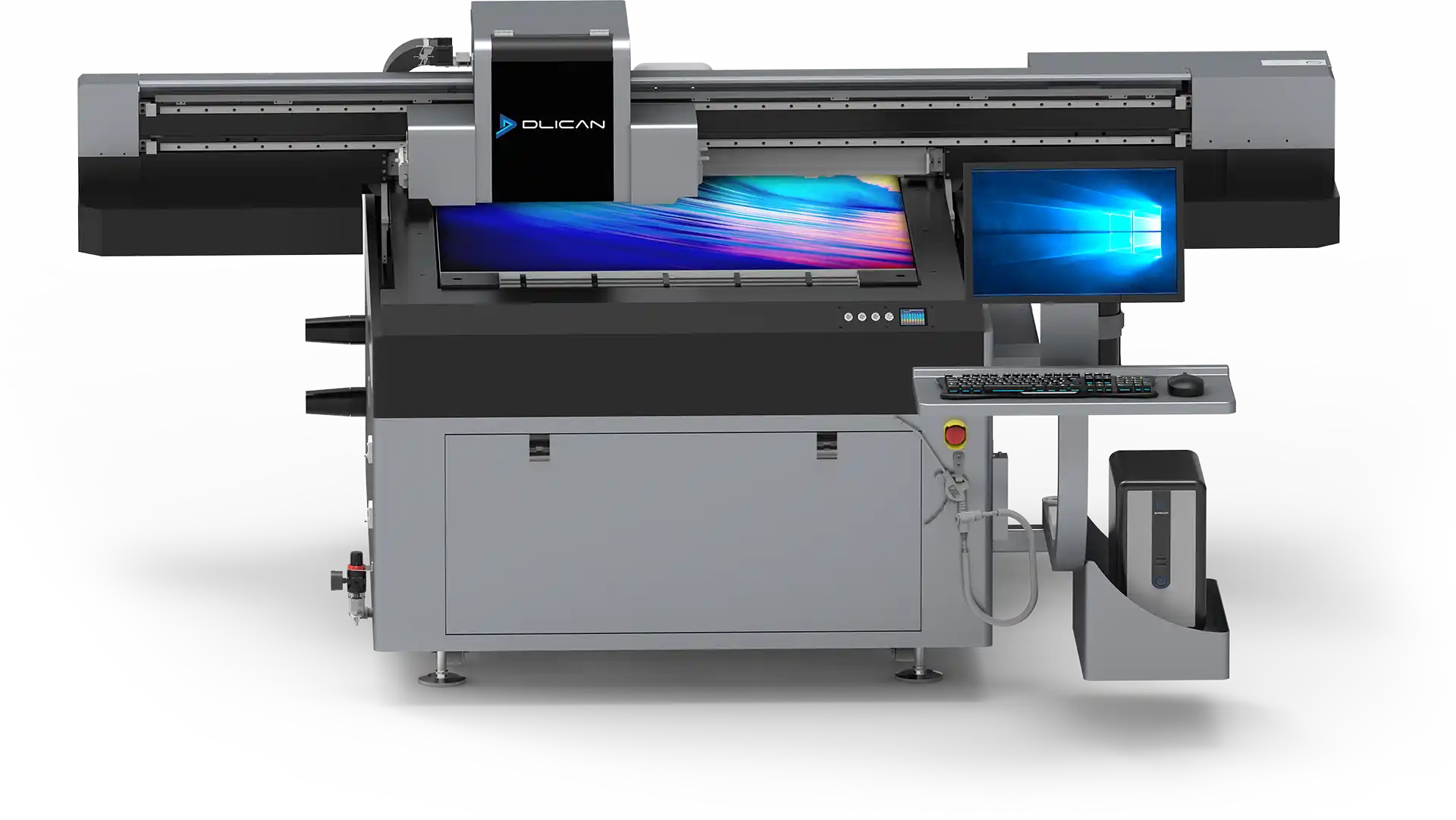

Compact, flexible 1 x 1 m UV flatbed printer.
DL 1010
The DL1010 UV flatbed printer is ideal for printing on a variety of substrates. Whether you're printing on rigid or flexible media, it guarantees crisp, long-lasting prints.
With a print area of 1 metre by 1 metre, its compact size makes it ideal for workshops or small workspaces.
Its customisable print height of up to 350 mm offers greater flexibility for printing on objects of different thicknesses, from flat substrates to larger parts.
Its optional antistatic blower bar cleans the object to be printed and neutralises static electricity on its surface.
The printer is equipped with a module specially designed for rotary printing on cylinders.
The scanner option detects the position of objects placed randomly on the printing plate and then adapts the images to be printed according to the orientation of each object.
| Print surface | 1000 x 1000 mm |
| Z height | 0 - 350 mm |
| Type of axis | Belt linear axis |
| Material type | Any type of support |
| Type of ink | UV-based : White, CMYK, LC, LM, Varnish + Support for multiple colour combinations |
| Type of tank | Continuous ink supply / 550 ml ink tank / secondary tank at constant temperature and pressure / automatic white agitator |
| Number of printheads | 1 to 4 Epson i1600/i1300 heads |
| Resolution | 720*900 dpi / 720*1200 dpi / 720*1800 dpi |
| Image format | PDF, TIFF, JPEG, EPS, BMP |
| Operating environment | Temperature : 20 - 30°C / Humidity : 40 - 70 % |
| Energie | AC230 V (+- 10%) ; 50 Hz ; P = 6000 W |
| Dimensions | 2829 x 1700 x 1200 mm |
| Weight | 650 Kg |
| Options | Rotation, Scanner, Anti-static bar, Immaterial barrier, Z height, Caldera |
