1.2 x 1.5 m flatbed printer, a compact and versatile solution for large-format printing.

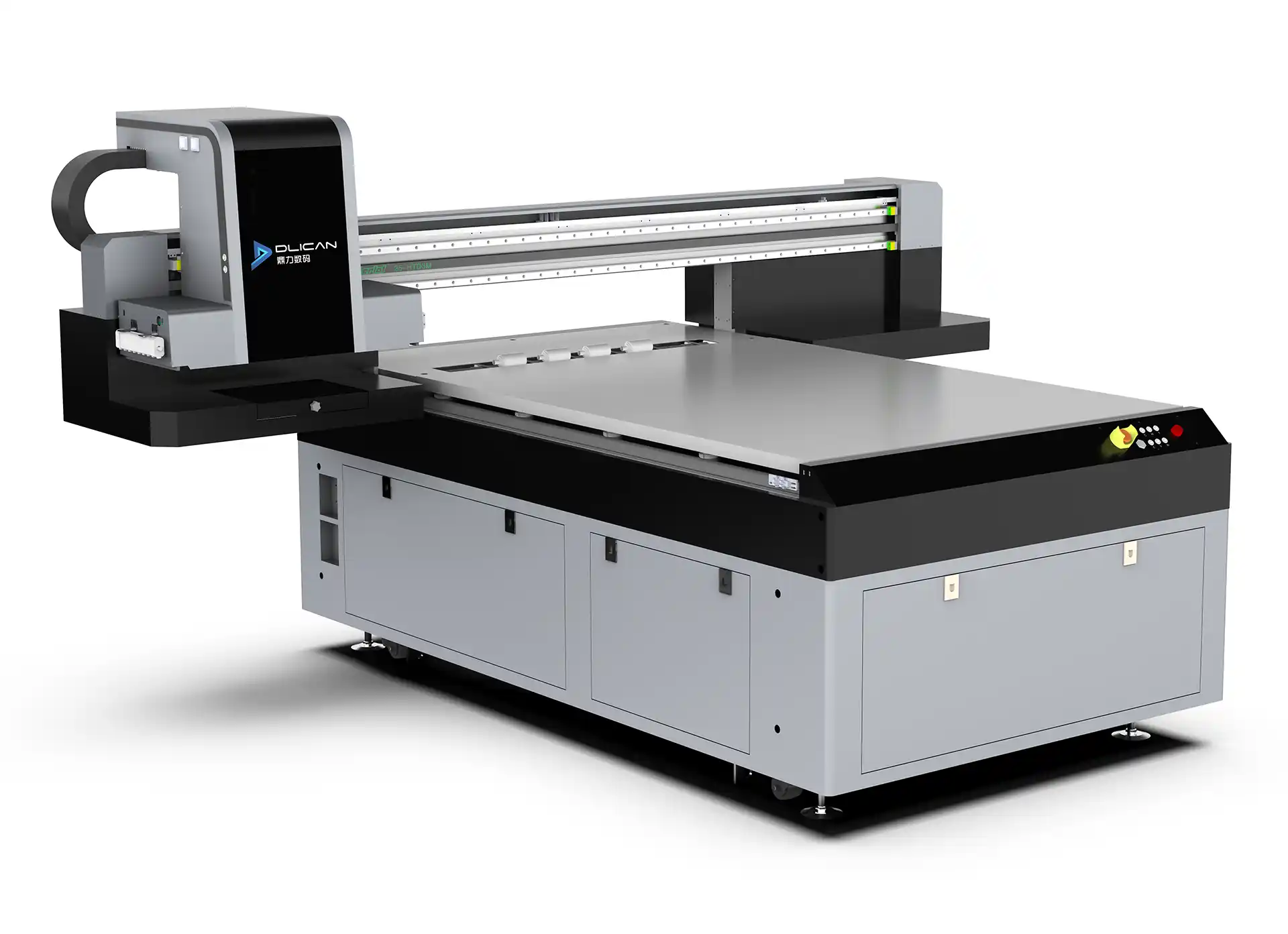

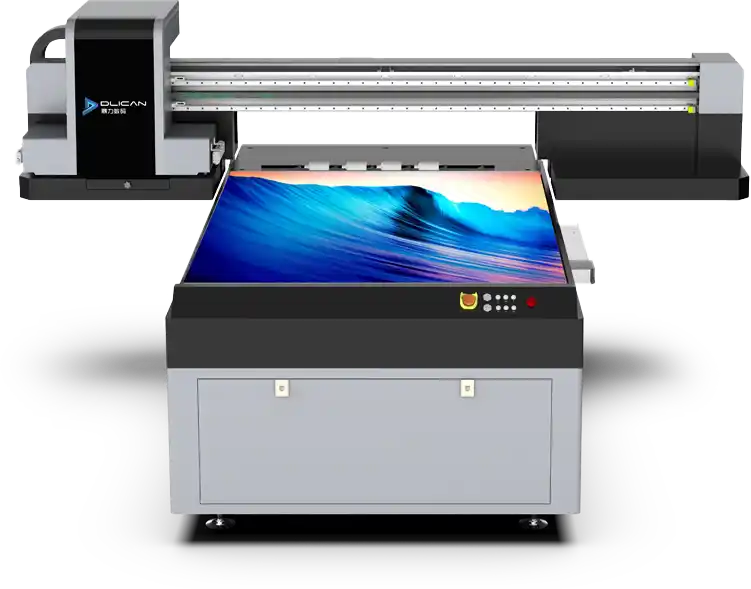

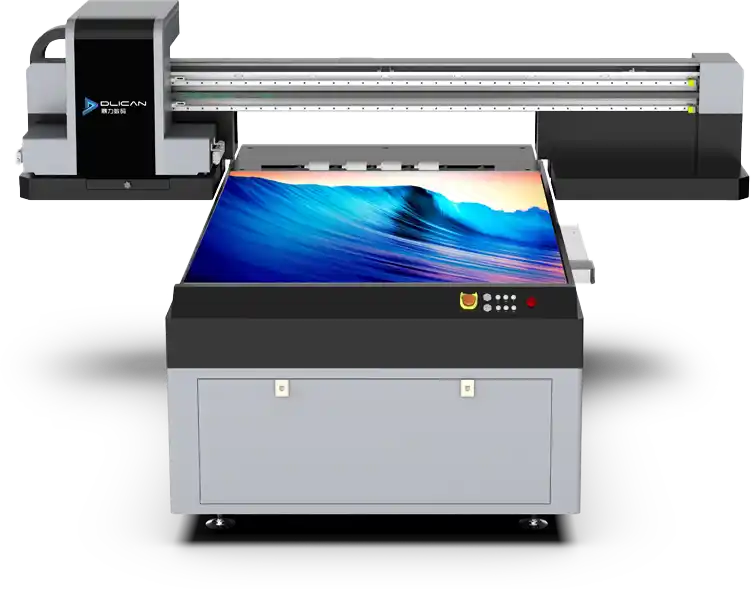

DL 1215
DL 1215
The DL 1215 UV flatbed printer is ideal for printing on a variety of media. Whether you're printing on rigid or flexible media, it guarantees crisp, durable prints.
With a print area of 1.2 by 1.5 metres, its compact size makes it ideal for workshops or small workspaces.
Its customisable print height of up to 300 mm offers greater flexibility for printing on objects of different thicknesses, from flat substrates to larger parts.
The scanner option detects the position of objects placed randomly on the printing plate and then adapts the images to be printed according to the orientation of each object.
Technical specifications
| Print surface | 1200 x 1500 mm |
| Z height | 0 - 300 mm |
| Type of axis | Magnetic linear axis |
| Material type | Any type of support |
| Type of ink | UV-based : White, CMYK, LC, LM, Varnish |
| Type of tank | Continuous ink supply / Volume: 2000 ml / intelligent ink agitation |
| Number of printheads | 1 to 4 Ricoh G5i / Epson i3200 printheads |
| Resolution | 720*600 dpi / 720*900 dpi / 720*1200 dpi |
| Image format | PDF, TIFF, JPEG, BMP |
| Operating environment | Temperature: 20°C - 30°C / Humidity: 40 - 70 % |
| Energie | AC230 V (+- 10%) ; 50 Hz ; P = 6000 W |
| Dimensions | 3071 mm x 2260 mm x 1500 mm |
| Weight | 800 Kg |
| Options | Rotation, Scanner, Anti-static bar, Immaterial barrier, Z height, Caldera |
Print speed
| Type of printhead | 4 Pass | 6 Pass | 8 Pass |
| Ricoh Gen5i | 12 m²/h | 8 m²/h | 6 m²/h |
| Epson i3200 | 16 m²/h | 11 m²/h | 8 m²/h |
| Ricoh Gen5 | 23,7 m²/h | 16,34 m²/h | 12,65 m²/h |
| Ricoh Gen6 | 28,4 m²/h | 20,1 m²/h | 15,5 m²/h |
