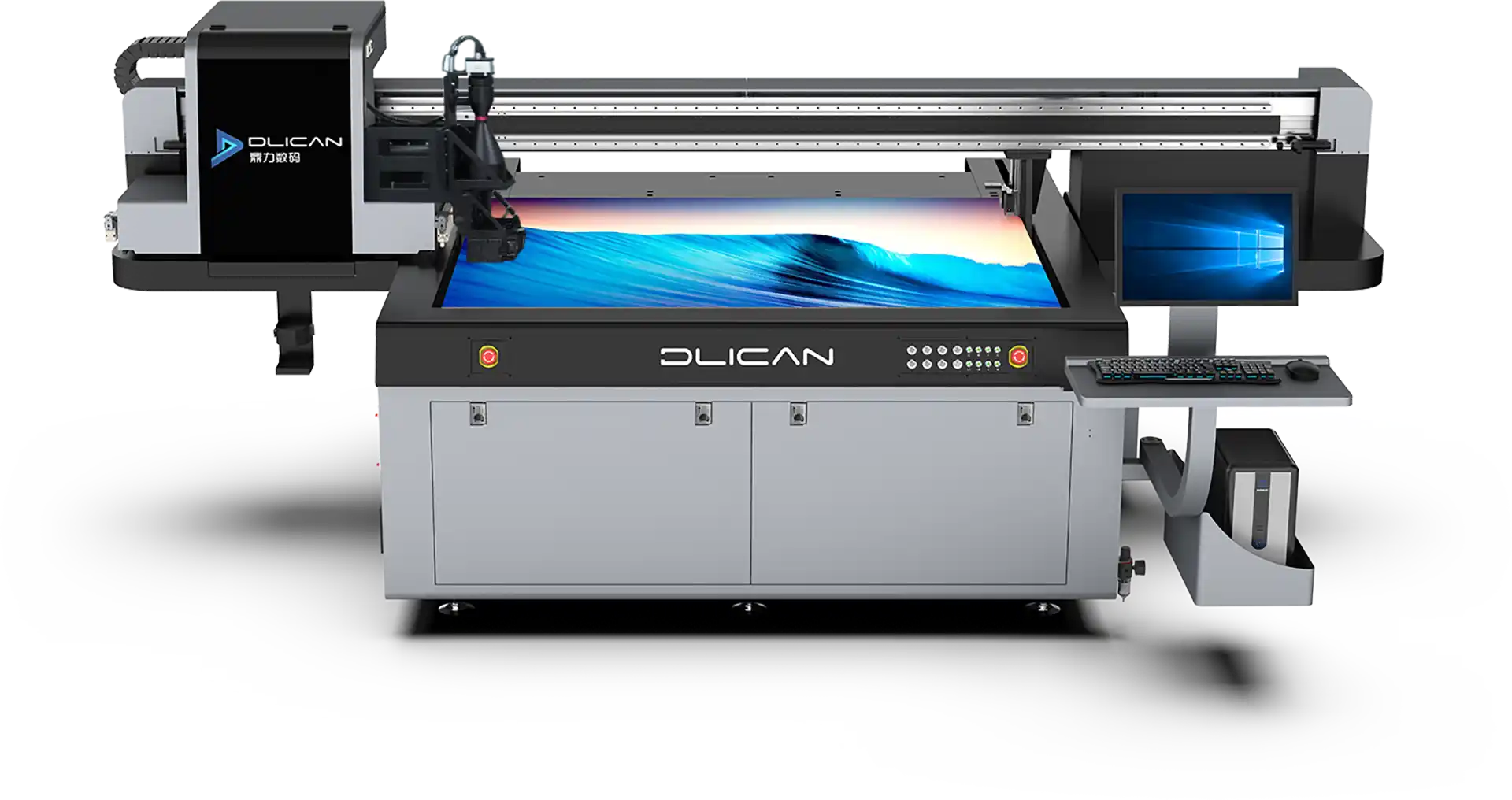

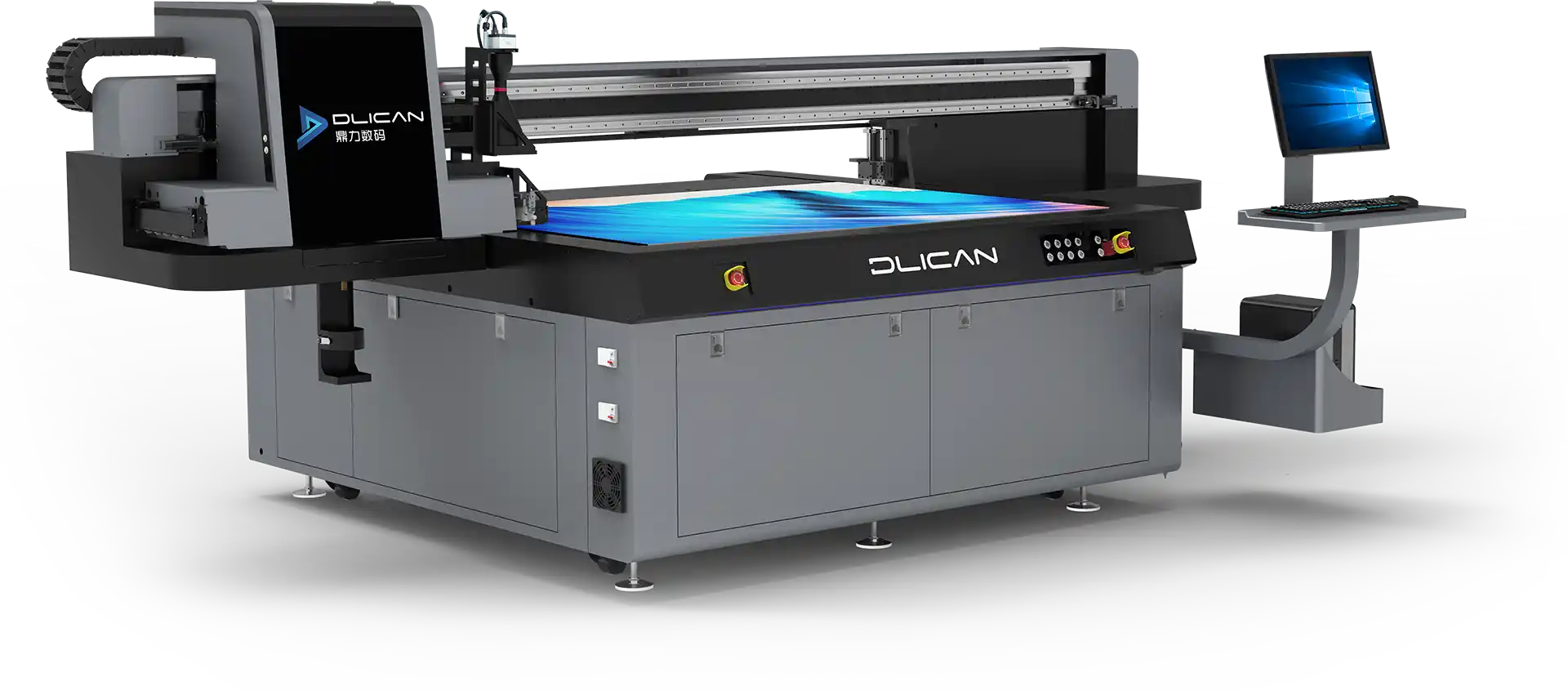

Professional UV flatbed printer 1.6 x 1.2 m for all types of materials.
DL 1612
DL 1612
The DL 1016 UV flatbed printer is ideal for printing on a variety of media. Whether you're printing on rigid or flexible media, it guarantees crisp, durable prints.
With a print area of 1 by 1.6 metres, its compact size makes it ideal for workshops or small workspaces.
Its customisable print height of up to 300 mm offers greater flexibility for printing on objects of different thicknesses, from flat substrates to larger parts.
The scanner option detects the position of objects placed randomly on the printing plate and then adapts the images to be printed according to the orientation of each object.
Technical specifications
| Print surface | 1600 x 1200 mm |
| Z height | 0 - 300 mm |
| Type of axis | Magnetic linear axis |
| Material type | Any type of support |
| Type of ink | UV-based : White, CMYK, LC, LM, Varnish + Support for multiple colour combinations |
| Type of tank | Continuous ink supply / Volume: 2000 ml / intelligent ink agitation |
| Number of printheads | 2 to 12 heads Ricoh G5 / G6 - Epson i1600 / i3200 |
| Resolution | 720*900 dpi / 720*1200 dpi / 720*1800 dpi |
| Image format | PDF, TIFF, JPEG, EPS, BMP |
| Operating environment | Temperature: 20 - 30°C / Humidity: 40 - 70 % |
| Energie | AC230 V (+- 10%) ; 50 Hz ; P = 10000 W |
| Dimensions | 3690 x 2080 x 1450 mm |
| Weight | 1450 Kg |
| Options | Scanner, Anti-static bar, Immaterial barrier, Z height, Caldera |
Print speed
| Type of printhead | 4 Pass | 6 Pass | 8 Pass |
| Single row Ricoh G5 | 27 m²/h | 18 m²/h | 14 m²/h |
| Single row Ricoh G6 maglev | 35 m²/h | 24,63 m²/h | 18 m²/h |
| Double row Ricoh G5 | 42 m²/h | 30 m²/h | 21 m²/h |
| Double row Ricoh Gen6 maglev | 52 m²/h | 39 m²/h | 33 m²/h |
