High-definition flatbed, poster and banner printing.
DL 3325
DL 3325

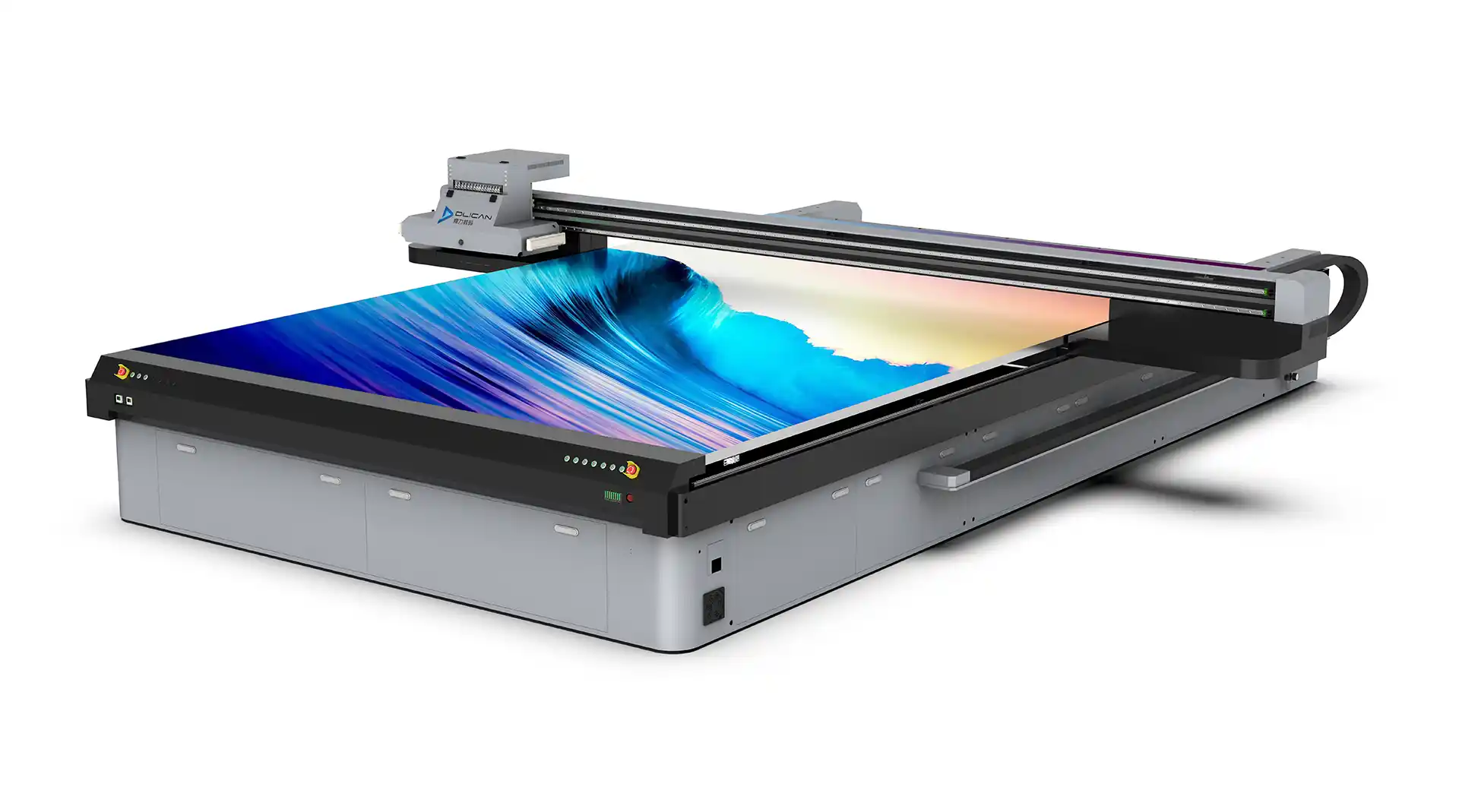

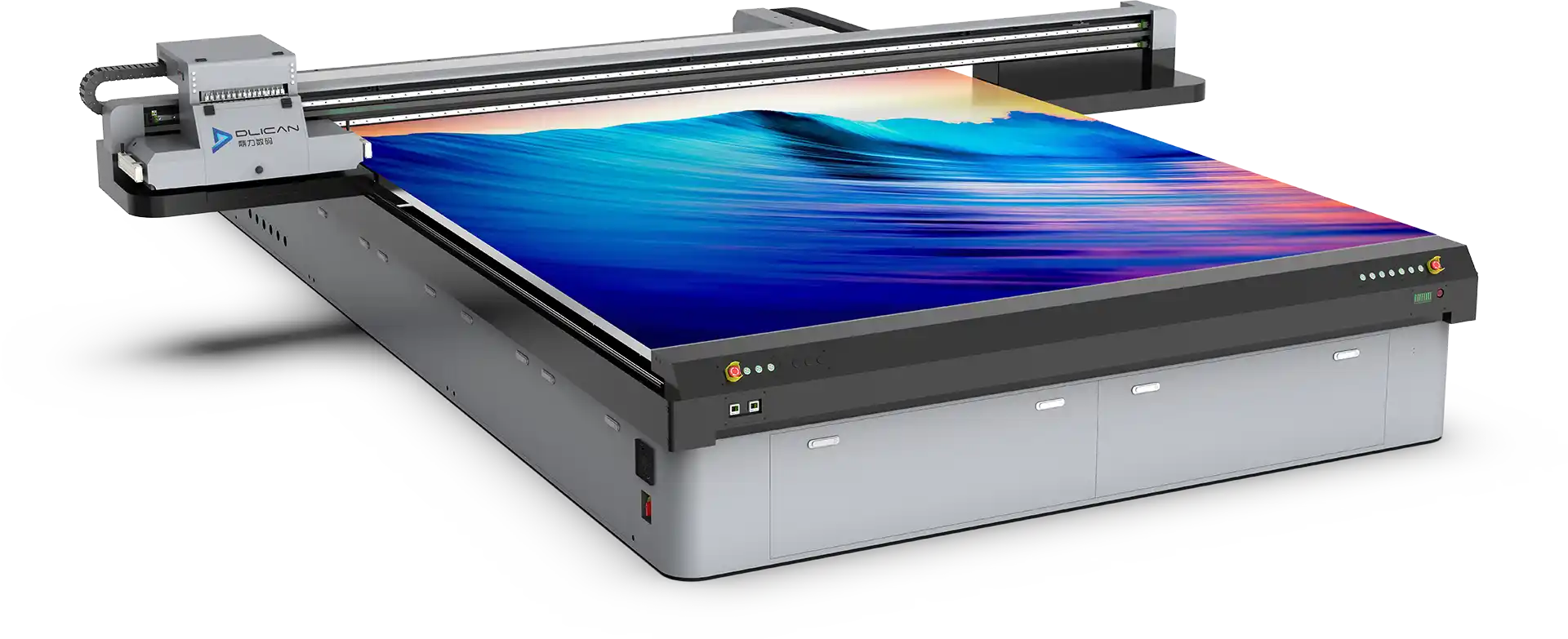

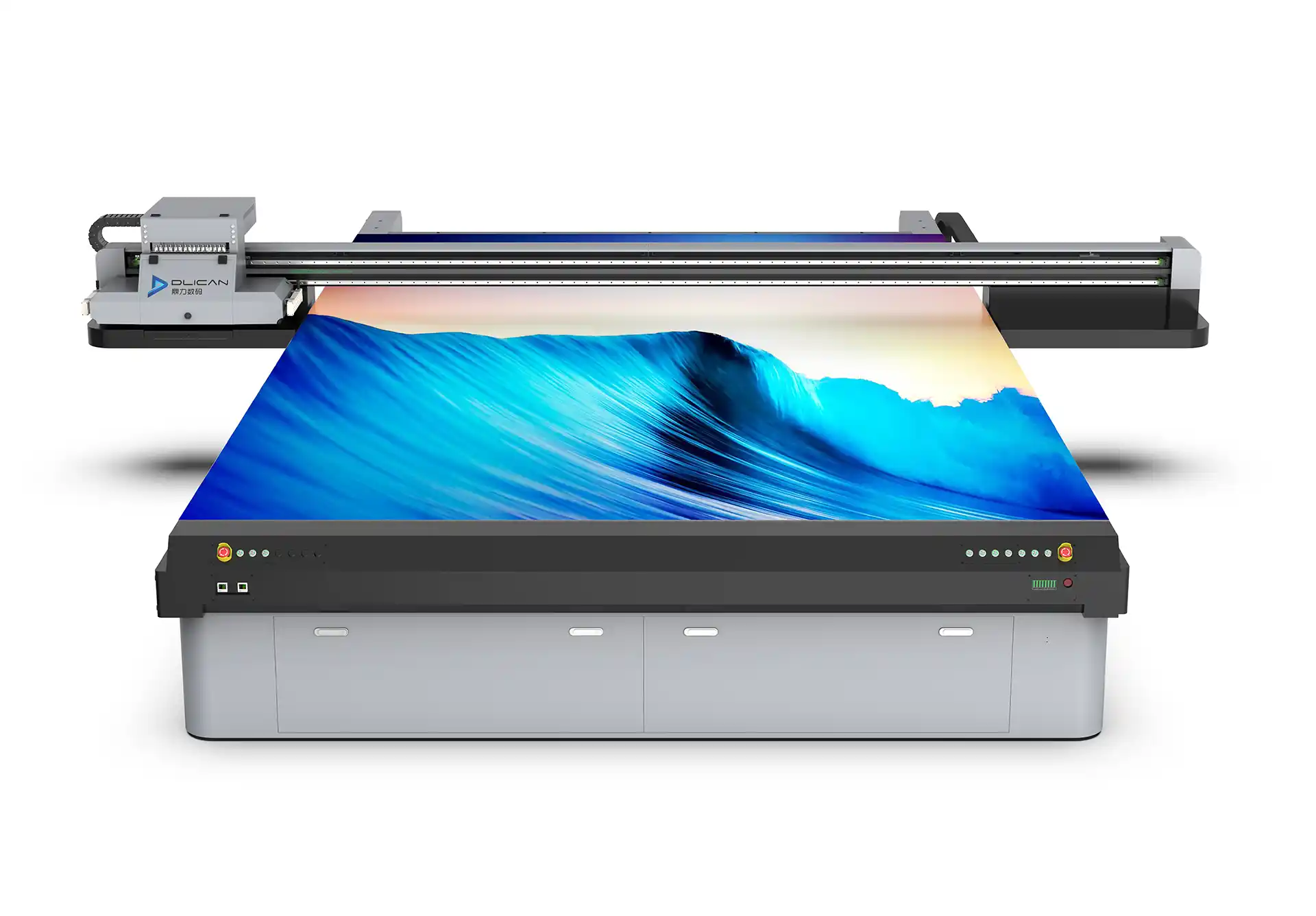

The DL 3325 is a large-format flatbed printer designed to meet the needs of professionals looking for versatility and performance.
Its 3.3 x 2.5 m printing surface enables large-scale projects to be carried out, from single prints to production runs.
Its customisable print height of up to 300 mm offers greater flexibility for printing on objects of different thicknesses, from flat substrates to larger parts.
The scanner option detects the positioning of randomly placed objects on the printing bed and adjusts the images to be printed according to each object's orientation. Say goodbye to manual positioning!
Technical specifications
| Print surface | 3300 x 2500 mm |
| Z height | 0 - 300 mm |
| Type of axis | Magnetic linear axis |
| Material type | Any type of support |
| Type of ink | UV-based : White, CMYK, LC, LM, Varnish + Support for multiple colour combinations |
| Type of tank | Continuous ink supply / Volume: 2000 ml / intelligent ink agitation |
| Number of printheads | 2 to 8 Ricoh G5 / G6 printheads |
| Resolution | 720*900 dpi / 720*1200 dpi / 720*1800 dpi |
| Image format | PDF, TIFF, JPEG, EPS, BMP |
| Operating environment | Temperature: 20°C - 30°C / Humidity: 40 - 70 % |
| Energie | AC230V (+- 10%) ; 50 Hz ; P = 10 000 W |
| Dimensions | 5494 x 3430 x 1500 mm |
| Weight | 2500 Kg |
| Options | Scanner, Anti-static bar, Immaterial barrier, Z height, Caldera |
Print speed
| Type of printhead | 4 Pass | 6 Pass | 8 Pass |
| Single row Ricoh G5 | 39,1 m²/h | 26,9 m²/h | 20,5 m²/h |
| Single row Ricoh G6 maglev | 52,34 m²/h | 35,8 m²/h | 27,6 m²/h |
| Double row Ricoh G5 | 42 m²/h | 30 m²/h | 21 m²/h |
| Double row Ricoh G6 maglev | 52 m²/h | 39 m²/h | 33 m²/h |
Configuration scheme: single row: 2 - 6 heads / double row: 4 - 12 heads
Printing mode: bi-directional printing
