High-resolution 3.3 x 4 m large-format UV printer.
DL 3340
DL 3340

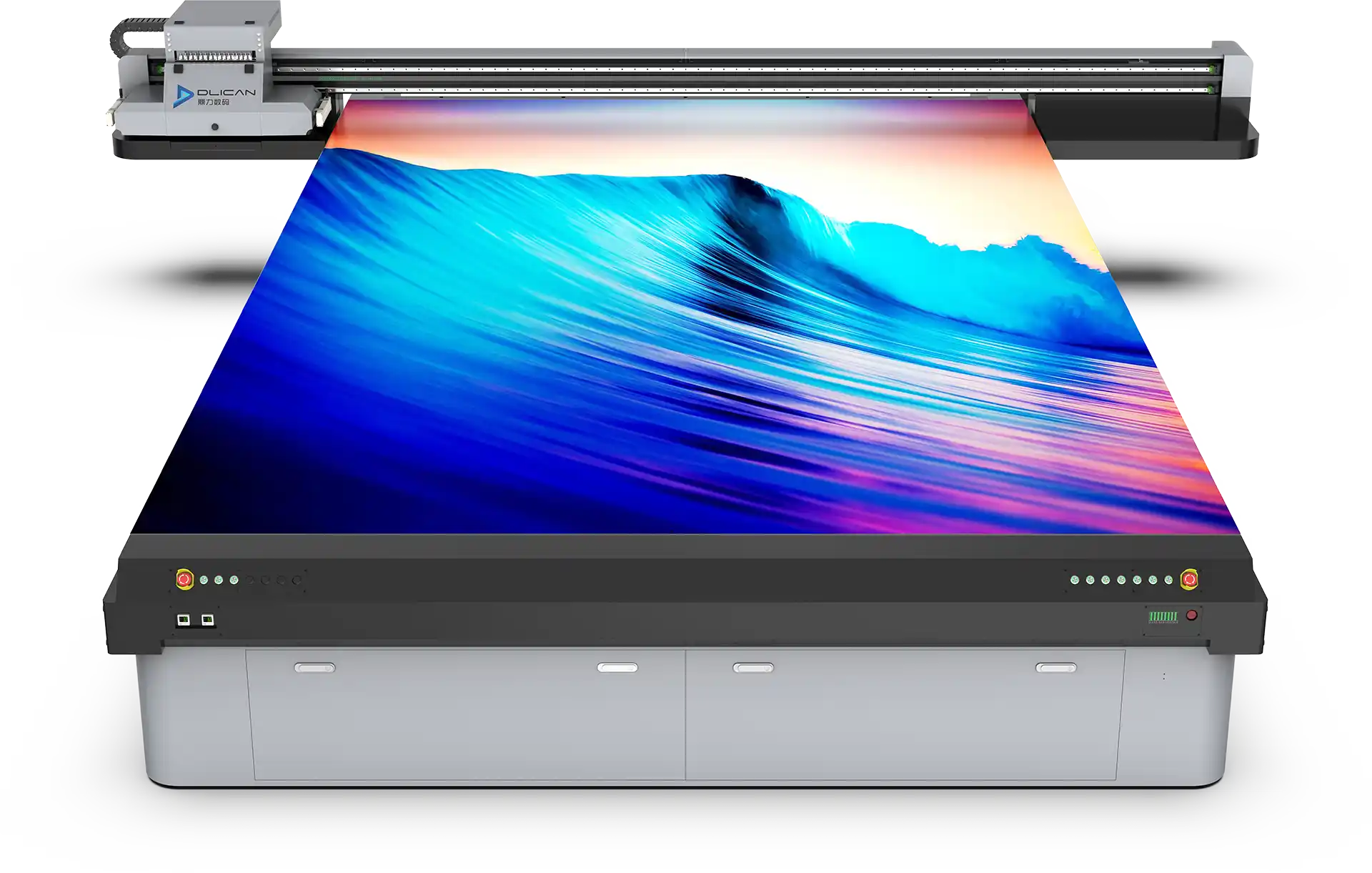

The DL 3340 is a large-format flatbed printer designed to meet the needs of professionals looking for versatility and performance.
Its 3.3 x 4 m printing area can handle large-scale projects, from single prints to production runs.
Its customisable print height of up to 300 mm offers greater flexibility for printing on objects of different thicknesses, from flat substrates to larger parts.
The scanner option detects the positioning of randomly placed objects on the printing bed and adjusts the images to be printed according to each object's orientation. Say goodbye to manual positioning!
Technical specifications
| Print surface | 3300 x 4000 mm |
| Z height | 0 - 300 mm |
| Type of axis | Magnetic linear axis |
| Material type | Any type of support |
| Type of ink | UV-based : White, CMYK, LC, LM, Varnish + Support for multiple colour combinations |
| Type of tank | Continuous ink supply / Volume: 2000 ml / intelligent ink agitation |
| Number of printheads | 2 to 8 Ricoh G5 / G6 printheads |
| Resolution | 720*900 dpi / 720*1200 dpi / 720*1800 dpi |
| Image format | PDF, TIFF, JPEG, EPS, BMP |
| Operating environment | Temperature: 20 - 30°C / Humidity: 40 - 70 % |
| Energie | AC230 V (+- 10%) ; 50 Hz ; P = 10000 W |
| Options | Scanner, Anti-static bar, Immaterial barrier, Z height, Caldera |
