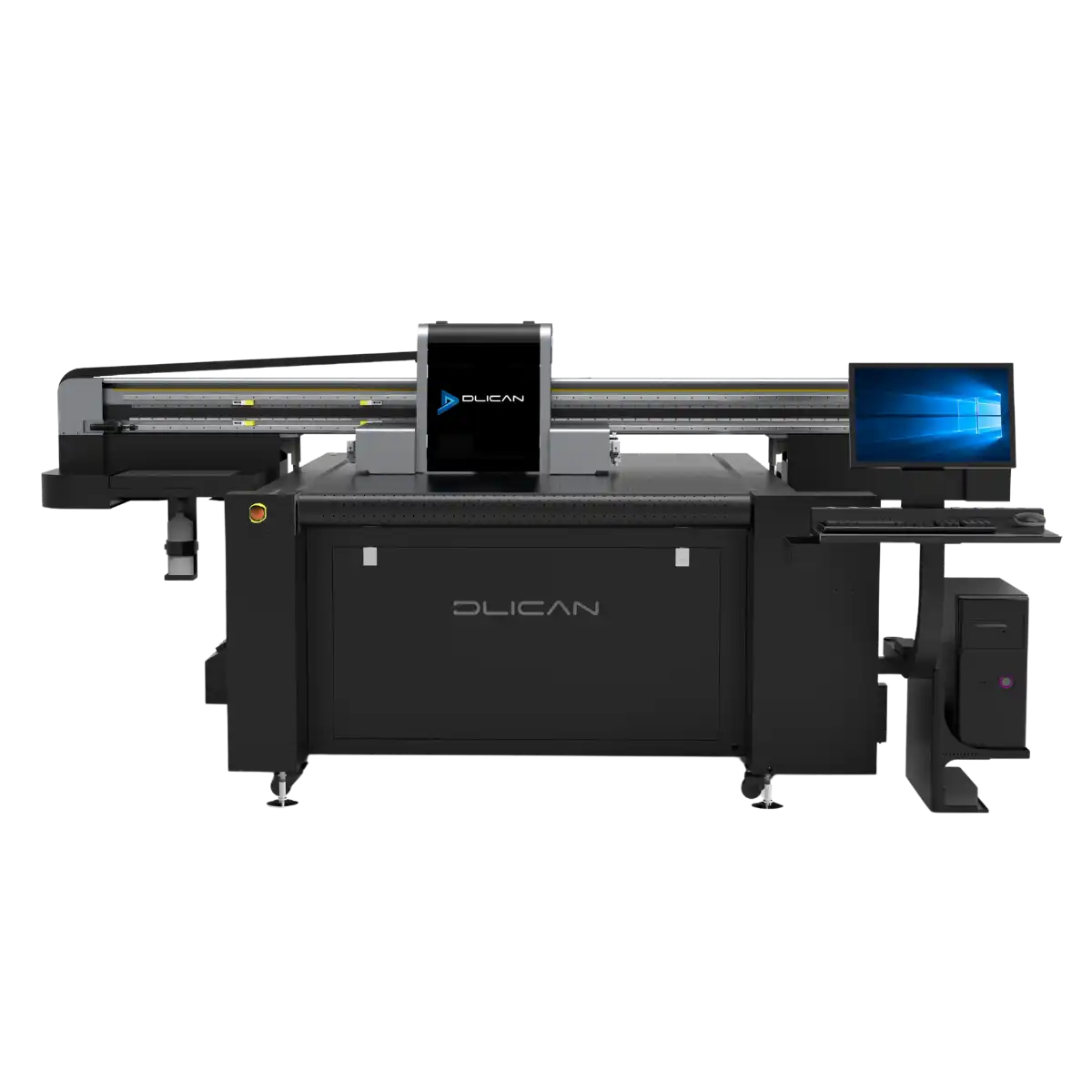

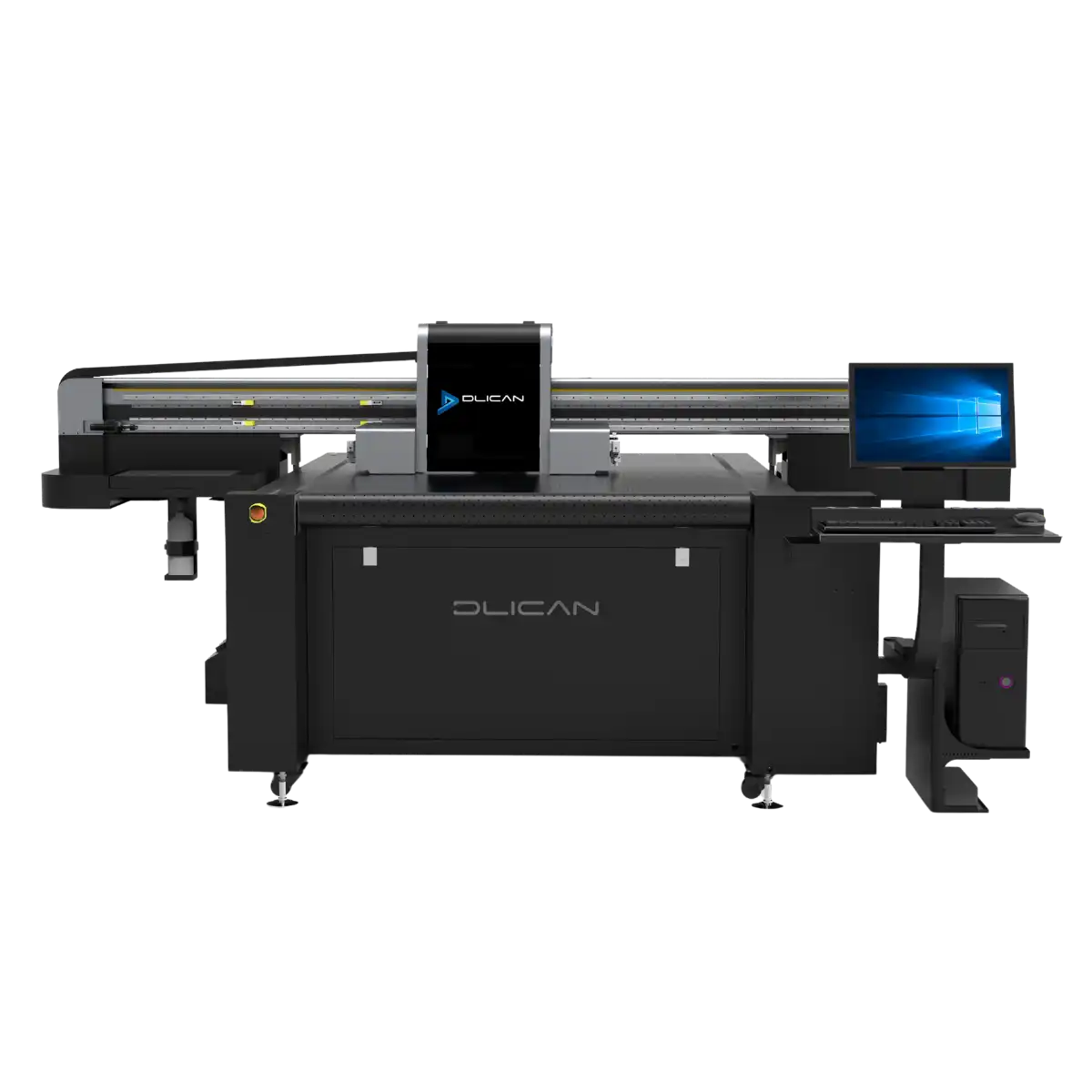

Printer with conveyor belt and AI visual recognition scanner
DL1319P
The DL1319P UV digital printer transforms your production line into a high-speed customisation tool.
Its continuous flow printing system with intelligent detection greatly simplifies the printing process:

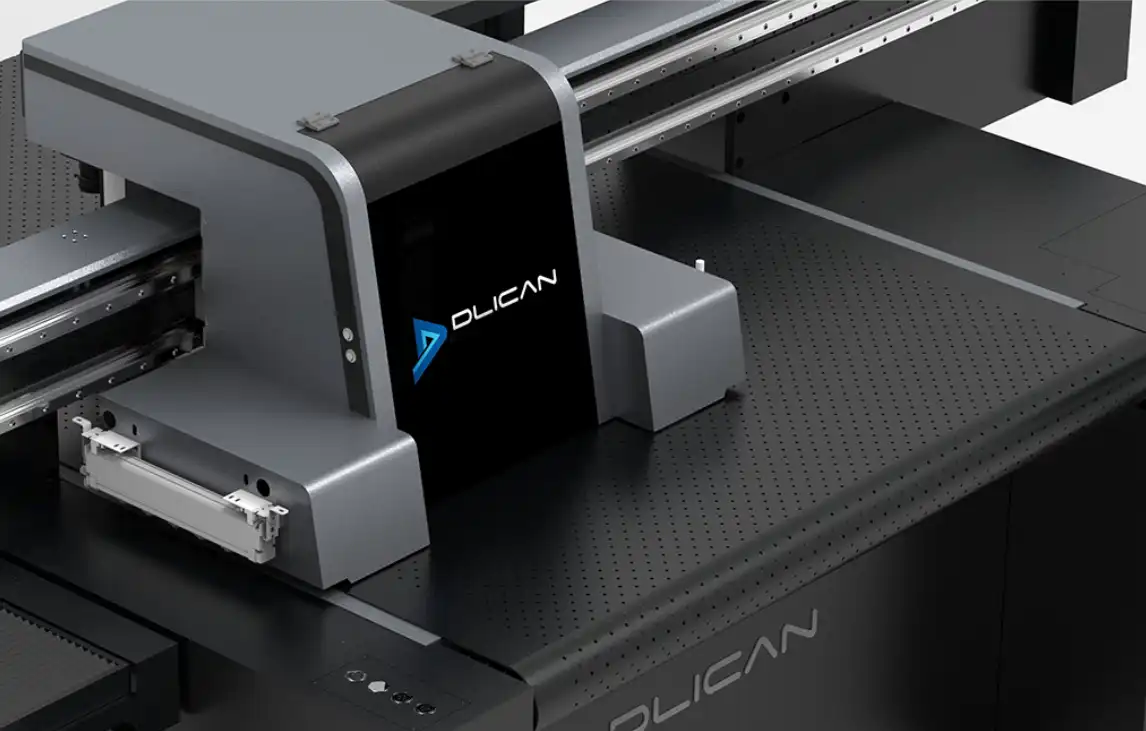

Equipped with a conveyor belt and an on-board scanner, the DL1319P automatically detects and positions objects, even those placed randomly.
It handles variable data printing, allowing you to personalise each item: sequential numbering, first names, specific messages, different visuals... directly online, without any additional steps.
The 4-step scanning option:
1- Place your objects randomly on the conveyor belt
2- The scanner analyses the print area to detect the presence, position and shape of the objects.
3- The system adjusts the positioning, alignment and print settings according to the objects detected. A preview is displayed to allow manual adjustment if necessary before printing.
4- Once the settings have been validated, printing starts in perfect synchronisation with the position of the objects.
| Print surface | 1300 x 650 mm - Tapis convoyeur |
| Z height | 0 - 200 mm |
| Type of axis | Magnetic linear axis |
| Material type | Any type of support |
| Type of ink | UV-based : White, CMYK, LC, LK, LM, Varnish + Support for multiple colour combinations |
| Type of tank | Continuous ink supply / Volume: 2000 ml / Intelligent agitation ink |
| Number of printheads | 2 to 8 Ricoh G5 / G6 / G5S printheads |
| Resolution | 960*900 dpi / 920*1200 dpi / 960*1800 dpi |
| Image format | PDF, TIFF, JPEG, EPS, BMP |
| Operating environment | Temperature: 20 - 30°C / Humidity: 50 - 70 % |
| Energie | AC 230 V (+- 10%); 50 Hz; P = 8,000 W |
| Weight | 1300 Kg |
| Options | Scanner, Anti-static bar, Immaterial barrier, Z height, Caldera |
Print speed
| 4 Pass | 6 Pass | 8 Pass |
| 11 m²/h | 8 m²/h | 6 m²/h |
