4-in-1 high-definition printer, low-cost, compact and flexible

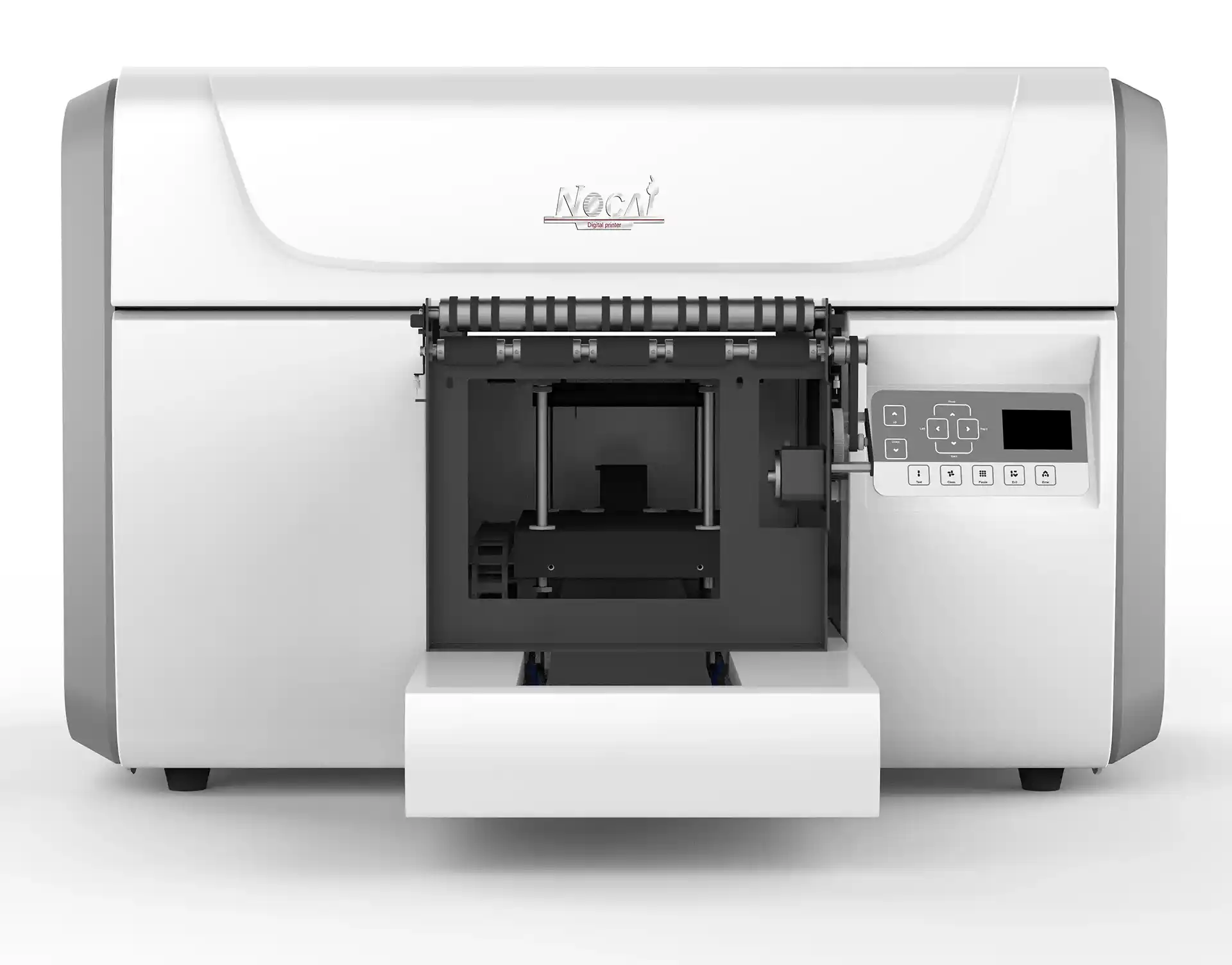

Nocaï format A3
Flat, DTF, roll to roll or rotational printing
The Nocaï A3 format stands out for its ability to adapt to all product geometries. In fact, its multiple options enable it to print using three different technologies:
- Flatbed printing
- Roll-to-roll printing
- Rotational printing
- DTF printing
Exceptional Ease of Use

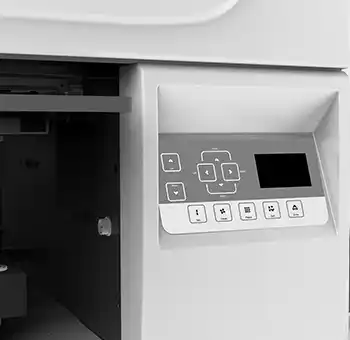

Silent and compact, the Nocaï A3 seamlessly integrates into any environment, whether a workshop or an office space. Its intuitive and ergonomic control panel ensures a smooth user experience, even for beginners.
Its final key advantage? Price. Starting at €7,990 excl. VAT, the Nocaï A3 is an accessible digital printing solution—perfect for entrepreneurs looking to combine performance and simplicity.
| Print surface | 297 x 420 mm |
| Z height | from 0 to 90 mm |
| Type of axis | Belt axis |
| Material type | Any type of support |
| Type of ink | UV-based : White, CMYK, Varnish |
| Type of tank | Volume: 200 ml |
| Number of printheads | 1 Epson i3200 printhead |
| Resolution | 960*1200 dpi / 960*960 dpi |
| Image format | PDF, TIFF, JPEG, Ai, PSD |
| Operating environment | Temperature: 20 - 28°C / Humidity: 35 - 65%. |
| Energie | AC230/110V±10 ; 50Hz~60Hz ; P = 140 W |
| Dimensions | 1000 x 902 x 592 mm |
| Weight | 78 Kg |
| Options | Roll to roll, Rotation |
Options

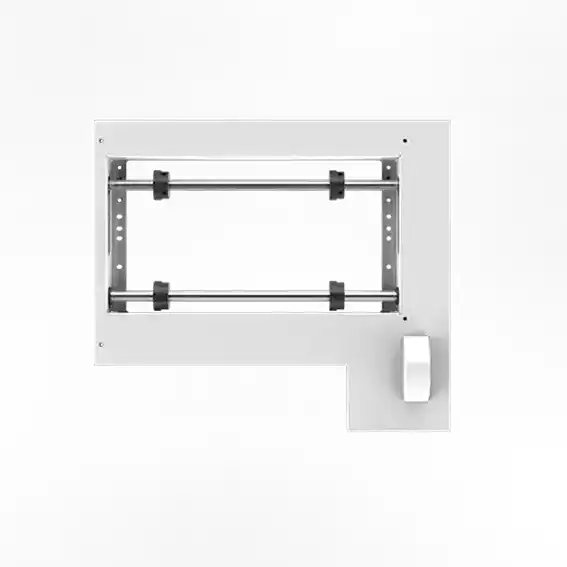

Rotation
| Maximum cylinder diameter | from 25 to 80 mm |
| Maximum cylinder length | from 20 to 210 mm |
| Type of material | Stainless steel, plastic, glass, ceramic, wood, acrylic |

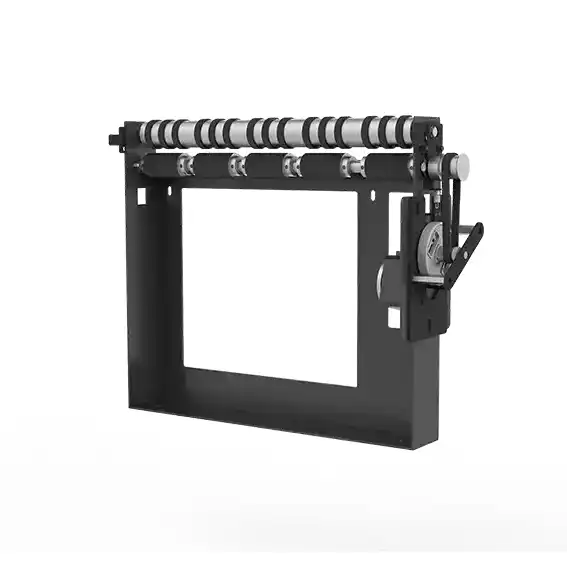

Roll to roll
| Roll weight | Up to 10 Kg |
| Roll width | from 30 to 250 mm |
| Roll diameter | max 150 mm |
| Roll length | 50 m depending on roll thickness |
| Types of materials | Stickers, kraft paper, white paper, transparencies, coated paper, gloss (gold/silver), brushed gold/silver, transparent film, matt film, PP adhesive, PET, PVC. |

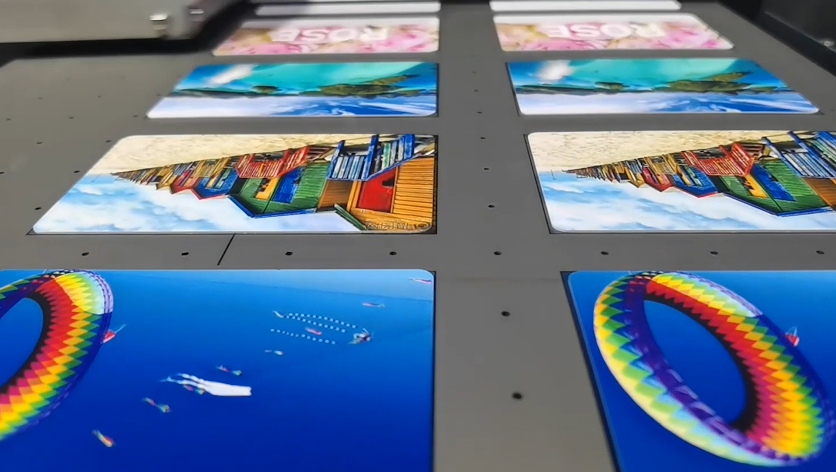

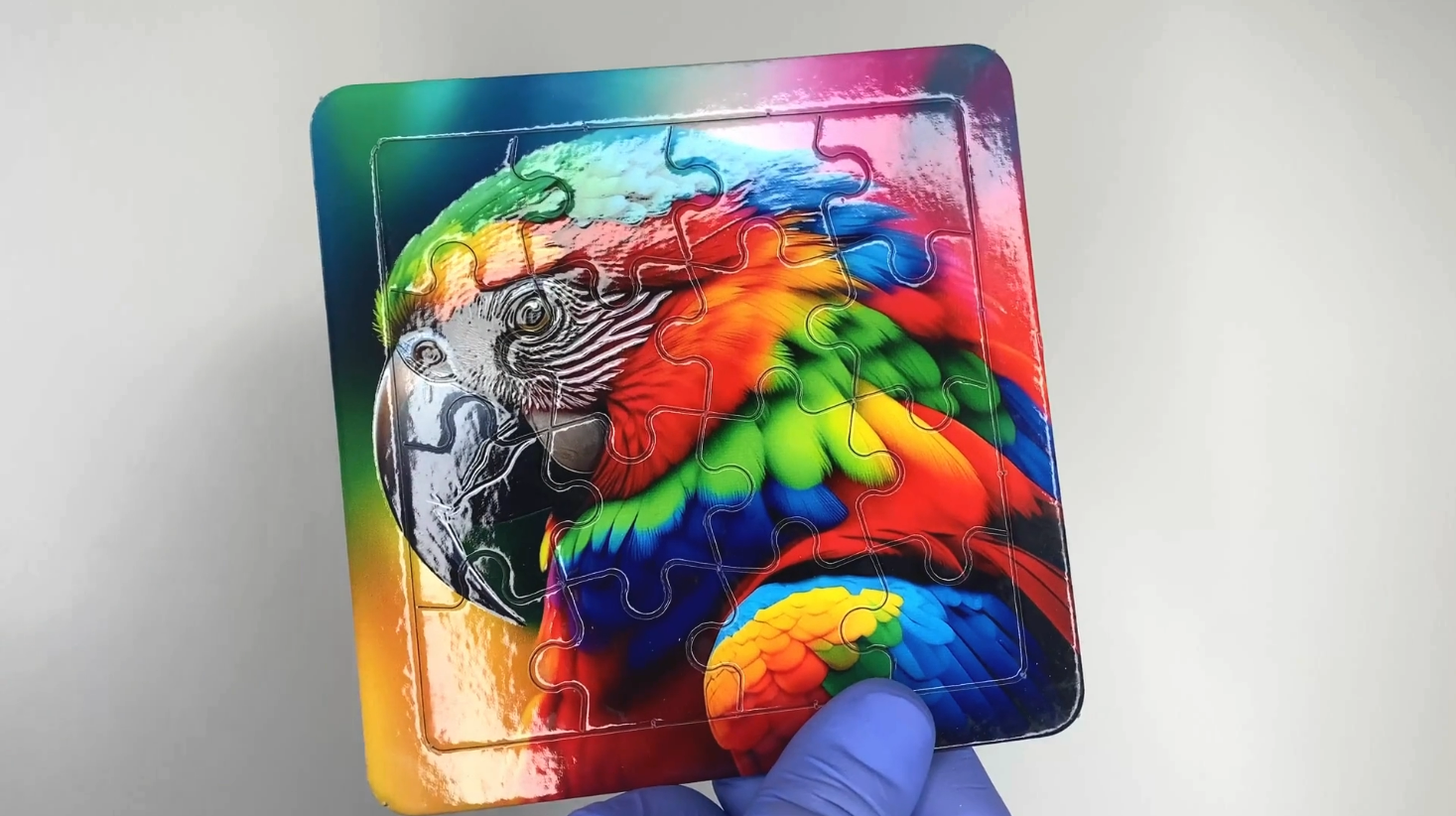

The A3 Nocaï prints all kinds of shapes and materials. Print in high definition on a multitude of objects thanks to its 4 printing modes.
