Large-format, high-definition UV printer, customise your flat or rotary products.

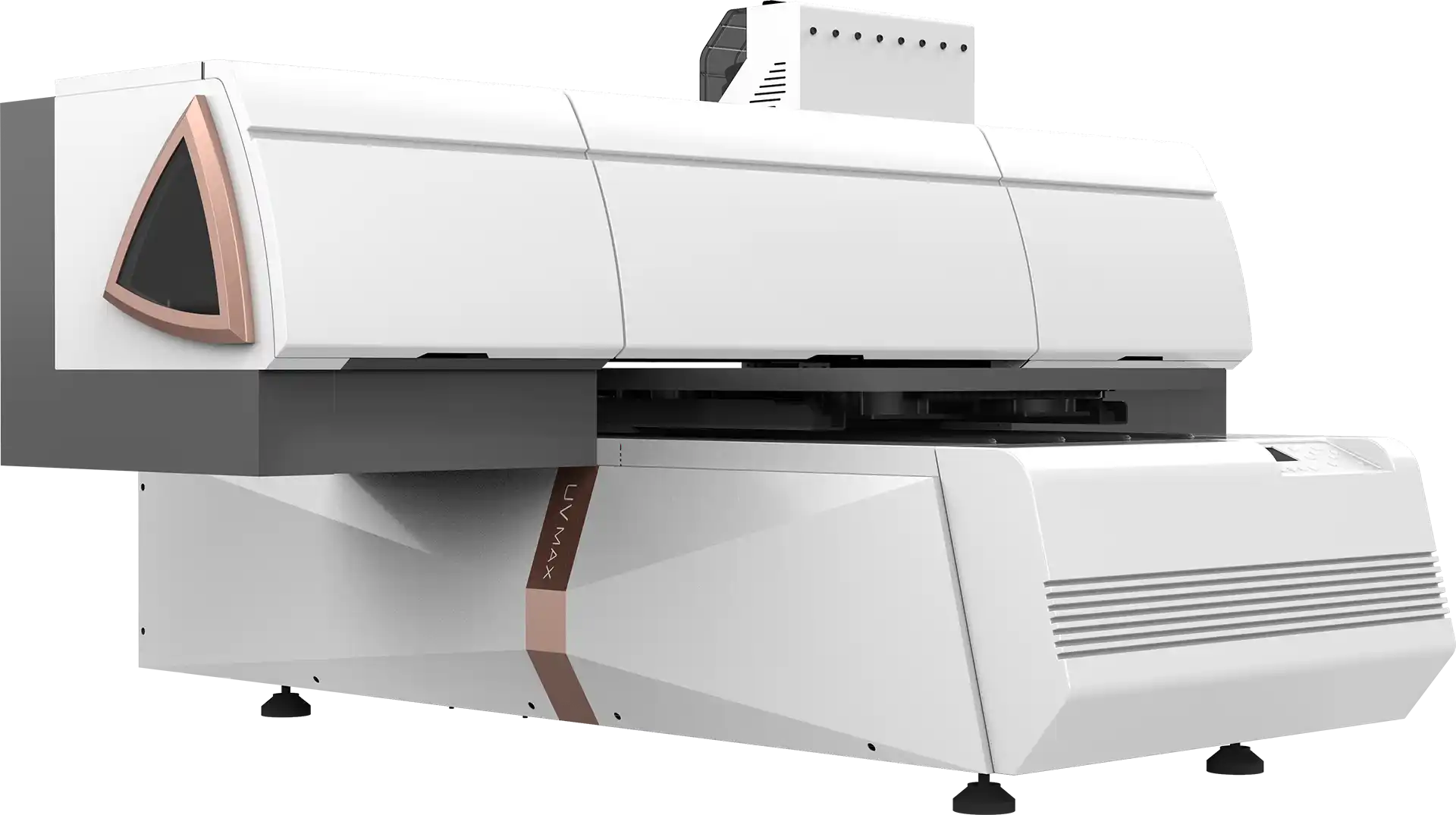

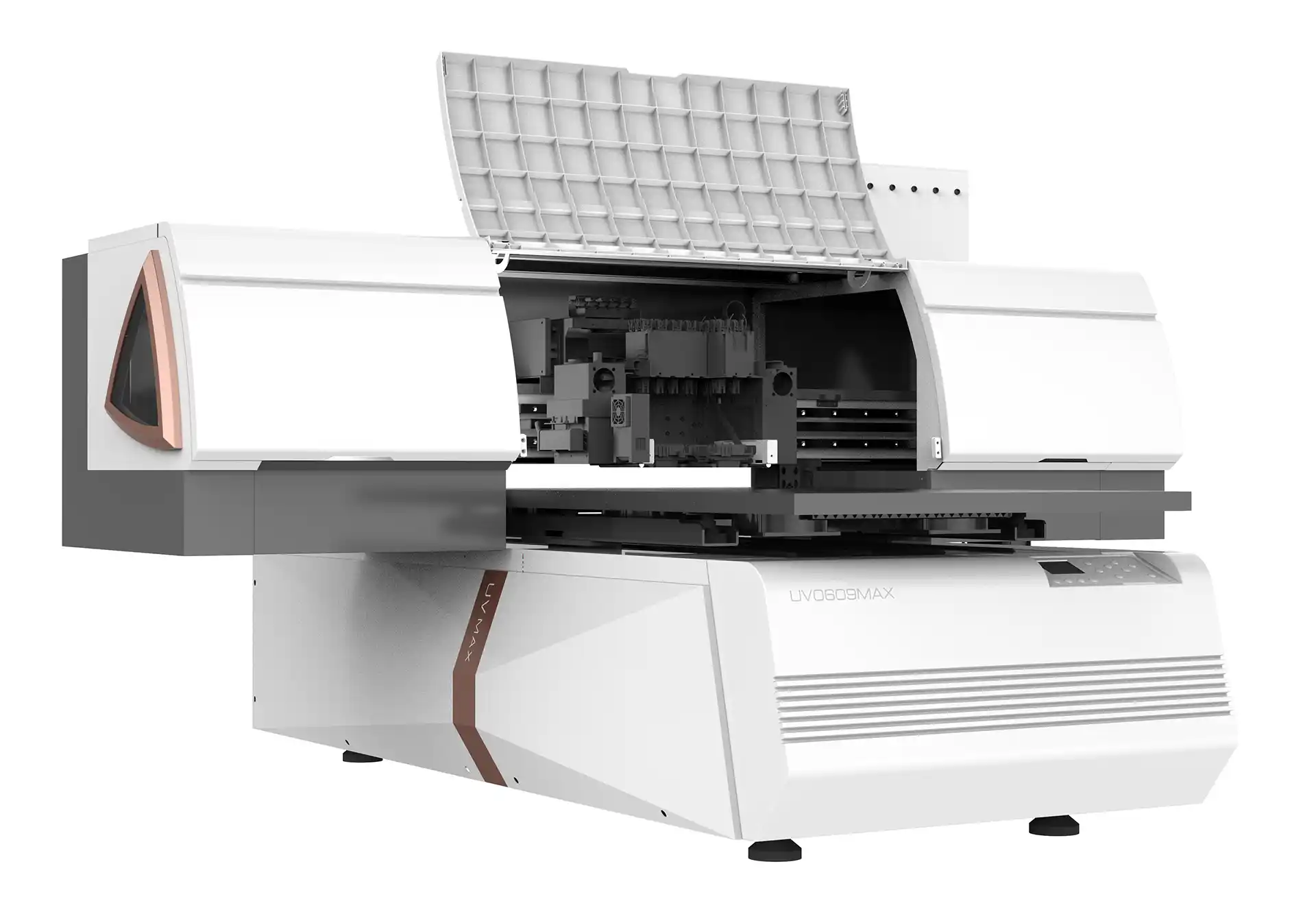

Nocaï large format
Brilliant print quality
Nocaï large format excels in its ability to produce sharp, detailed prints. Using varnish, white and 8 colours, it delivers rich, high-contrast visuals, perfect for enhancing your projects with finesse and precision.
Efficiency and productivity
In addition to its graphic prowess, the large-format Nocaï also performs well in technical terms:
- A 600 x 900 mm XL format suction plate
- 180 mm print height for decorating large objects
- An optional rotation system for decorating cylinders such as bottles, candles, glasses, etc.
A great professional at a small price: from €17,990 excluding VAT. The equipment that optimises medium-volume production.
| Print surface | 600 x 900 mm |
| Z height | from 0 to 180 mm |
| Type of axis | Belt linear axis |
| Material type | Any type of support |
| Type of ink | UV-based : White, CMYK, LC, LK, LLK, LM, Varnish |

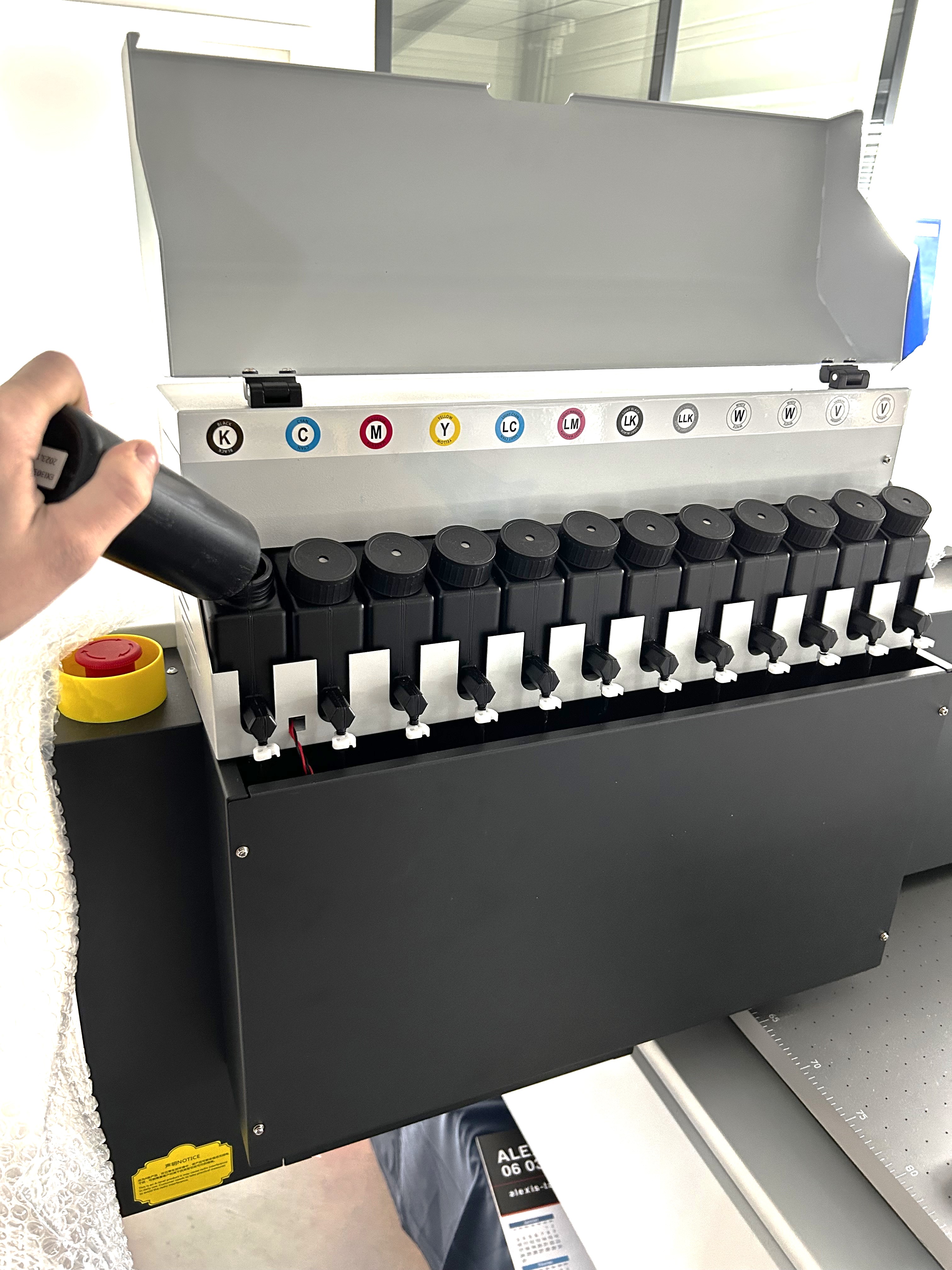

| Type of tank | Volume : 200 ml |
| Number of printheads | 3 Epson i3200 heads |
| Resolution | 720*600 dpi / 720*900 dpi / 720*1200 dpi |
| Image format | PDF, TIFF, JPEG, Ai, EPS, PNG |
| Operating environment | Temperature: 20 - 28°C / Humidity: 35 - 65 %. |
| Energie | AC230/110V±10 ; 50Hz~60Hz ; P = 470 W |
| Dimensions | 1676 x 1638 x 975 mm |
| Weight | 226 Kg |
| Options | Rotation |
Options

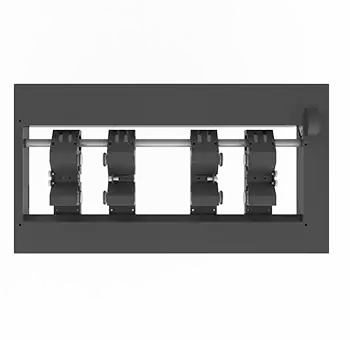

Rotation
| Maximum cylinder diameter | from 30 to 120 mm |
| Maximum cylinder length | from 40 to 430 mm |

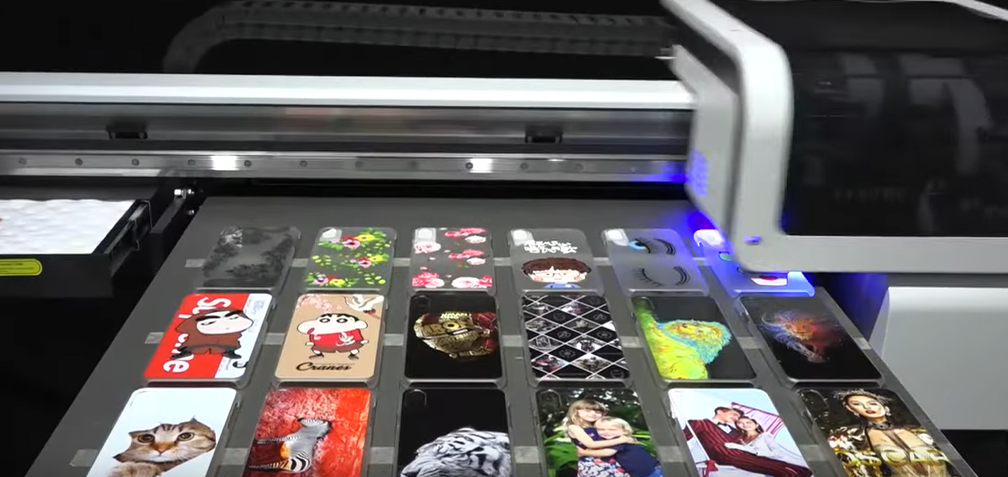

Print on all types of material: stainless steel, plastic, glass, ceramic, wood, acrylic...
