Fastest digital coding and marking printer in its class

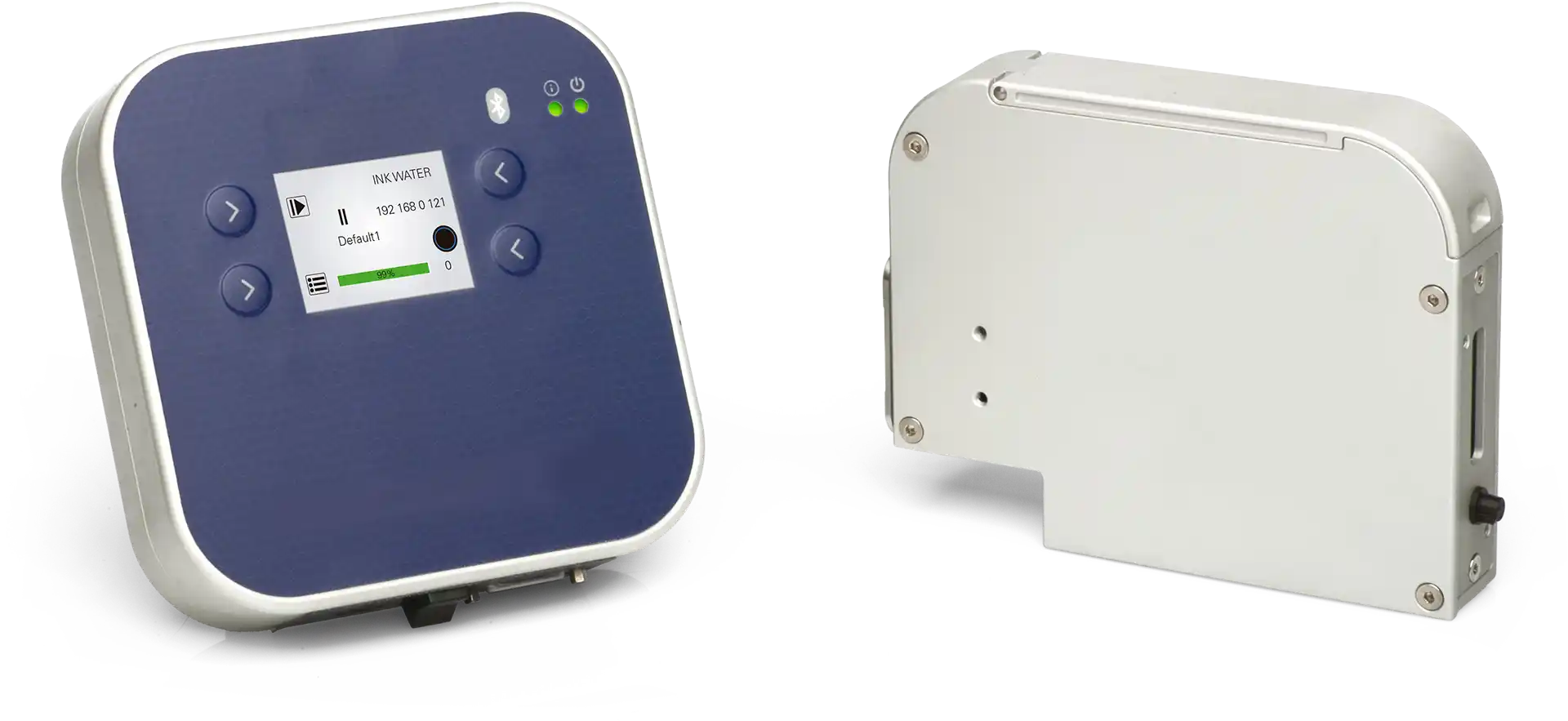

InfinityA510S
InfinityA510S
The InfinityA510S industrial coding and marking printer prints at speeds of up to 120 m/min. Its solvent-based ink offers enhanced resistance to light, ozone and water.
It is compatible with materials such as plastic, lacquered or painted wood, metal, glass and plywood.
The standard black colour is available in the catalogue. Seven other colours are available on request.
Its 12.7 mm print height lets you print all your barcodes, logos, serial numbers, best-before dates, EAN codes and datamatrix.
From € 2 500
Technical specifications
| Print height | Up to 12,7 mm |
| Z height | 300 mm |
| Type of ink | Solvent-based |
| Material type | non-porous materials |

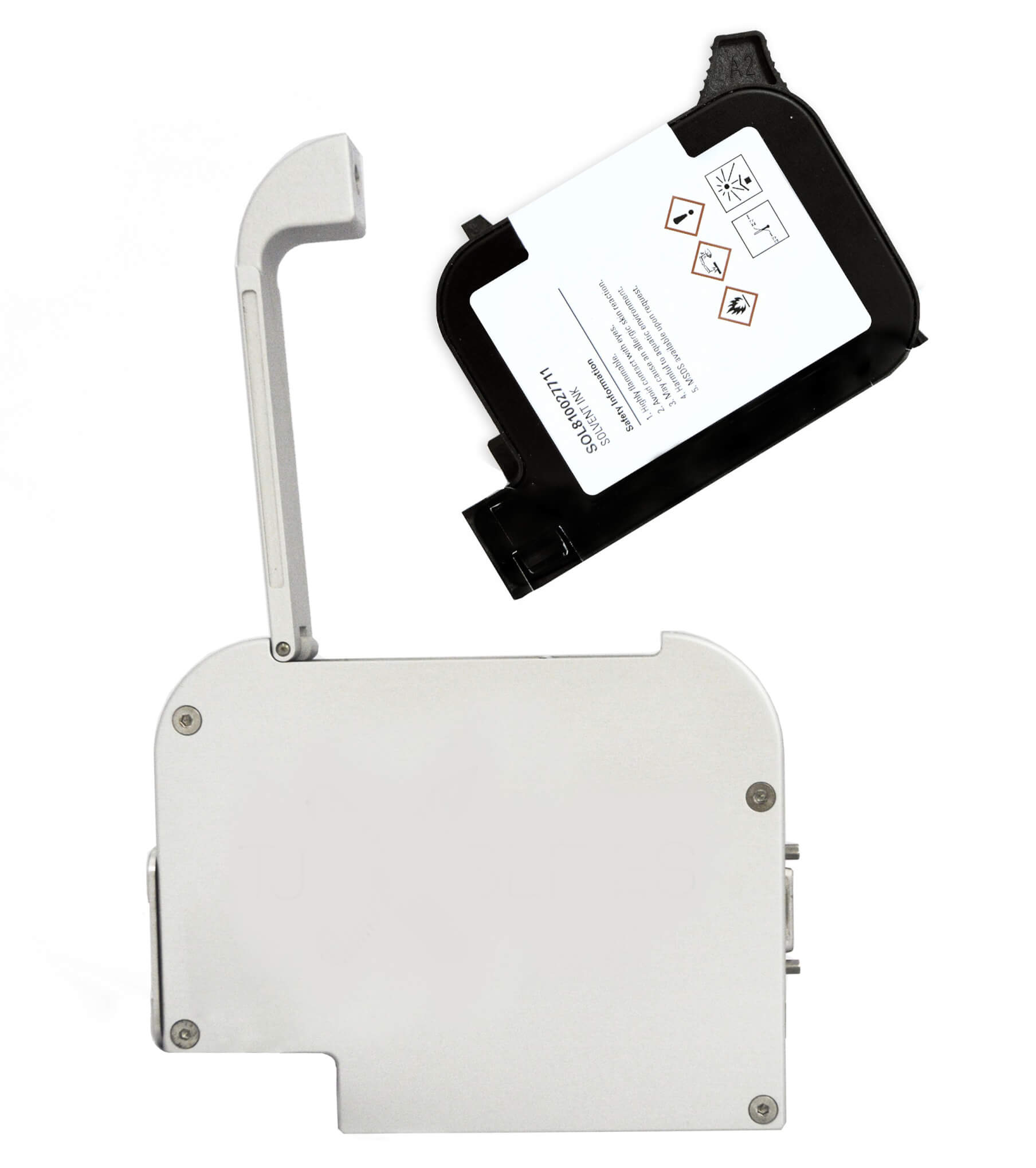

| Type of tank | Cartridge HP |
| Number of printheads | 1 HP print head |
| Resolution | Vertical resolution: 300 to 600 dpi ; Horizontal resolution: 300 to 900 dpi |
| Print speed | 120 m/min |
| Image format | PDF, JPEG, Ai, PSD |
| Operating environment | 5°C to 40°C Humidity 5% to 85% non-condensing. |
| Energie | Module externe INPUT 110v / 240v I 50-60Hz I 10W |
| Dimensions | Tête : 130 x 26 x 104mm ; Contrôleur : 120 x 31 x 120mm |

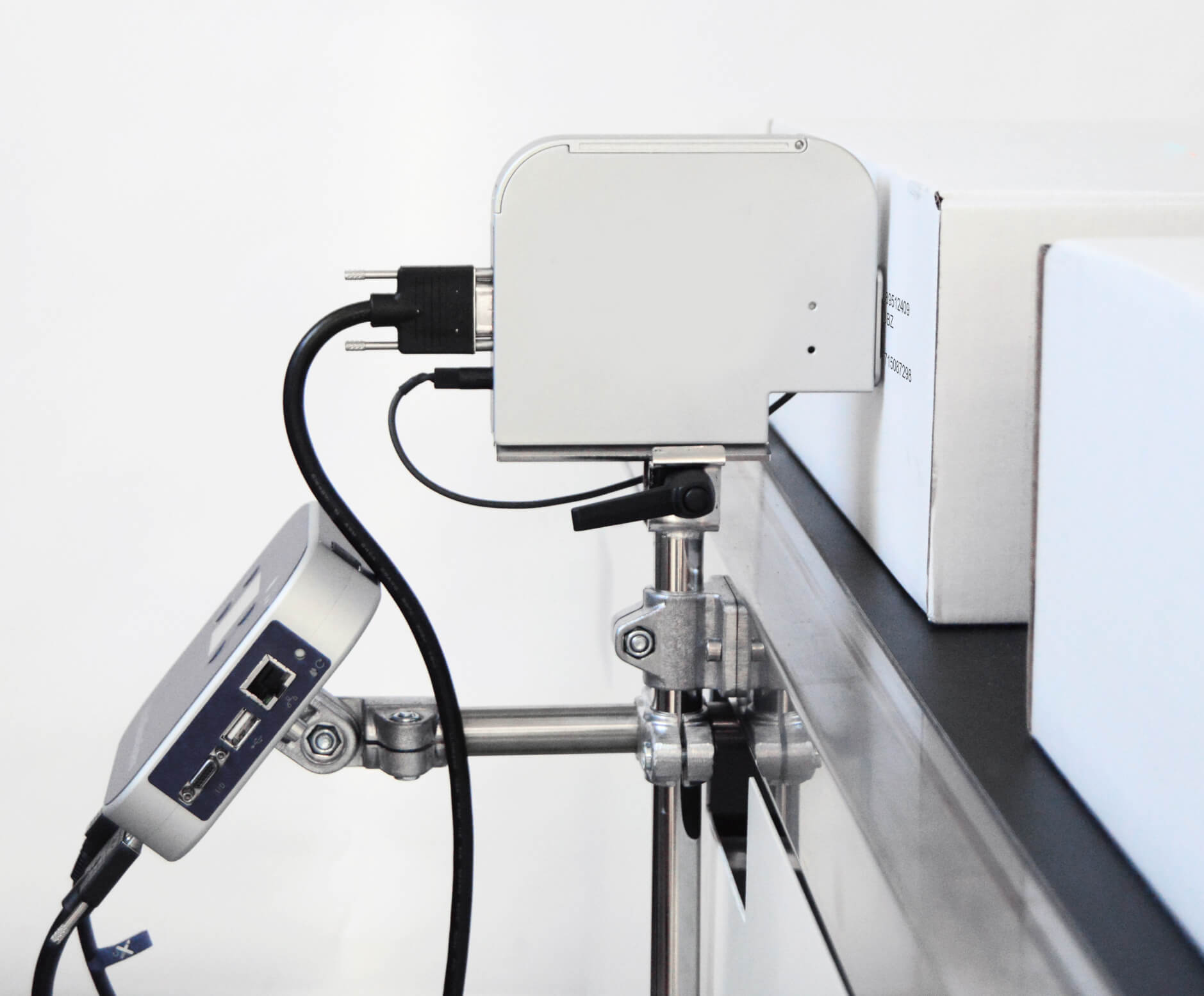

| Type of integration | Production lines |
Applications

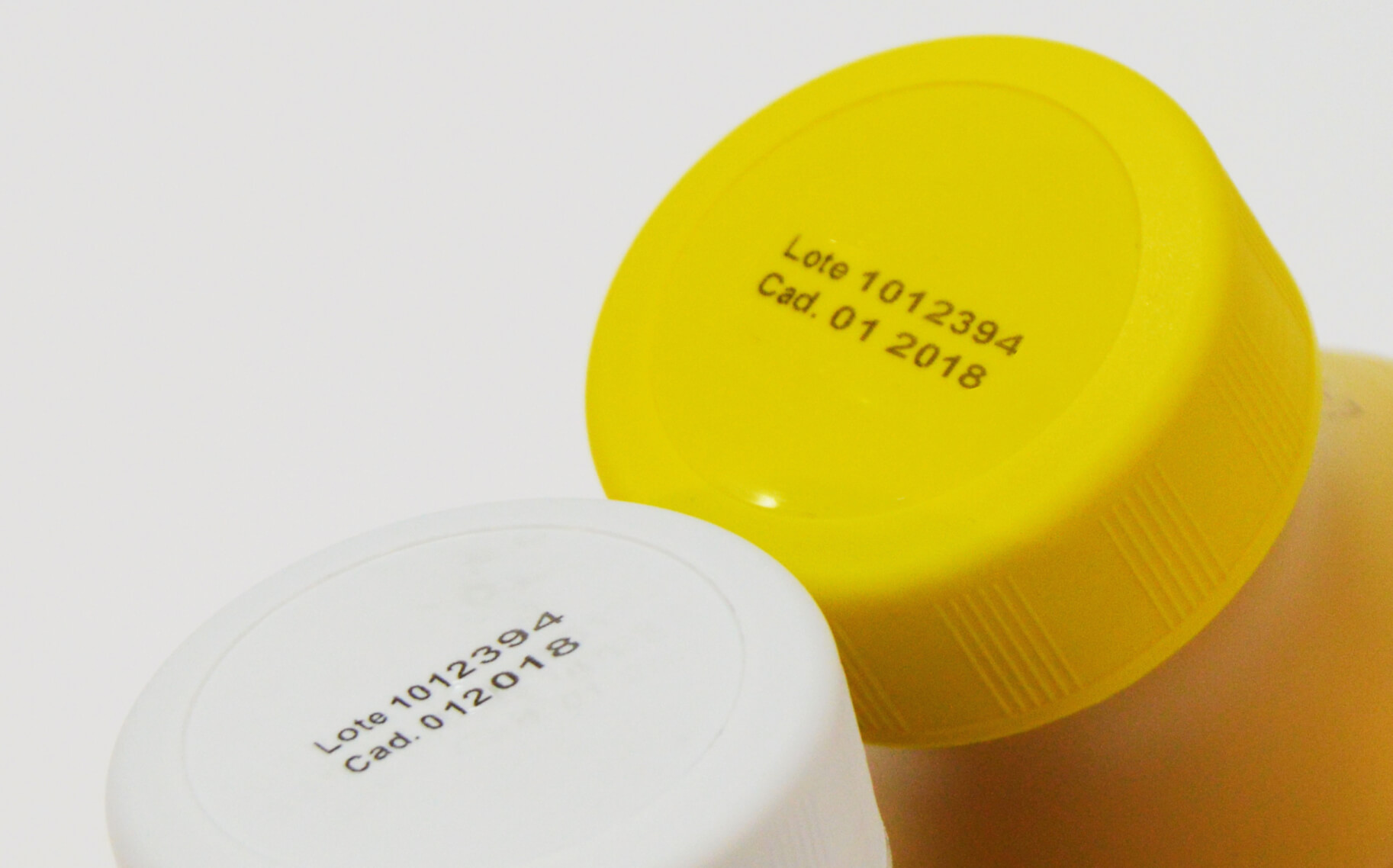

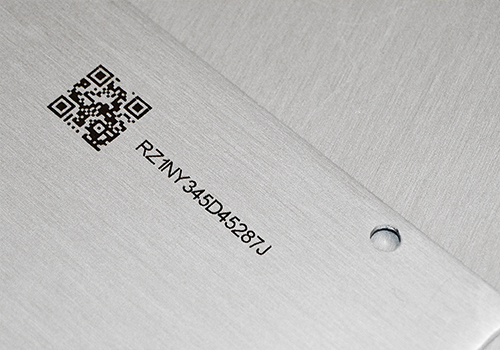

Printing of barcodes, logos, serial numbers, expiry dates, EAN codes or datamatrix, on plastic: PP, PVC, PET, PS HDPE, LDPE; lacquered or painted wood, metal, glass and plywood.
