Instant-dry digital coding and marking printer
InfinityA510U
InfinityA510U

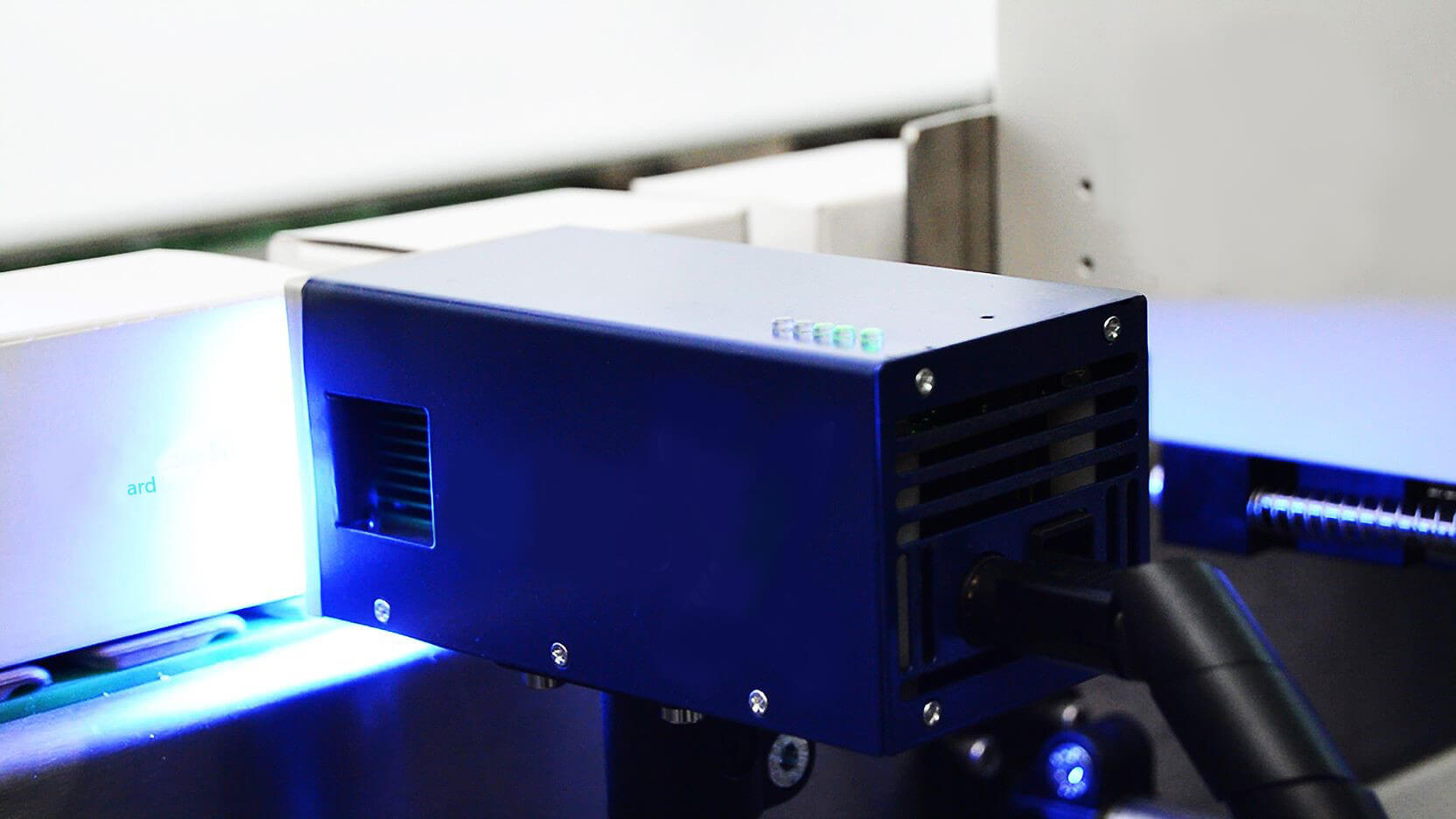

InfinityA510U industrial coding and marking printer prints on all types of materials such as plastic, paper, cardboard, lacquered or painted wood, metal, glass and plywood, using UV-based ink that dries immediately and requires no maintenance.
Its 12.7mm print height lets you print all your barcodes, logos, serial numbers, expiry dates, EAN codes and datamatrix.

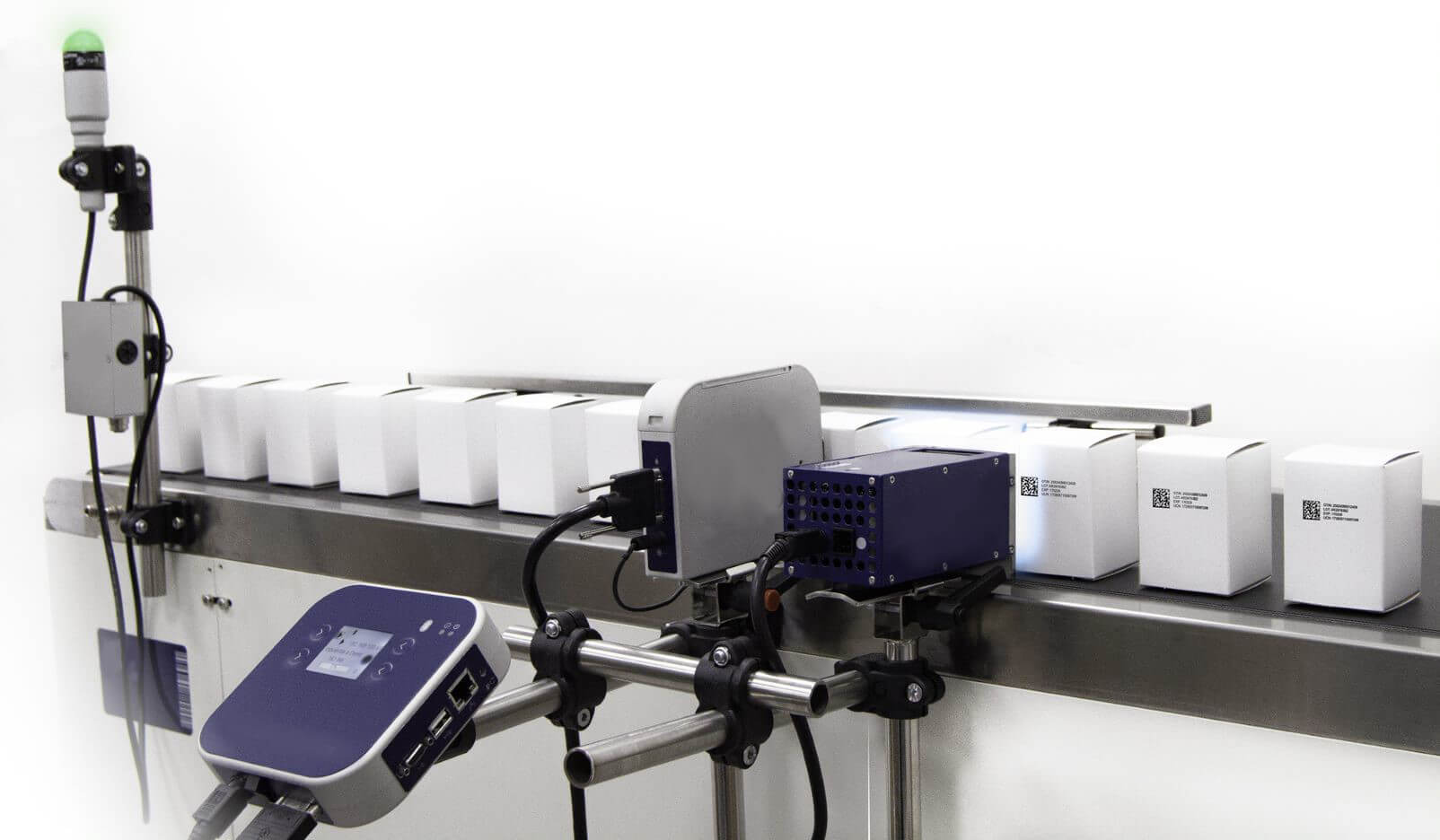

Perfectly integrated into your production line, its 50 m/min print speed is a real asset for achieving high production rates.
UV ink ensures ultra-fast drying, so printed products can be handled immediately.
Technical specifications
| Print height | Up to 12,7 mm |
| Z height | 300 mm |
| Type of ink | UV-based |
| Material type | Any type of support |
| Type of tank | Cartridge HP |
| Number of printheads | 1 HP printhead |
| Resolution | Vertical resolution: 300 to 600 dpi ; Horizontal resolution: 300 to 900 dpi |
| Print speed | 50 m/min |
| Image format | PDF, JPEG, Ai, PSD |
| Operating environment | 5°C to 40°C ; Humidity 5% to 85% non-condensing. |
| Energie | External module INPUT 110v / 240v I 50-60Hz I 10W |
| Dimensions | Tête : 130 x 26 x 104mm ; Contrôleur : 120 x 31 x 120mm |
| Type of integration | Production lines |
Applications

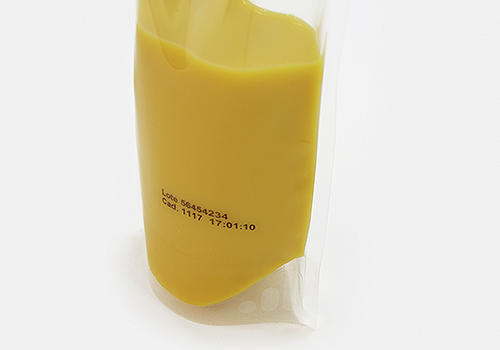

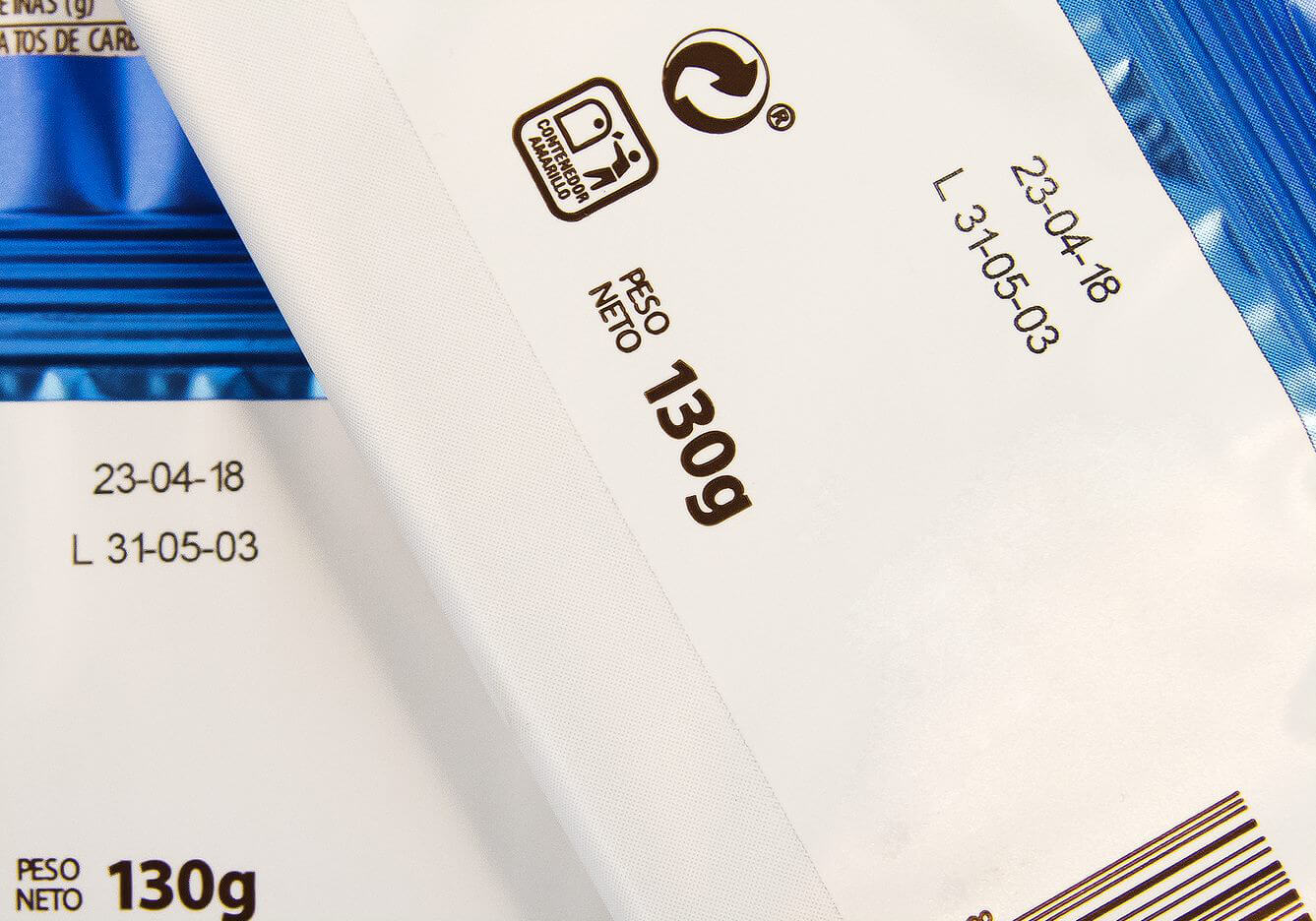

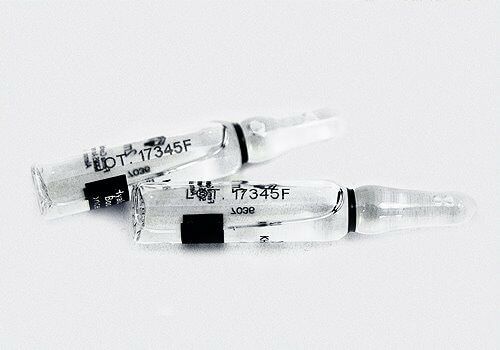

Printing of barcodes, logos, serial numbers, expiry dates, EAN codes or datamatrix, on plastic: PP, PVC, PET, PS HDPE, LDPE; lacquered or painted wood, metal, glass and plywood.
