The ideal digital printer for your porous products.

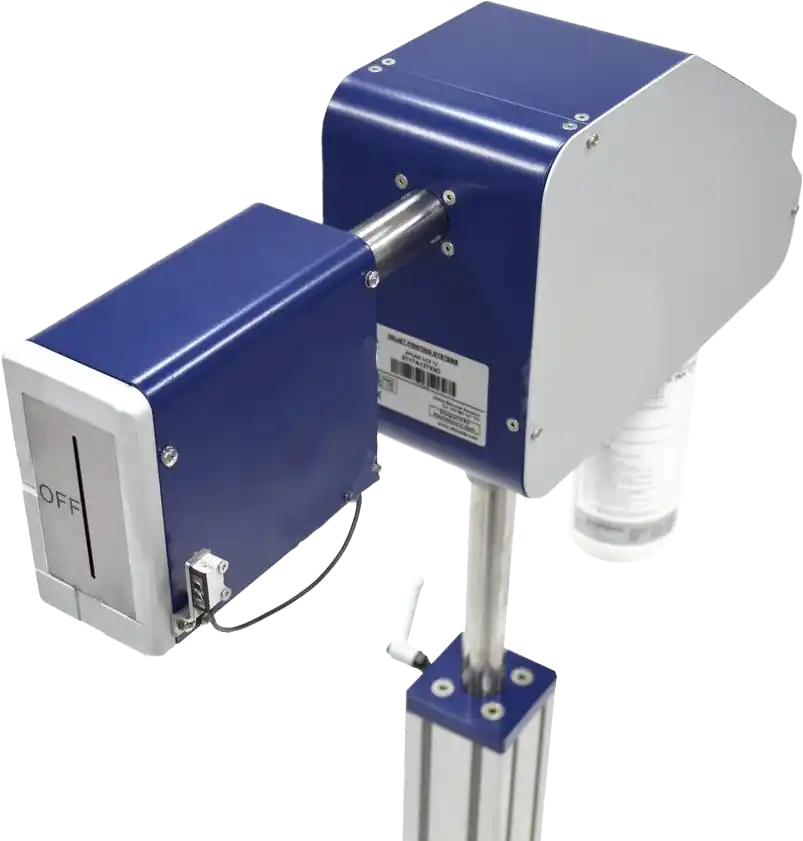

InfinityA520L
InfinityA520L
InfinityA520L industrial coding and marking printer prints on porous materials such as paper, cardboard, untreated wood, concrete, brick and cement.
Its oil-based ink provides excellent pigment transfer, resulting in brilliant, intense colours. Six colours are available in the catalogue.

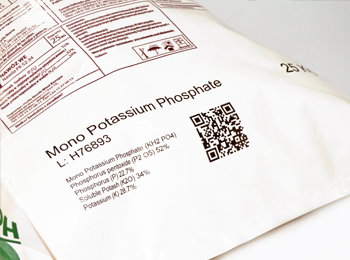

Its 36mm print height and 60m/min print speed will enable you to print all your barcodes, logos, serial numbers, best-before dates, EAN codes and datamatrix codes, optimising the production value of your line.
Oil-based inks offer excellent adhesion to porous substrates and increased rub resistance.
From € 4 990
Technical specifications
| Print height | Up to 36 mm |
| Type of ink | Oil-based |
| Material type | porous materials |
| Type of tank | Bottle |
| Number of printheads | 1 Xaar printhead |
| Resolution | Vertical resolution: 180 dpi ; Horizontal resolution: from 180 to 360 dpi |
| Print speed | 60 m/min |
| Image format | PDF, JPEG, Ai, PSD |
| Operating environment | 5°C to 40°C ; Humidity 5% to 85% non-condensing. |
| Energie | External module INPUT 110v / 240v I 50-60Hz I 15W |
| Dimensions | 618 x 140 x 223 mm |
| Type of integration | Production lines |
Applications

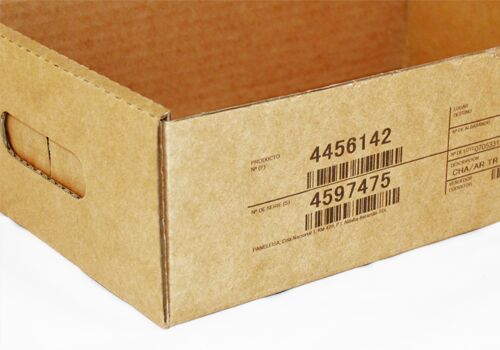

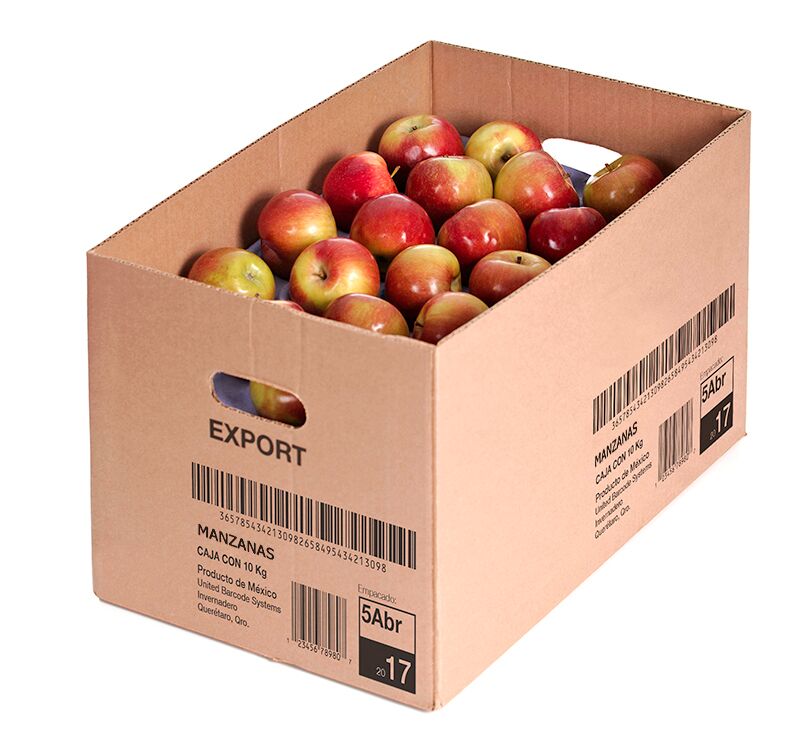

Printing of barcodes, logos, serial numbers, expiry dates, EAN codes or datamatrix, on paper, cardboard, untreated wood, concrete, brick and cement.
