Print quickly on absorbent materials.
InfinityA530L
InfinityA530L

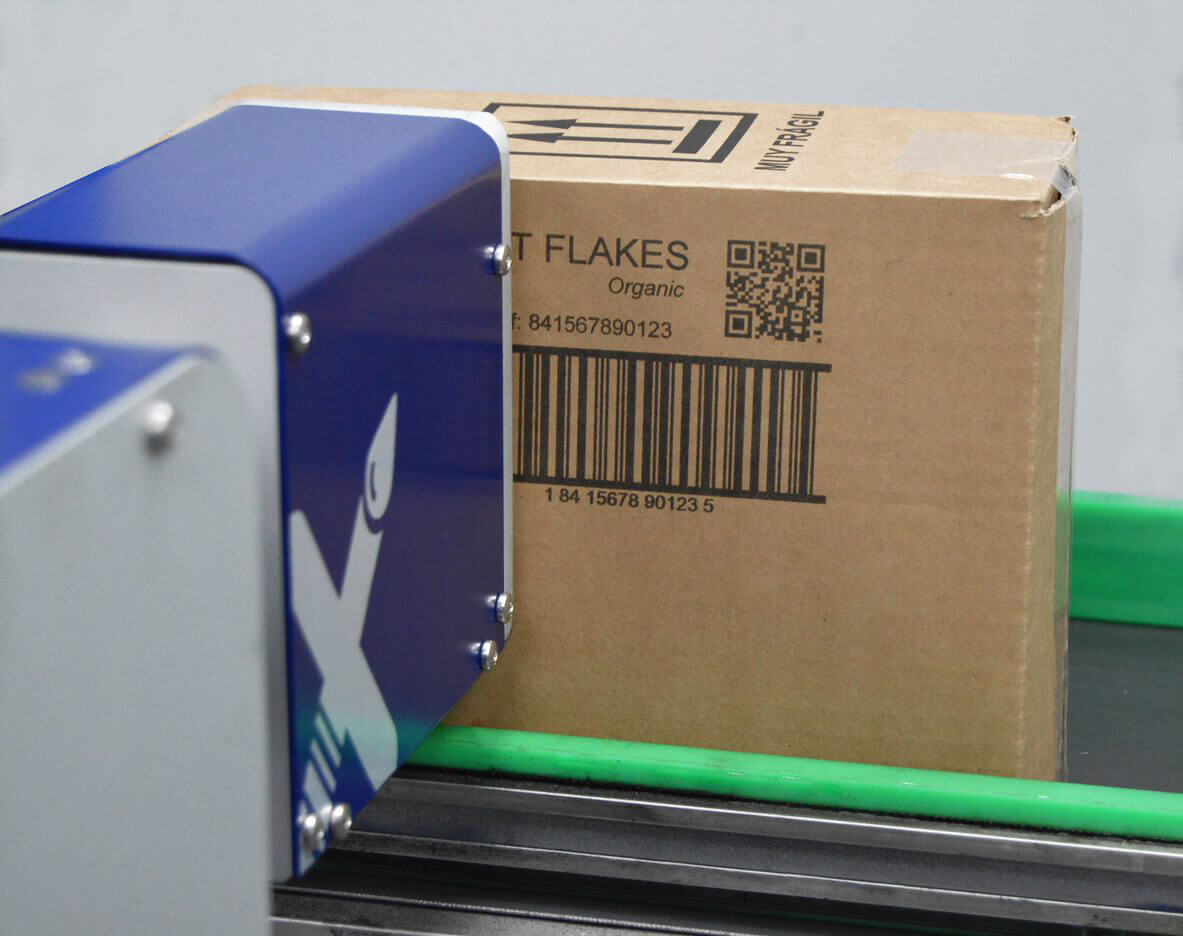

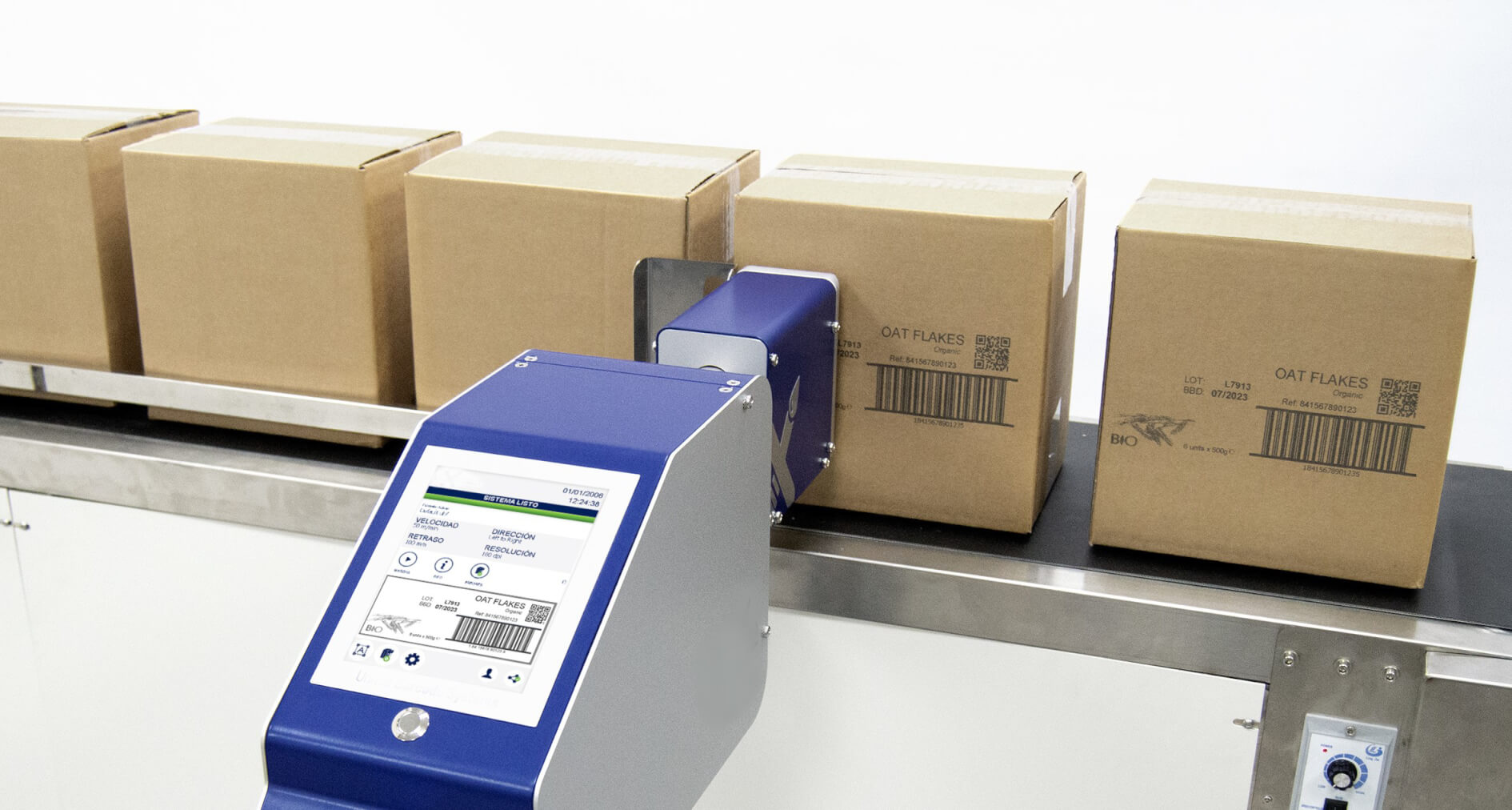

InfinityA530L industrial coding and marking printer prints on porous materials such as paper, cardboard, untreated wood, concrete, brick and cement.
Its oil-based ink provides excellent pigment transfer, resulting in brilliant, intense colours.
6 colours are available: black, cyan, magenta, yellow, red and green.

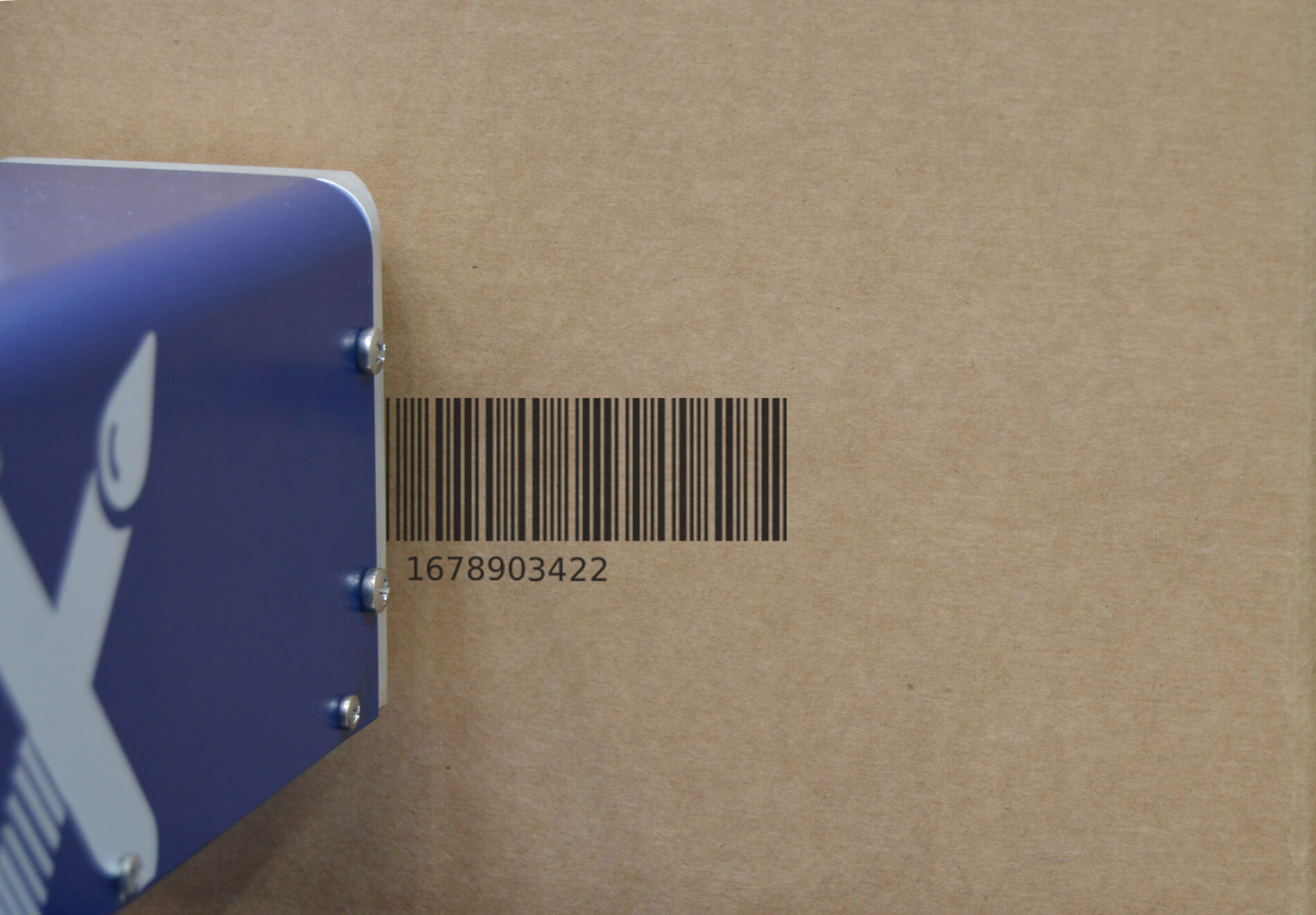

It prints variable data such as barcodes, logos, serial numbers, expiry dates, EAN codes and datamatrix codes up to 72mm high at a maximum speed of 250m/min.
Oil-based inks offer excellent adhesion to porous substrates and increased rub resistance.
From € 5 990
Technical specifications
| Print height | Up to 72 mm |
| Z height | 700 mm |
| Type of ink | Oil-based |
| Grey shades | Up to 7 levels |
| Material type | porous materials |
| Type of tank | Bottle |
| Number of printheads | 1 Seiko printhead |
| Printhead position | Side, top or corner printing from 0 to 90°. |
| Resolution | Vertical resolution: from 90 to 360 dpi ; Horizontal resolution: up to 1440 dpi |
| Print speed | 250 m/min |
| Image format | PDF, JPEG, Ai, PSD |
| Type of integration | Production lines |
Applications
Printing of barcodes, logos, serial numbers, expiry dates, EAN codes or datamatrix, on paper, cardboard, untreated wood, concrete, brick and cement.
