UV ink-based digital coding and marking printer, 72 mm print height

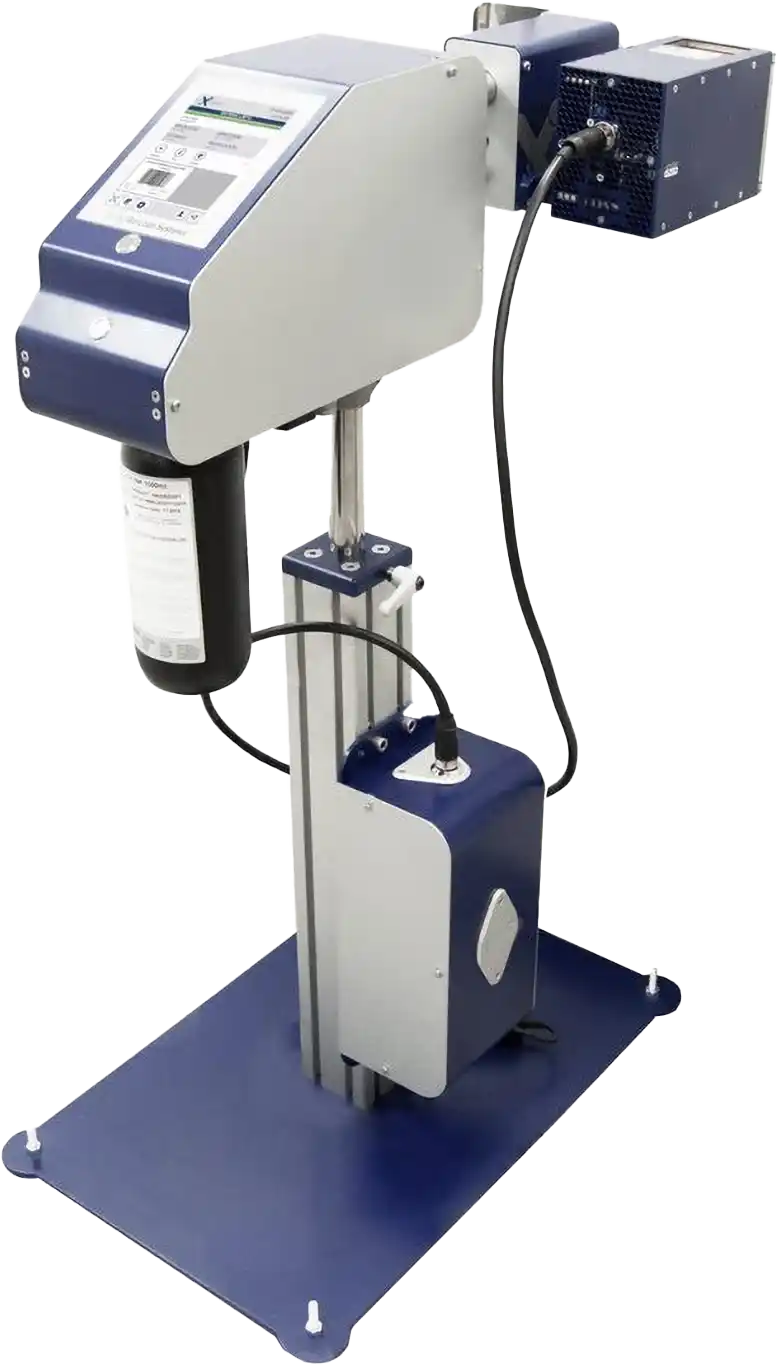

InfinityA530U
InfinityA530U industrial coding and marking printer prints on all types of materials such as plastic, paper, cardboard, lacquered or painted wood, metal, glass and plywood, using UV-based ink that dries immediately and requires zero maintenance.
With a print height of up to 72 mm, you can print all your barcodes, logos, serial numbers, best-before dates, EAN codes and datamatrix codes.

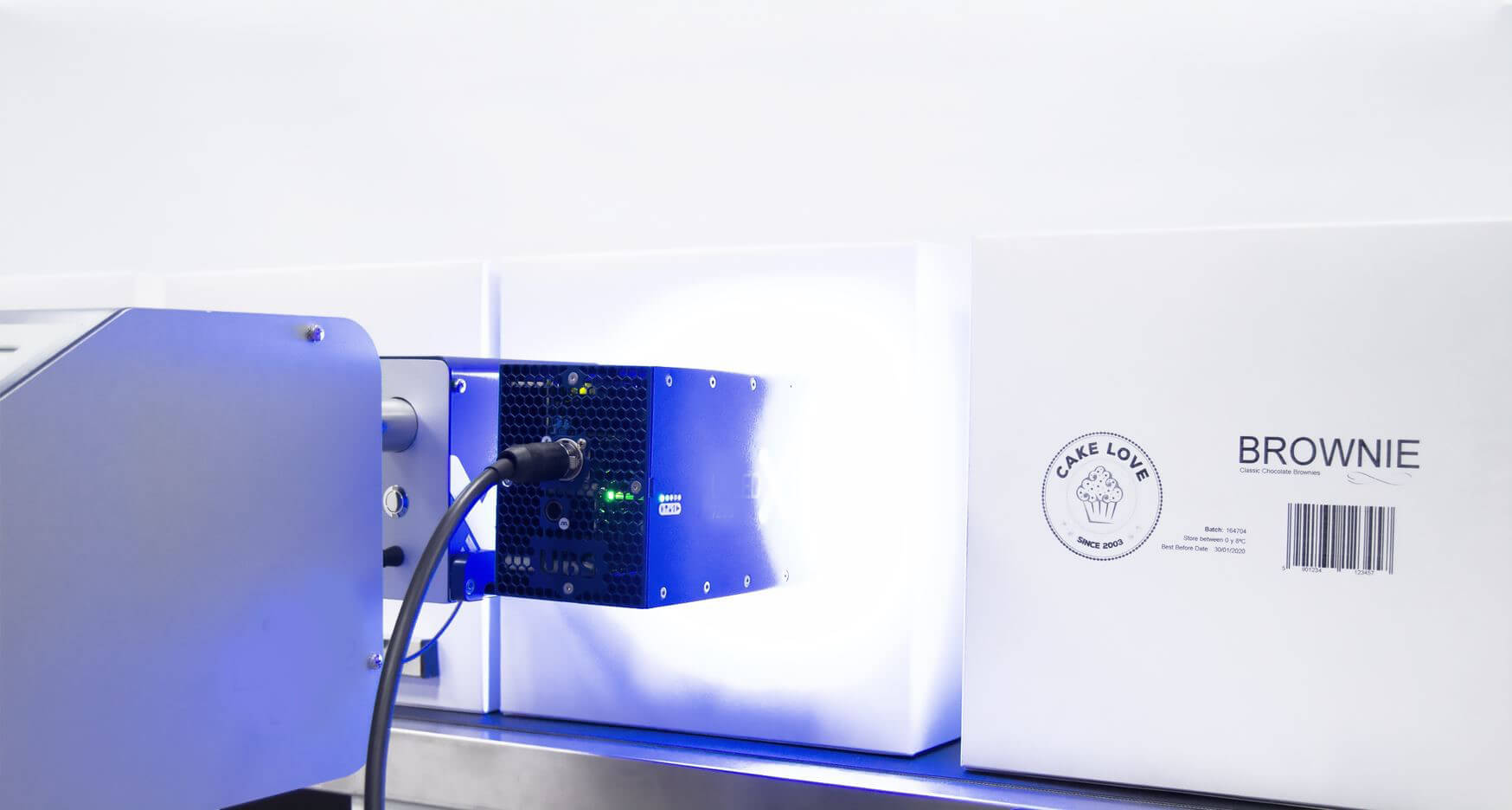

Perfectly integrated into your production line, its 250 m/min print speed is a real asset for achieving high production rates.
Immediate drying for increased productivity.
Zero maintenance, XXL print height.
| Print height | Up to 72 mm |
| Z height | 700 mm |
| Type of ink | UV-based |
| Grey shades | Up to 7 levels |
| Material type | Any type of support |
| Type of tank | Bottle |
| Number of printheads | 1 Seiko printhead |
| Printhead position | Side, top or corner printing from 0 to 90°. |
| Resolution | Vertical resolution: from 90 to 360 dpi ; Horizontal resolution: up to 1440 dpi |
| Print speed | 250 m/min |
| Image format | PDF, JPEG, Ai, PSD |
| Type of integration | Production lines |
Printing of barcodes, logos, serial numbers, expiry dates, EAN codes or datamatrix, on plastic: PP, PVC, PET, PS HDPE, LDPE; on paper, cardboard, lacquered or painted wood, metal, glass and plywood.
