High-speed two-colour printing, 4 print heads.
InfinityA534L
InfinityA534L industrial coding and marking printer prints your porous products at speeds of up to 110m/min, giving you optimum printing efficiency.
Its oil-based ink provides excellent pigment transfer on paper, cardboard, untreated wood, concrete, brick and cement, resulting in brilliant, intense colours.
Six standard colours (black, cyan, magenta, yellow, red, green) are available, with others available on request.
Its 72 mm capacity lets you print all your barcodes, logos, serial numbers, best-before dates, EAN codes and datamatrix.
Oil-based inks offer excellent adhesion to porous substrates and increased rub resistance.
| Print height | Up to 72 mm |
| Z height | 700 mm |
| Type of ink | Oil-based |
| Material type | porous materials |
| Type of tank | Bottle |
| Number of printheads | Up to 4 Seiko printheads |
| Printhead position | Side, top or corner printing from 0 to 90°. |
| Resolution | Vertical resolution: 180 dpi ; Horizontal resolution: from 180 to 720 dpi |
| Print speed | 110 m/min |
| Image format | PDF, JPEG, Ai, PSD |
| Type of integration | Production lines |

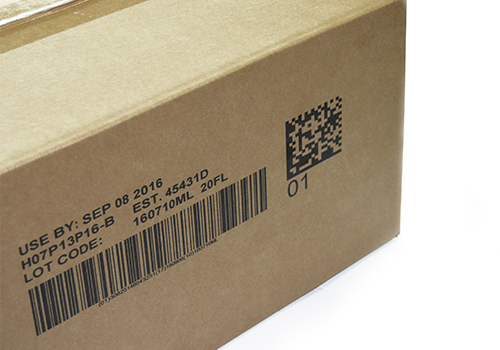

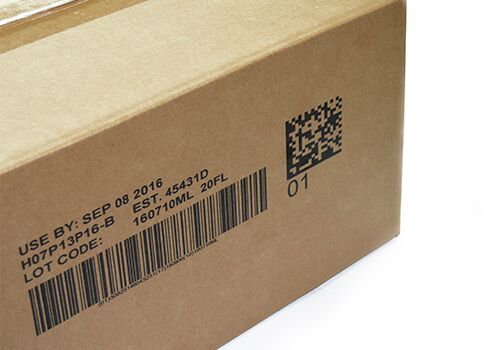

Printing of barcodes, logos, serial numbers, expiry dates, EAN codes or datamatrix, on paper, cardboard, untreated wood, concrete, brick and cement.
