Very high-speed two-colour UV printing, 4 print heads.
InfinityA534U
InfinityA534U

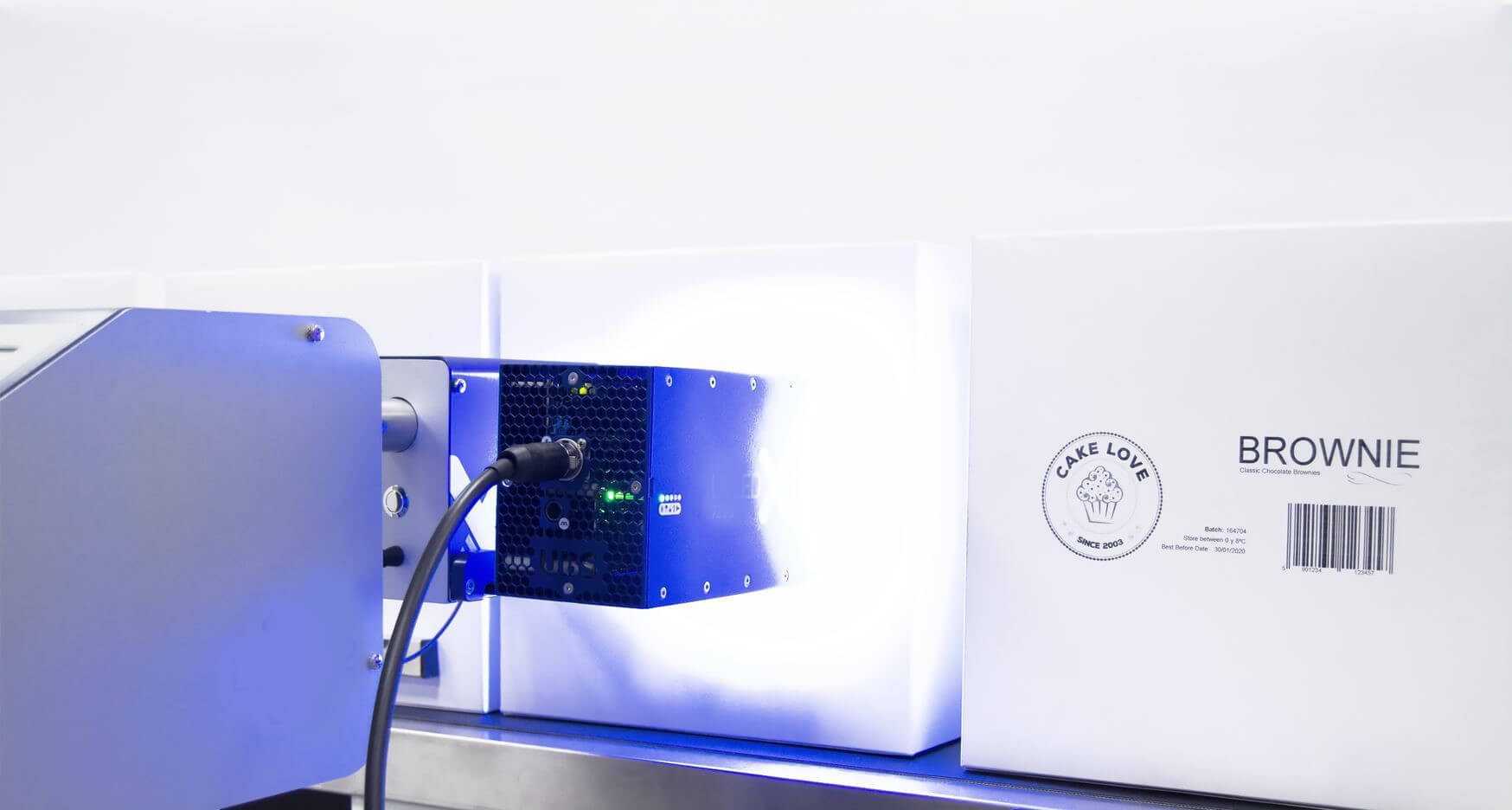

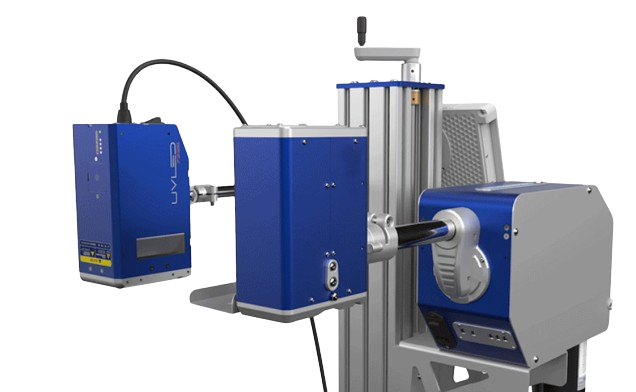

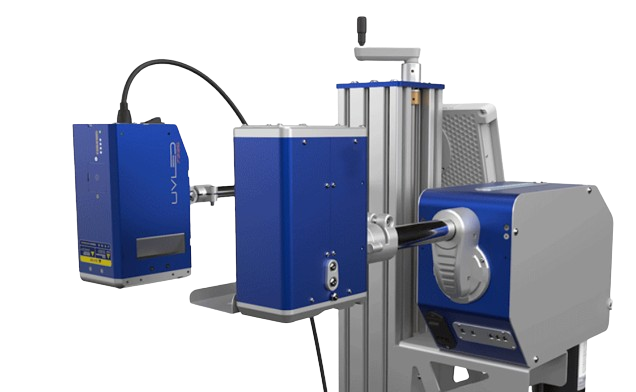

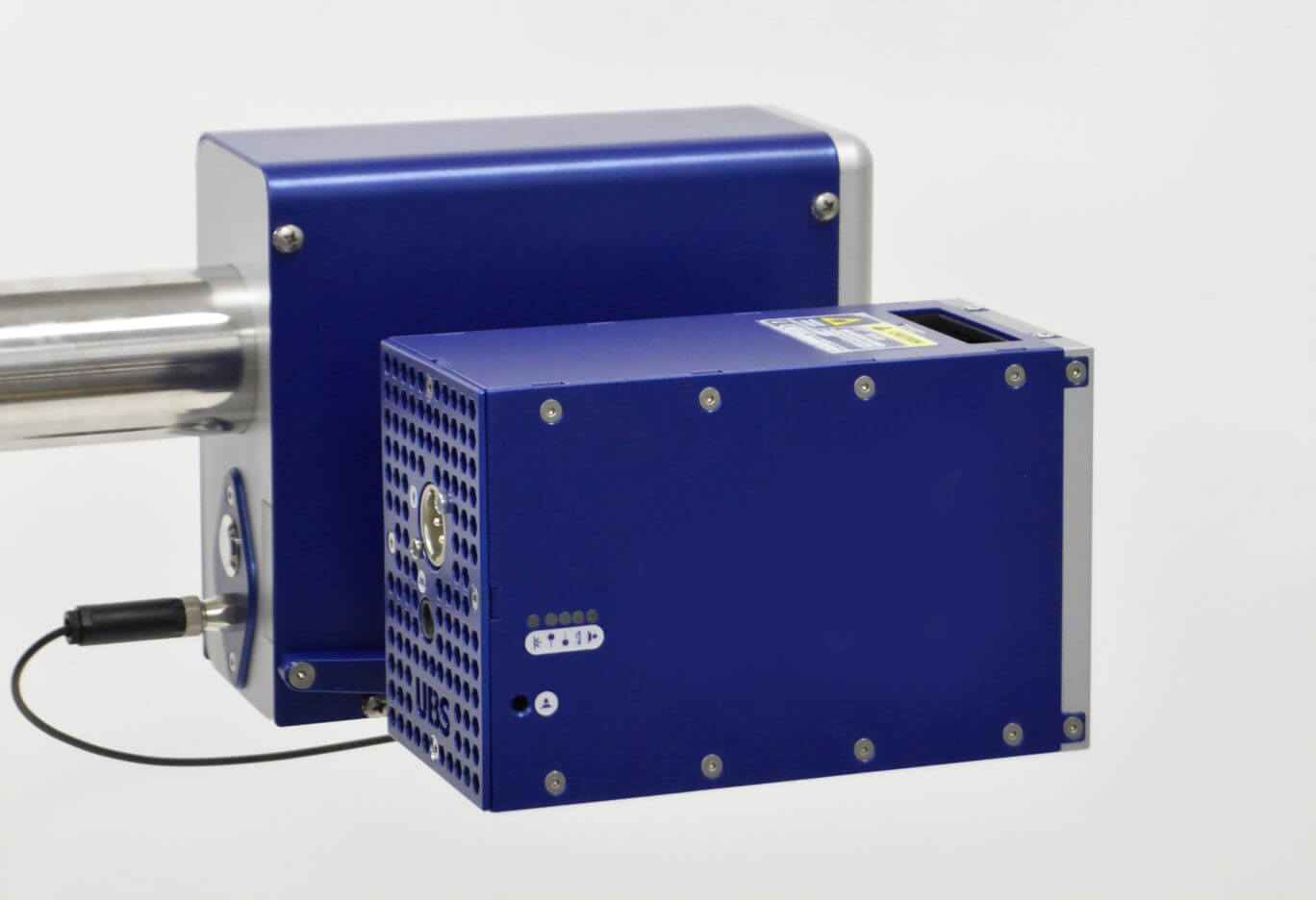

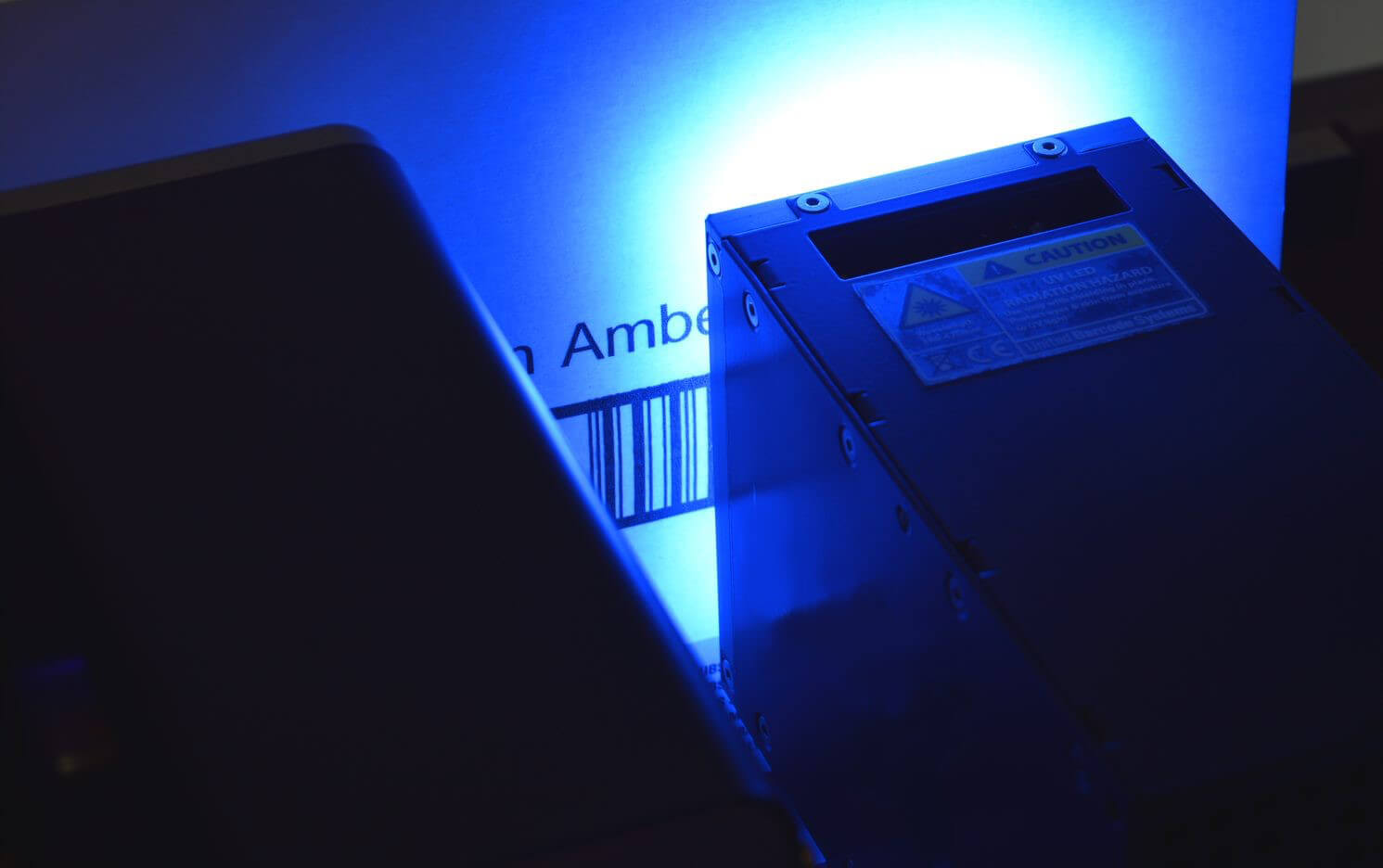

InfinityA534U industrial coding and marking printer decorates up to 4 products simultaneously on all types of materials such as plastic, paper, cardboard, lacquered or painted wood, metal, glass and plywood.
Its 72 mm print height lets you print all your barcodes, logos, serial numbers, best-before dates, EAN codes and datamatrix codes.
Designed for seamless integration into your production line, it reaches a print speed of 110 m/min, guaranteeing high production rates and optimum productivity.
Its UV ink dries instantly and requires zero maintenance.
From € 9 300
Technical specifications
| Print height | Up to 72 mm |
| Z height | 700 mm |
| Type of ink | UV-based |
| Material type | Any type of support |
| Type of tank | Bottle |
| Number of printheads | Up to 4 Seiko printheads |
| Printhead position | Side, top or corner printing from 0 to 90°. |
| Resolution | Vertical resolution: 180 dpi ; Horizontal resolution: from 180 to 720 dpi |
| Print speed | 110 m/min |
| Image format | PDF, JPEG, Ai, PSD |
| Type of integration | Production lines |
Applications
Printing of barcodes, logos, serial numbers, expiry dates, EAN codes or datamatrix, on plastic: PP, PVC, PET, PS HDPE, LDPE; paper, cardboard, lacquered or painted wood, metal, glass and plywood.
