High-precision digital printing platform for R&D process development and prototyping.

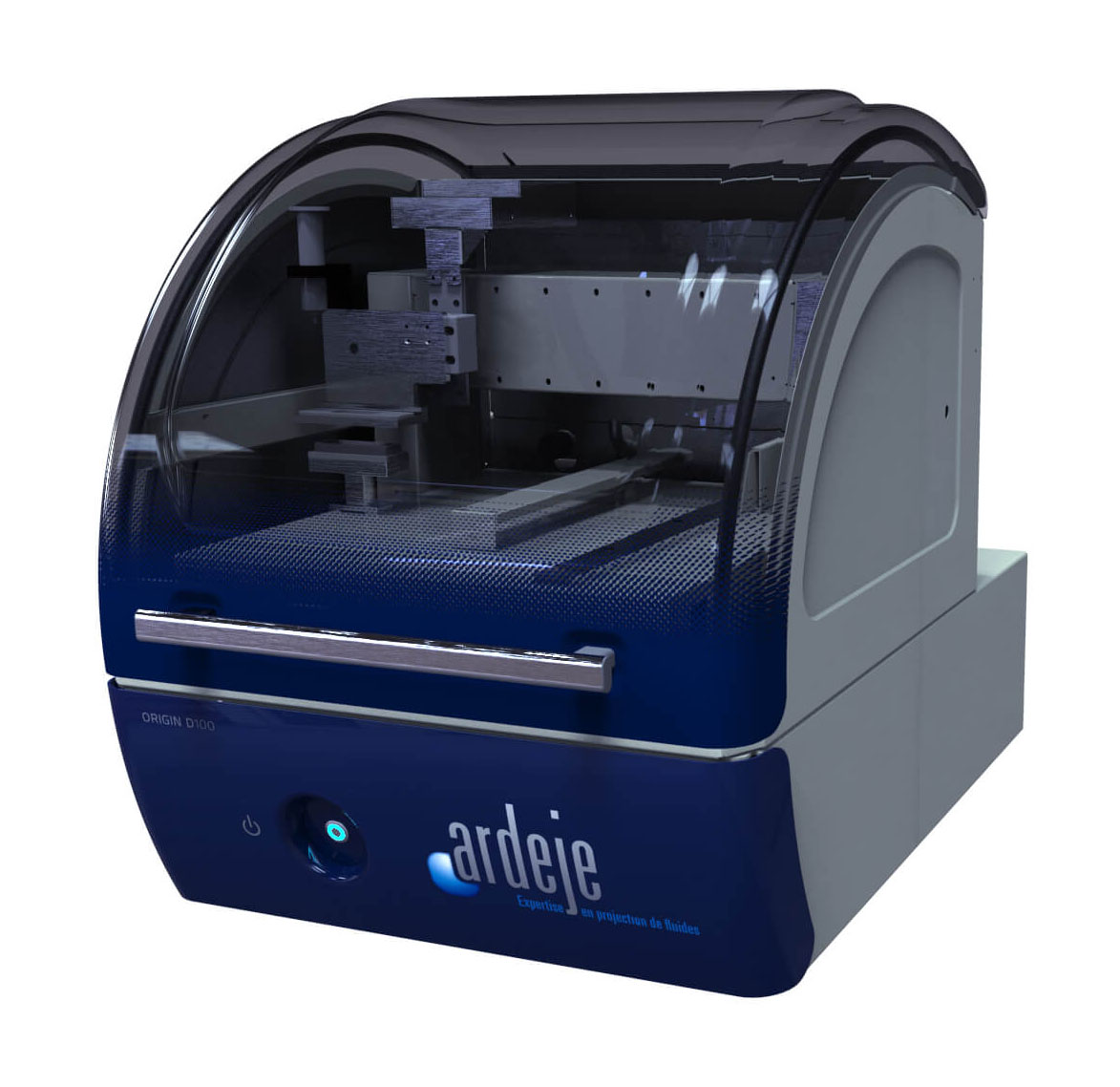

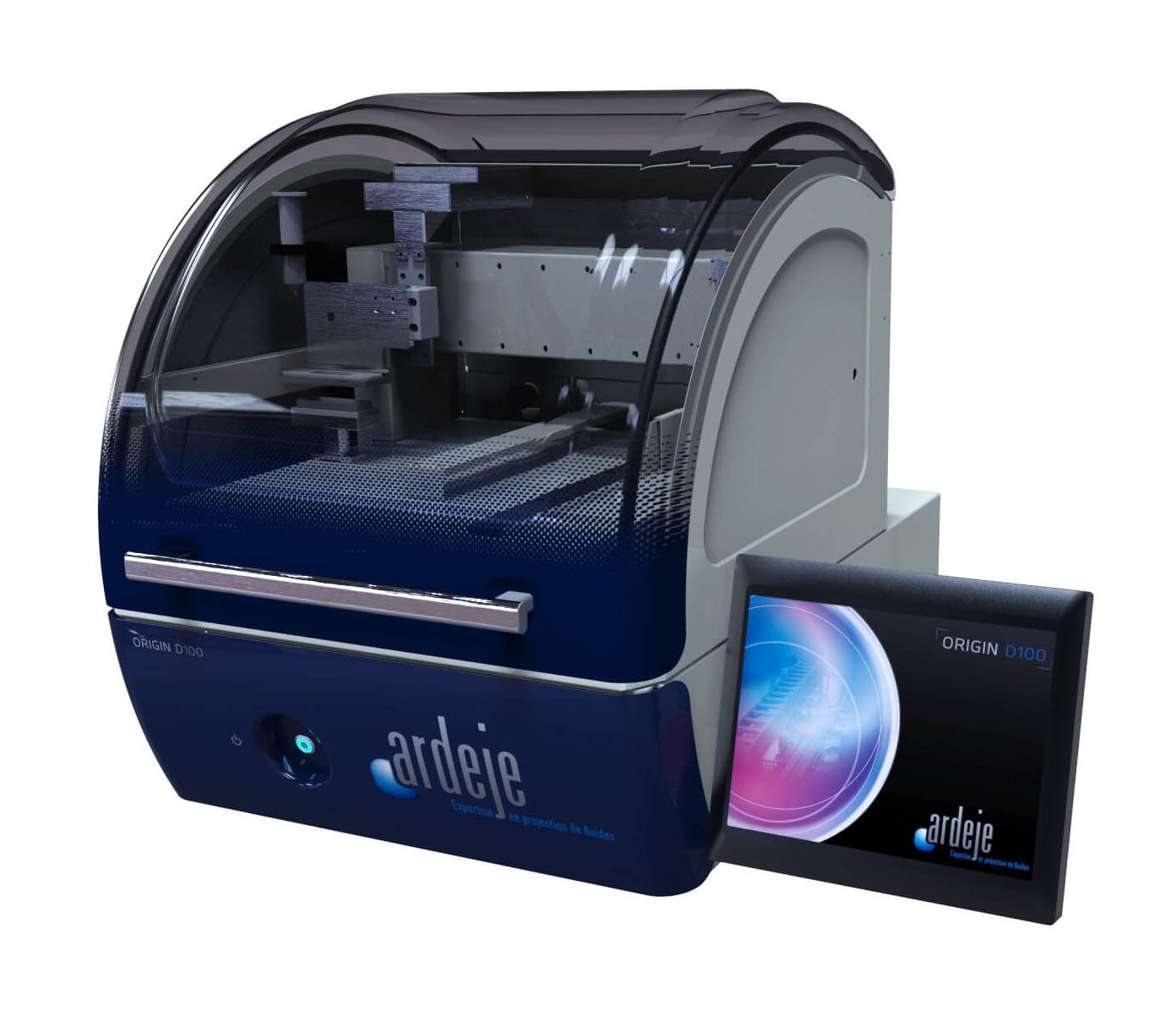

OriginD100
From ink deposition to functional material deposition, the OriginD100 is the most efficient equipment on the market for implementing your innovative DOD piezo digital printing projects.
This development and prototyping platform accommodates all types of DOD piezo printheads, giving you access to the widest combination of printing strategies on the market. Using only industrial printheads, the OriginD100 enables you to transpose all your inventions directly into a production line.
The OriginD100 can also be fitted with a wide range of additional options: heat platen, theta, automatic cleaning, automatic feeder, visudrop, optical camera, UV dryer, fluid recirculation system.
The most effective tool for industrialisation! Designed as an industrial laboratory tool, the results of the studies carried out using the OriginD100 printer reduce the time to market by enabling industrial solutions to be scaled up directly.
| Print surface | 285 x 330 mm Depending on the print head |
| Z height | Up to 34 mm |
| Type of axis | X, Y and Z |
| Axis repeatability | X = ± 5 μm ; Y = ± 5 μm |
| Drop repeatability | ± 20 μm |
| Material type | Any type of support |
| Type of fluid | From 1 to 4 fluids. |
| Type of tank | Syringe |
| Number of printheads | Up to 2 controllable heads. All types of head. |
| Print speed | 100 mm/s |
| Resolution | Up to 2400 dpi |
| Image format | PDF, TIFF, JPEG, Ai, PSD |
| Operating environment | Depending on fluid type |
| Energie | 100 - 240 VAC ; 50/60 Hz ; P = 1000 W |
| Dimensions | 990 x 690 x 825 mm |
| Weight | 80 Kg |
| Options | Advanced print strategy: interlaced scan mode, free programmable resolution; Multidrop; Greyscale management; Sub-module control; Automated ink supply and cleaning; Automated maintenance. |
The multimodality of the OriginD100 R & D platform is a major asset in the success of your innovation projects. Here are some applications carried out as part of innovation projects implemented by our customers :

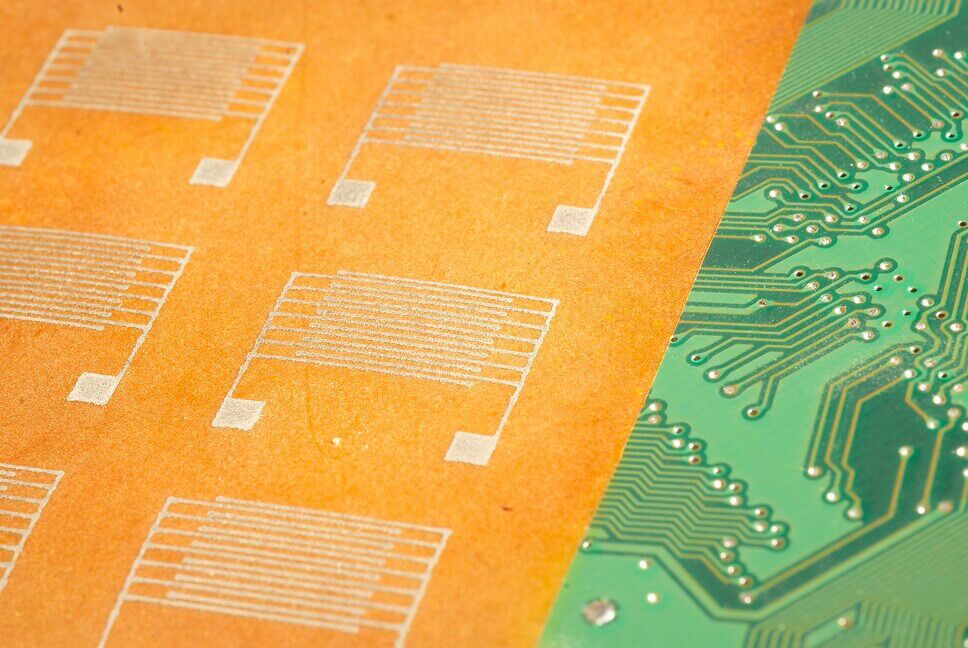

Silver ink :
- Electronic tracks
- Antennas
- RFID tags
- Antistatic tracks
Carbon nanotube ink :
- Sensors
PEDOT / PSS ink (organic semiconductor) :
- Semi-transparent conductive tracks
- OPV / OLED interface layers
Quantum dots printing :
- QLED printing
Sol-gel printing :
- Graphic effects
- Mechanical resistance
Enzyme printing :
- Sensors in the medical field
