The most scalable prototyping platform on the market.

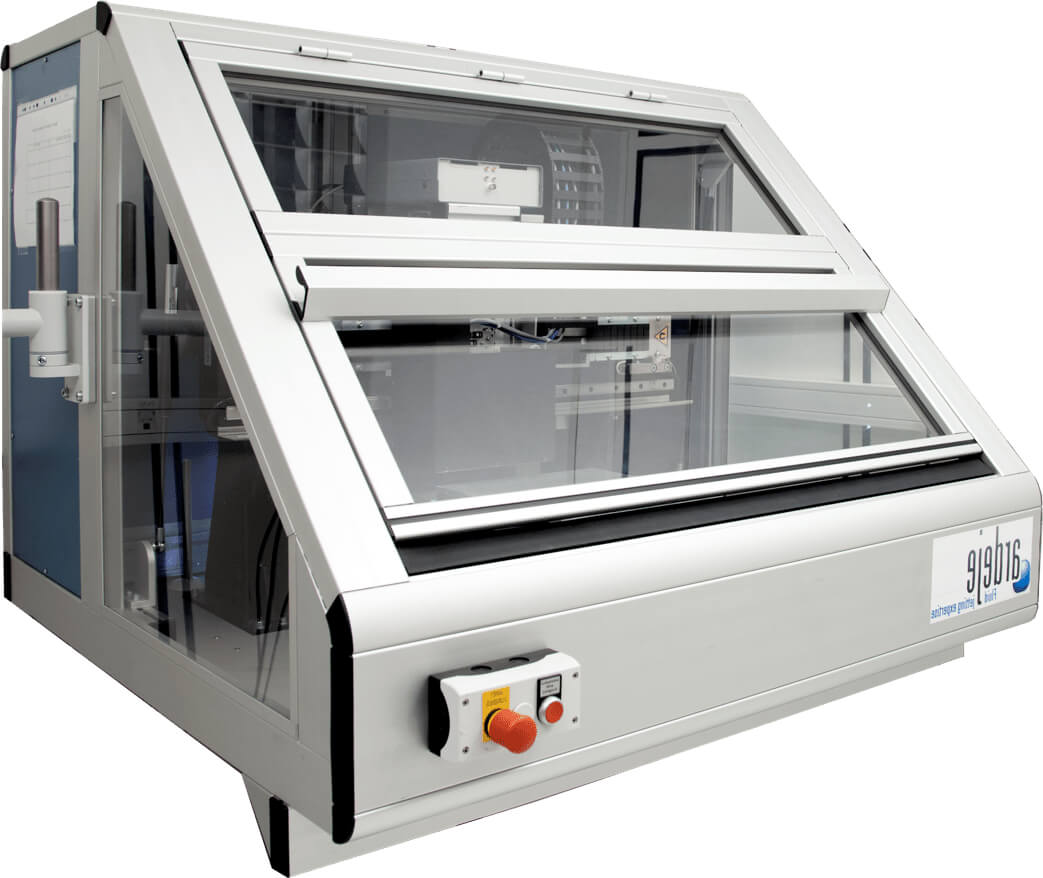

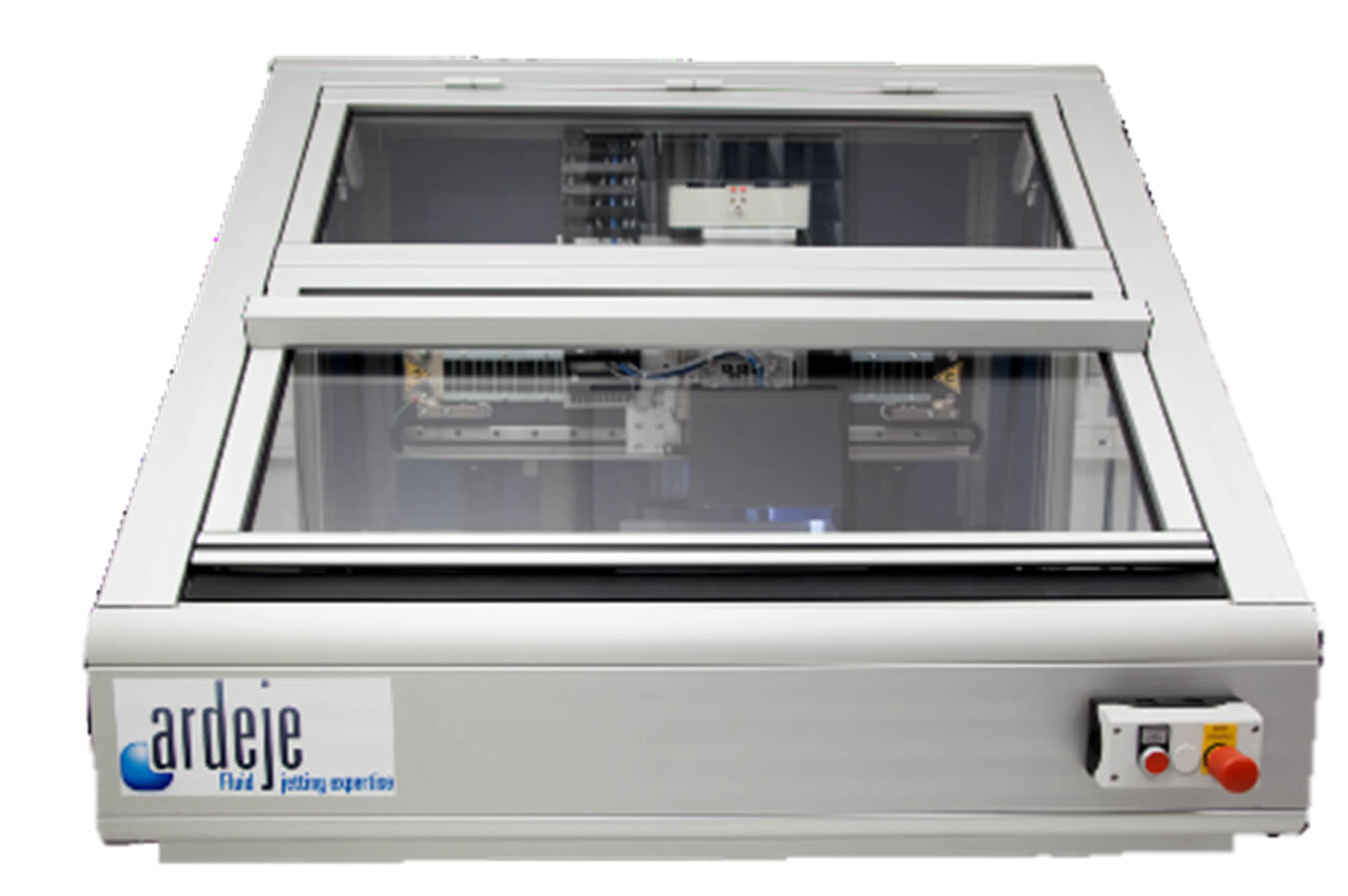

OriginD400

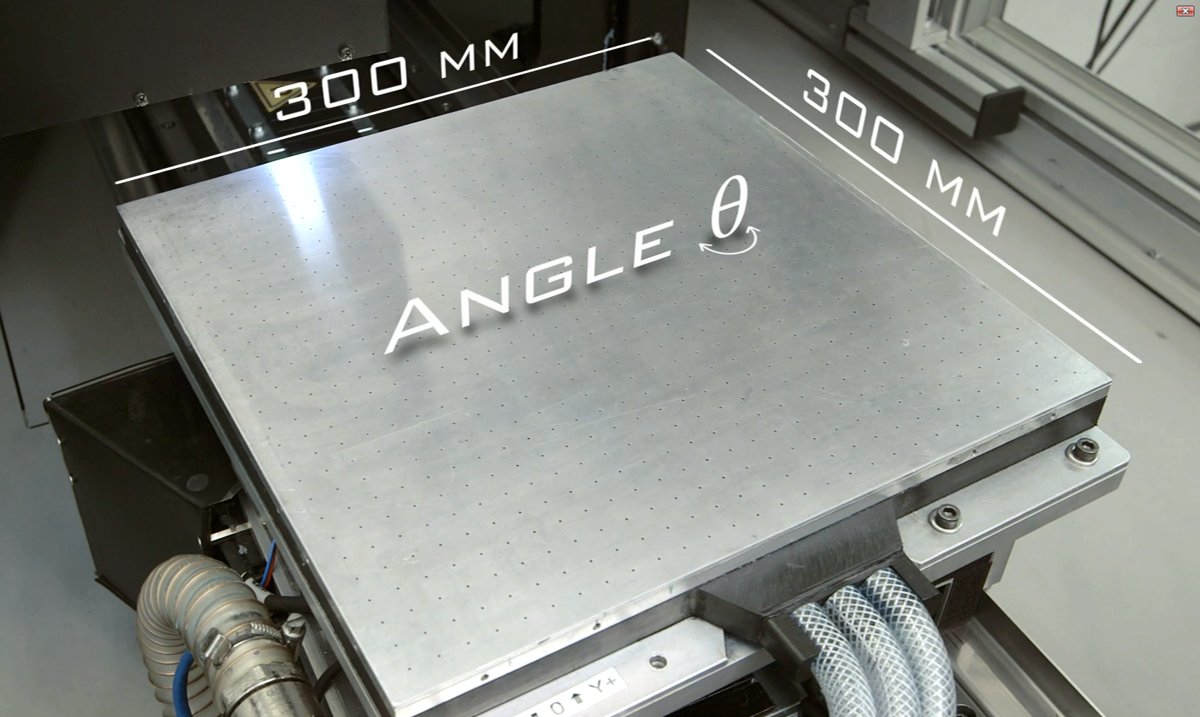

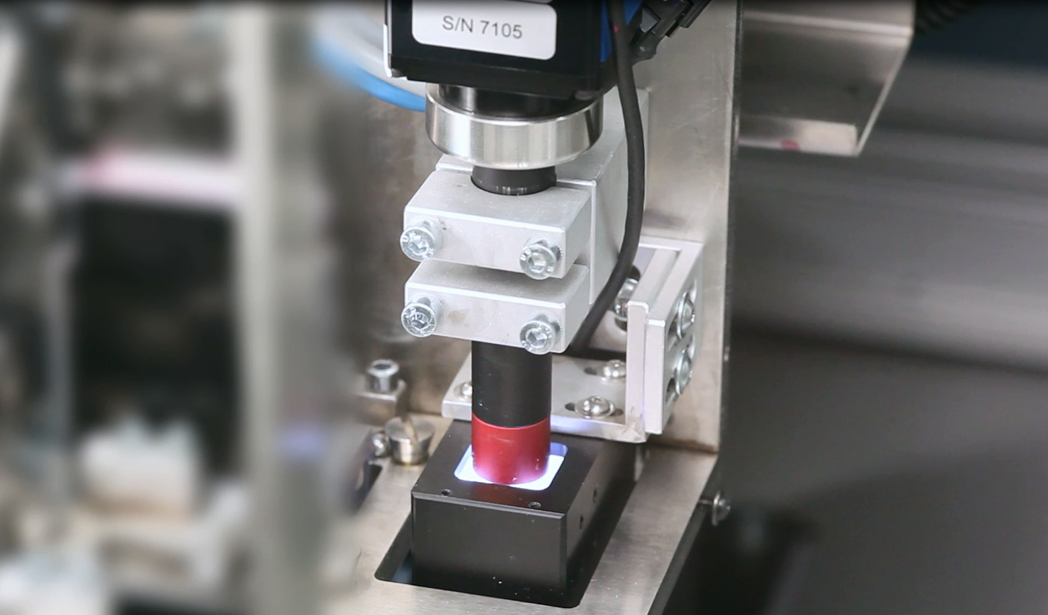

This prototyping platform has 5 major assets: 5μ accuracy in X, Y, Z and θ, a print speed of up to 300mm/s, a theta axis, the possibility of mounting 4 heads and a high-performance camera interfaced with the print controls.
The OriginD400 laboratory equipment can accommodate a multitude of inks and other functional fluids deposited with high precision on substrates up to 80mm thick.
At the heart of innovation, the OriginD400 enables you to implement disruptive technological changes by researching complex processes.
Controlled by MatPrintLab software, the OriginD400 is also extremely user-friendly.
OriginD400 is the ideal tool for researchers whose projects depend on the control of numerous parameters, each more precise than the last.
| Print surface | 300 x 300 mm Depending on the print head |
| Z height | Up to 34 mm |

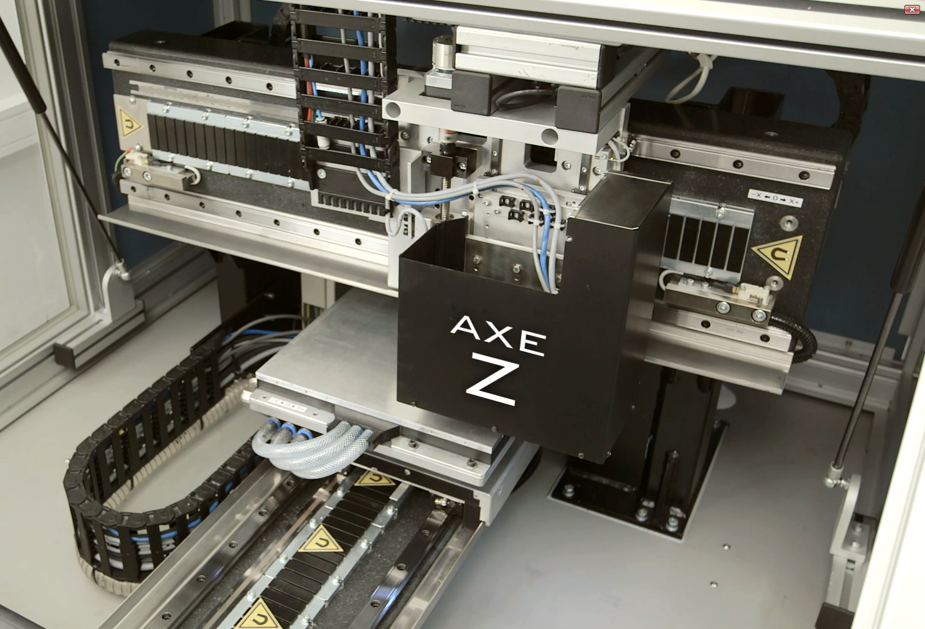

| Type of axis | X, Y et Z and Ө |
| Axis repeatability | X = ± 5 μm ; Y = ± 5 μm ; Ө = ± 5 μm |
| Material type | Any type of support |
| Type of fluid | From 1 to 8 fluids. |
| Type of tank | Syringe |
| Number of printheads | Up to 4 controllable printheads. All types of printheads. |
| Print speed | 300 mm/s |
| Resolution | Depending on the printhead selected |
| Image format | PDF, TIFF, JPEG, Ai, PSD |
| Operating environment | Depending on the type of fluid |
| Energie | 100 - 240 VAC ; 50/60 Hz ; P = 1500 W |
| Dimensions | 1200 x 1200 x 1500 mm |
| Weight | 300 Kg |
The multimodality of the OriginD100 R & D platform is a major asset in the success of your innovation projects. Here are some applications carried out as part of innovation projects implemented by our customers :
Silver ink :
- Electronic tracks
- Antennas
- RFID tags
- Antistatic tracks
Carbon nanotube ink :
- Sensors
PEDOT / PSS ink (organic semiconductor) :
- Semi-transparent conductive tracks
- OPV / OLED interface layers
Quantum dots printing :
- QLED printing
Sol-gel printing :
- Graphic effects
- Mechanical resistance
Enzyme printing :
- Sensors in the medical field
